Hach DR 5000 Instruction Sheet

Instruction Sheet
DR 5000 Pour-Thru Cell Kit Installation

Safety Information

Please read this entire document before unpacking, setting up, or operating this
equipment. Pay attention to all danger and caution statements. Failure to do so could
result in serious injury to the operator or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired, do not use or
install this equipment in any manner other than that specified in this document.
Use of Hazard Information
Important Note: Indicates a situation which, if not avoided, may cause damage to the
instrument. Information that requires special emphasis.
Note: Information that supplements points in the main text.
Precautionary Labels
Read all labels and tags attached to the instrument. Personal injury or damage to the
instrument could occur if not observed. A symbol, if noted on the instrument, will be
included with a danger or caution statement in the manual.
Electrical equipment marked with this symbol may not be disposed of in European public disposal systems after
12 August of 2005. In conformity with European local and national regulations (EU Directive 2002/96/EC),
European electrical equipment users must now return old or end-of life equipment to the Producer for disposal at no
charge to the user.
Note: For return for recycling, please contact the equipment producer or supplier for instructions on how to return
end-of-life equipment, producer-supplied electrical accessories, and all auxiliary items for proper disposal.

General Information

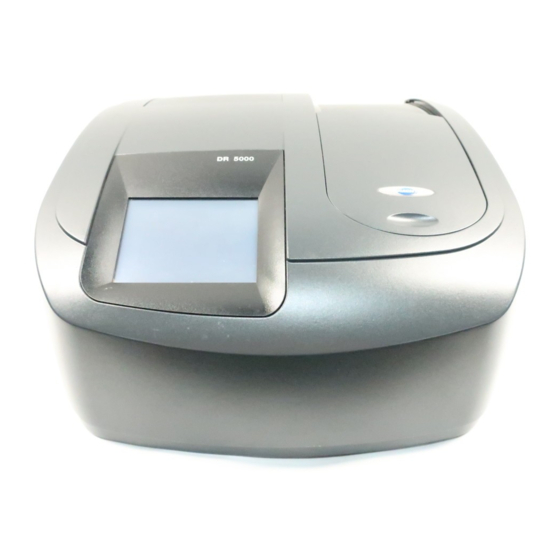

The Pour-Thru Cell Kit is an optional accessory for the DR 5000 Spectrophotometer. The
Pour-Thru cell improves measurement accuracy, as zeroing, measurements and
measurement comparisons are carried out under the same optical conditions. As the
samples all flow through the same cell, errors attributable to the different optical
characteristics of individual cells are excluded. The Pour-Thru is designed to allow the
samples to be introduced into the cell without having to handle the cell in any way.
There are three types of Pour-Thru cells; a 1-inch cell, 1-cm cell and a 5-cm cell. Only the
quartz cells (1 cm and 5 cm) can be used over the entire wavelength range. The 1-inch
Pour-Thru cell can be used in the visible spectrum (340 to 900 nm).

Specifications

Specifications are subject to change without notice.
Available path lengths
Wavelength range
Rinsing volume
1-inch or 1-cm or 5-cm
190 to 1100 nm
1-inch cell can only be used in the visible spectrum (340 to 900 nm)
At least 20 mL for the 1-inch path length
At least 10 mL for the 1-cm path length
At least 20 mL for the 5-cm path length
DOC272.53.90090
1
