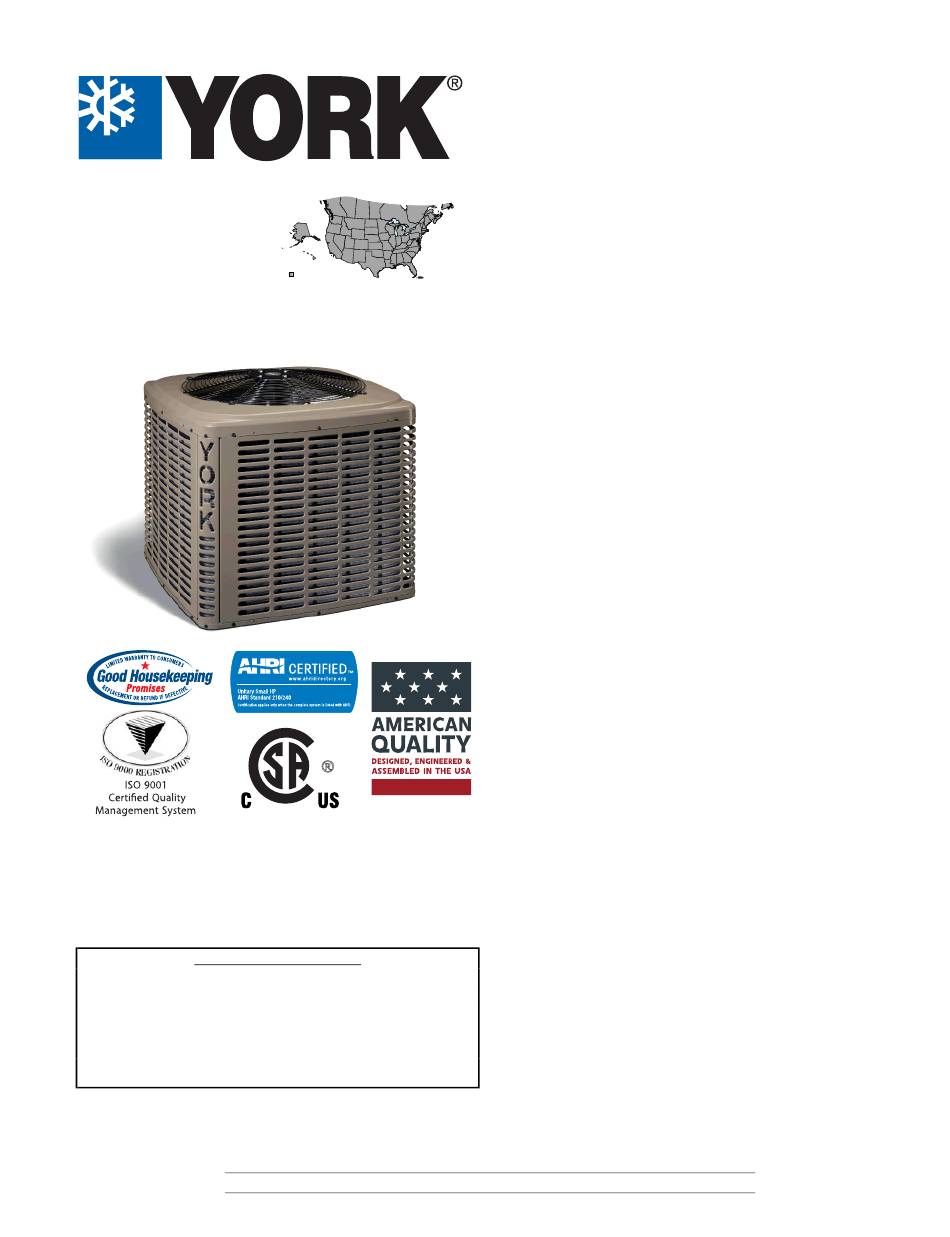

Technical Guide
LX SERIES
SPLIT-SYSTEM
HEAT PUMPS
14 SEER - R-410A - 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: YHJD18 THRU 60
Due to continuous product improvement, specifications are sub-
ject to change without notice.
www.upgnet.com
Visit us on the web at
www.york.com
and
Additional rating information can be found at
www.ahridirectory.org
W W A A R R R R A A N N T T Y Y S S U U M M M M A A R R Y Y * *
Standard 5-year limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-year limited parts warranty when product is
registered online within 90 days of purchase for replacement or
closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed
®

DESCRIPTION

The 14 SEER Series unit is the outdoor part of a versatile cli-
mate system. It is designed with a matching indoor coil compo-
nent from Johnson Controls Unitary Products. Available for
typical applications this climate system is supported with acces-
sories and documents to serve specific functions.

FEATURES

• Small Footprint- The compact footprint is a perfect fit for any
application.
• Quality Condenser Coils- The coil is constructed of copper
tubing and enhanced aluminum fins for increased
performance.
• Coil Protection - Coils are protected from damage by a slot-
ted, stamped steel coil guard.
• Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. A factory installed liquid line filter-drier further pro-
tects the compressor against moisture and debris.
• Environmentally Friendly Refrigerant - The next genera-
tion refrigerant R-410A delivers environmentally friendly per-
formance with zero ozone depletion.
• Durable Finish - The cabinet is made of G90-equivalent
galvanized steel, finished in a durable champagne colored
powdercoat. The coated steel wire fan guard and pre-treated,
galvanized steel chassis components resist corrosion and
rust creep.
• Lower Installed Cost - Installation time and costs are re-
duced by easy power and control wiring connections. The
unit is factory charged for a 15-foot lineset. The small base di-
mension means less space is required on the ground or roof.
• Top Discharge - Warm air from the top mounted fan is blown
up, away from the structure and any landscaping. This allows
compact location on multi-unit applications.
• Low Operating Sound Level - The upward air flow carries
the normal operating noise away from the living area. The rig-
id top panel effectively isolates any motor sound. Isolator
mounted compressor and the condenser coil muffle the nor-
mal fan motor and compressor operating sounds.
• Low Maintenance - Long life, permanently lubricated motor-
bearings need no annual servicing.
• Easy Service Access - Fully exposed refrigerant connec-
tions and a single panel covering the electrical controls make
for easy servicing of the unit.
• Secured Service Valves - Secured, re-usable service valves
are provided on both the liquid and vapor sweat connections
for ease of evacuating and charging.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
571209-YTG-F-0615
