Horizontal Airflow Direction Control

8.9.1. Auto Control

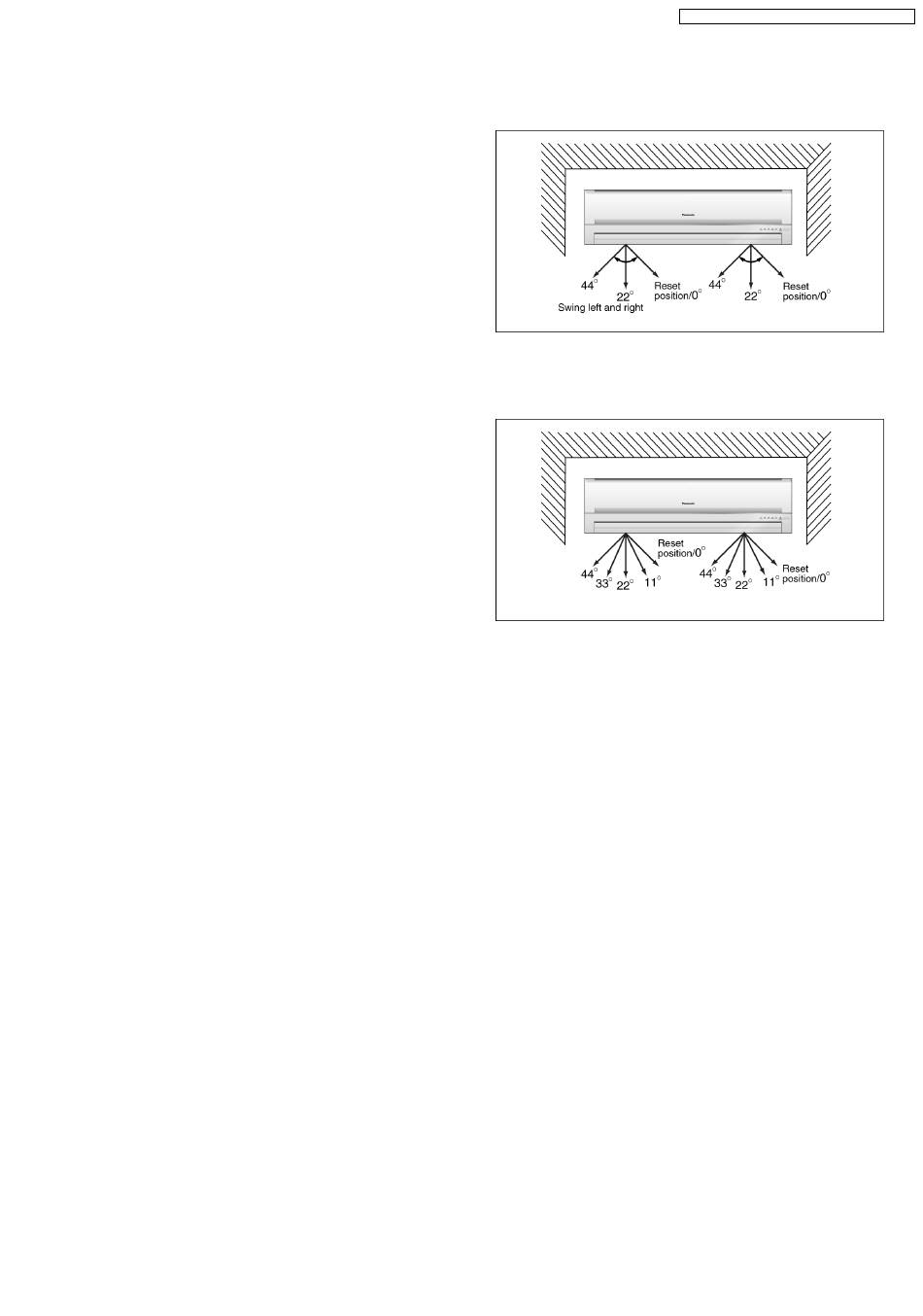

• When the horizontal airflow direction is set to Auto using the
remote control, the vanes swings left and right as shown in
the diagram.
• When stopped with remote control, the discharge vane is
reset, and stop at the reset position.
• During Cooling operation or Soft Dry operation, indoor fan
motor may stop to rotate at certain periods. At that
condition, the vane will stop swinging and rest at 22° angle.
8.9.2. Manual Control
• When the horizontal airflow direction is set to Manual using
the remote control, the automatic airflow is released and the
airflow direction vane move left and right in the range shown
in the diagram.
The louver can be adjusted by pressing the button to the
desired vane position.
• When stopped with remote control, the vanes is reset, and
stopped at reset position.
