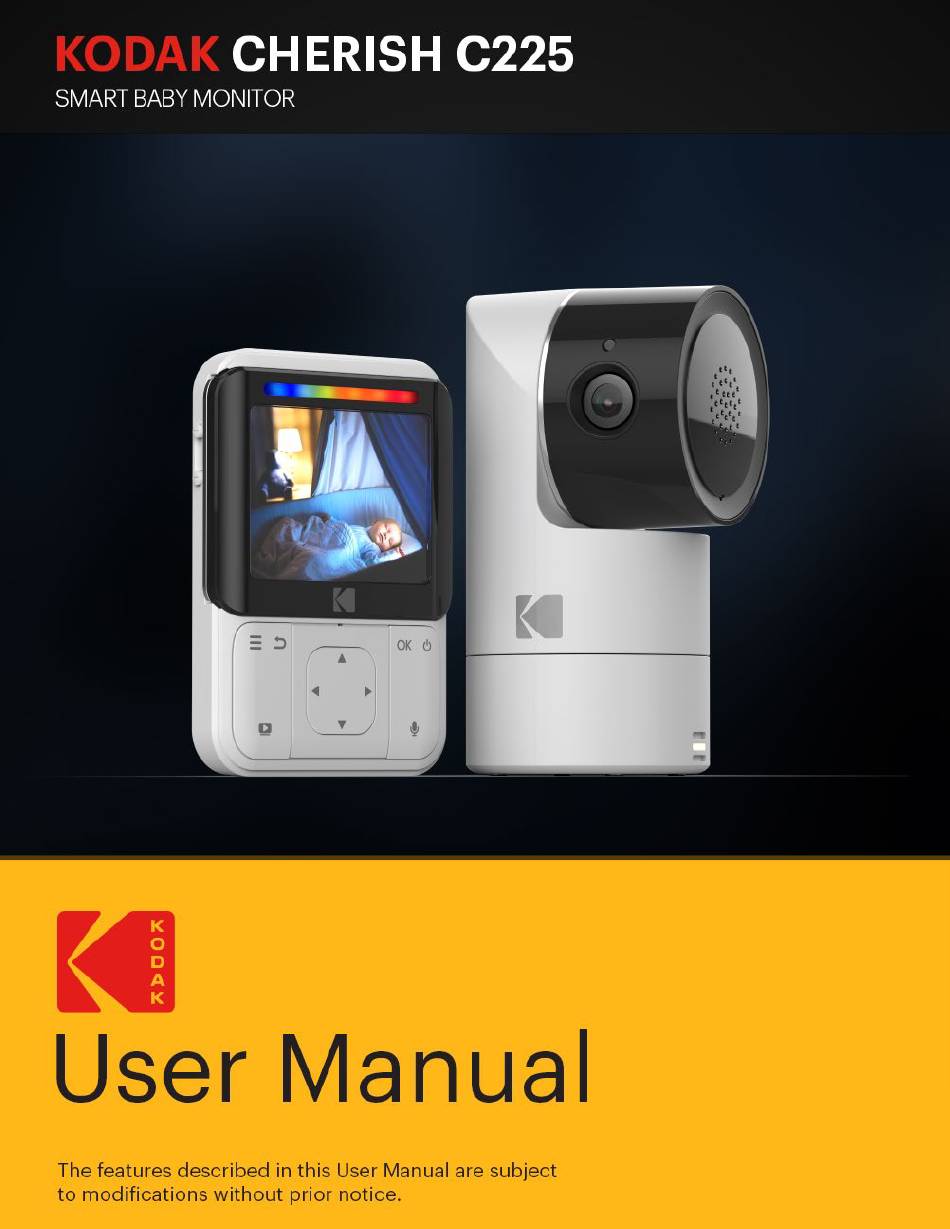

- Page 1 KODAK CHERISH C225 Battery-Operated 2.8” Wi-Fi Video Baby Monitor User Manual The features described in this User Manual are subject to modifications without prior notice.
- Page 2 WELCOME ASSEMBLY Check List: Thank you for buying the KODAK CHERISH C225 Battery Operated 2.8” Wi-Fi Video Baby Monitor. With the Baby Monitor’s Parent Unit or your mobile device, now you can monitor your baby sleeping in another room anywhere, anytime! Please keep your original dated sales receipt.
- Page 3 PARENT UNIT OVERVIEW Keys : Press to return to the previous menu Volume Up Volume Down : Press to enter/exit the Menu mode Battery Status Indicator : Press to turn on/off the LCD display Display (LCD Screen) : Press to confirm Charging Socket : Press and hold to turn on/off the baby unit : Press and hold to speak to your baby...
- Page 4 LED Behaviors for Parent Unit The first LED lights up in The first LED lights When the third and The first LED lights When it’s fully blue when the adapter up in when it’s fourth LED light up up in when it’s charged and the is plugged in and it’s...
- Page 5 BABY UNIT OVERVIEW Camera Lens Charging Socket Speaker SD Card Cover LED Light Pair Button Power Button Page | 8 Baby Unit Overview...
- Page 6 LED Behaviors for Baby Unit Camera is OFF, battery is charging: Solid Red Camera powering up: Solid Blue for first few seconds Camera locating router: Blue blinking every one second Camera connected to router: Solid Blue Camera in pair mode: Blinking Blue & Red Firmware upgrading.
- Page 7 ESSENTIAL GUIDELINES FOR THE INSTALLATION OF YOUR BABY MONITOR • Before using your Baby Unit and the Parent Unit • The use of other 2.4 GHz products (e.g. wireless together, you must first establish a radio link networks [Wi-Fi routers], Bluetooth systems, or between them.
-
Page 8: Table Of Contents
Cleaning 2.1 Baby Unit Power Supply 2.2 Parent Unit Power Supply Troubleshooting 2.3 Registration (Pairing) “KODAK Smart Home” In-App Setup Using the Baby Monitor Monitoring Your Baby Via App 3.1 Setting Up 3.2 Power On or Off the Baby Unit 3.3 Power On or Off the Parent Unit... -
Page 9: Safety Instructions
1. SAFETY INSTRUCTION • This product is not a toy. Never let children play with it. • This Baby Monitor is not and shall not be deemed WARNING: to be a substitute for responsible adult supervision. • Retain this User’s Guide for future reference. •... -
Page 10: Getting Started
2. GETTING STARTED 2.1 Baby Unit Power Supply 2.2 Parent Unit Power Supply The Baby Unit comes with a built-in Li-ion battery. The Parent Unit comes with a built-in Li-ion battery. Charging the rechargeable battery pack fully before use Charging the rechargeable battery pack fully before use is recommended. -
Page 11: Registration (Pairing)
2.3 Registration (Pairing) The Baby Unit is pre-registered to your Parent Unit. The Parent Unit will auto detect and pair to the You do not need to register it again unless the Baby Baby Unit. Parent Unit will then display live stream Unit loses its link with the Parent Unit. -
Page 12: Using The Baby Monitor
3. USING THE BABY MONITOR Please read these instructions carefully, and be aware that this Baby Monitor is only intended as an aid. It is not a substitute for responsible adult supervision. 3.1 Setting Up 3.2 Power On or Off the Baby Unit •... -
Page 13: Talk Mode
3.4 Talk Mode • Press and hold the TALK button on the parent unit to talk to your baby through the Baby Unit’s loudspeaker. The “TALK” icon will be displayed at the top of the LCD screen. 3.5 Video ON/OFF •... -
Page 14: Parent Unit Options
4. PARENT UNIT MENU OPTIONS Parent Unit Menu Keys Parent Unit Status Bar Take Snapshot/ View Snapshot Add / Delete / View Camera Select Melody to playback on Baby Unit Set Temperature Scale & Adjust Range for Alert Set Brightness on LCD Panel 18:30 Enable Looping for multiple cameras ℃... -
Page 15: Snapshot
4.1 Snapshot 4.2 Add (Pair) a Camera Prerequisite: This feature needs Class 10 SD card to be 4.2.1 Camera Registration inserted in the Baby Unit. Press “ ” for the menu bar. Press “ ” on the Parent Unit for the menu bar. Press “... - Page 16 4.2.2 Delete a Camera 4.2.3 View Camera Press “ ” on the Parent Unit for the menu bar. Press the “ ” button of the Parent Unit for the Press “ ” or “ ” button to select (CAMERA) menu bar. icon , and press “...
-
Page 17: Melody
4.3 Melody 4.5 Temperature Press “ ” on the Parent Unit for the menu bar. Press the “ ” for the menu bar. Press the “ ” or “ ” button until Press “ ” or “ ” button to select (MELODY) , (TEMPERATURE) icon is highlighted. -
Page 18: Brightness
4.6 Brightness 4.8 Zoom Press “ ” on the Parent Unit for the menu bar. Press “ ” for the menu bar. Press the “ ” or “ ” until (ZOOM) is Press “ ” or “ ” button to select highlighted. -
Page 19: Disposal Of The Device (Environment)
5. PROPER DISPOSAL OF THE DEVICE 6. CLEANING YOUR DEVICE When the product comes to the Wipe your Baby Monitor with a slightly moistened or end of its lifecycle, you should not anti-static cloth. Refrain from using cleaning agents or dispose of it with normal household abrasive solvents. -
Page 20: Troubleshooting
7. TROUBLESHOOTING Power Indicator on the Parent Unit does not come on The Battery icon on the Parent Unit flashes • Check whether the Parent Unit is powered on. • Battery pack in the Parent Unit is running low. • Check whether the battery is charged. - Page 21 Battery life in the Parent Unit runs low quickly There is no transmission from the Baby Unit to the • The LCD brightness may be set too high. Try to Parent Unit decrease the brightness level. Refer to section 4.6 •...
-
Page 22: Kodak Smart Home" In-App Setup
Apart from connecting the Baby Unit with the Parent Unit, you can also connect the Baby Unit with your mobile device. Read on for a step-by-step guide. Step 1: Download the “KODAK Smart Home” App To download the “KODAK Smart Home” app: •... - Page 23 Step 2: Create or Login to Your Account If this is your first KODAK Smart Home product, you will If you already have another KODAK Smart Home be asked to create an account. To set up an account: product installed, simply select LOGIN: •...
- Page 24 Baby Monitor near your wireless router with the “KODAK Smart Home” app: • Select Add new device… • Select Baby Series > KODAK CHERISH C225 • The app will then walk you through the setup process Page | 46 KODAK Smart Home...
- Page 25 In the middle of the setup process, you will be For IOS devices, you will have to connect to the required to get your KODAK CHERISH C225 Wi-Fi camera’s Wi-Fi through your Wi-Fi settings of your Baby Monitor into the setup mode. To do this: phone.
- Page 26 Your Baby Monitor should now start pairing with your mobile device automatically: • You will hear “Setup Completed” when the Baby Monitor is successfully paired • You may choose one of the recommended names or rename your Baby Monitor by selecting Custom. Page | 50 KODAK Smart Home...
- Page 27 Step 6: Test Your Baby Monitor The Baby Monitor is now added to the Dashboard of the KODAK Smart Home app: • You may now run a test by clicking on the snapshot view from your desired baby unit in order to access the live view.
-
Page 28: Monitoring Your Baby Via App
After you have created an account and installed • You can pinch outwards to zoom in on the video a baby unit, simply click on the “KODAK Smart image, or pinch inwards to zoom out. Home” app icon to monitor your baby by visiting the dashboard. - Page 29 KODAK Smart Home Icons You may also perform one or more of the following actions by clicking on the MENU icon: Dashboard Menu Tap here to return to the Click to open/close menu “Home” screen Mute Video Gallery Press this button to toggle...
-
Page 30: Grant Access
1. Click on “ ” 3. Click on “ ” Access” under directions on the app which was which is located on Device and click “Save” to located on the the top right add friend Dashboard Page | 58 KODAK Smart Home... - Page 31 1. Click on the email 2. Click “Save” to 4. Click “Remove” 3. Click on “ ” to of the person that save changes to confirm remove friend you’d like to make changes on Page | 60 KODAK Smart Home...
-
Page 32: Further Information
11. FURTHER INFORMATION What does this warranty cover? If your product is not operating properly: • Subject to the exclusions contained below, • Consult this User’s Guide or the Quick Start Guide. eBuyNow warrants that this product or certified • Check out our website: accessory sold for use with this product is www.kodaksmarthome.com... - Page 33 What other limitations are there? • Some jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, • ANY IMPLIED WARRANTIES, INCLUDING or limitation on the length of an implied warranty, WITHOUT LIMITATION THE IMPLIED WARRANTIES so the above limitations or exclusions may not OF MERCHANTABILITY AND FITNESS FOR A apply to you.
- Page 34 EXCLUSIONS FROM COVERAGE • Use of Non-eBuyNow branded Products and Accessories. Defects or damage due to the use of non-eBuyNow branded or certified Products or Accessories or other peripheral equipment are not • Normal Wear and Tear. Regular maintenance, covered. repair and replacement of parts and components •...
-
Page 35: How To Obtain Warranty Service Or Other Information
HOW TO OBTAIN WARRANTY SERVICE OR OTHER INFORMATION? To obtain service or information, please email to These Terms and Conditions constitute the complete support@kodaksmarthome.com. warranty agreement between you and eBuyNow regarding the Products or Accessories purchased You will receive instructions on how to ship the by you, and supersede any prior agreement or Products or Accessories at your expense and risk, representations, including representations made in... -
Page 36: Fcc, Ic And Ce Regulations
FCC, IC AND CE REGULATIONS FCC Part l5 NOTE: This equipment has been tested and found Changes or modifications to this equipment not expressly approved by the party responsible for to comply with the limits for a Class B digital device, compliance could void the user’s authority to operate pursuant to Part 15 of the Federal Communications the equipment. -
Page 37: Warning
WARNING Changes or modifications, to this equipment not Le présent appareil est conforme aux CNR d’Industrie expressively approved by the party responsible for Canada applicables aux appareils radio exempts compliance could void the user’s authority to operate de licence. L’exploitation est autorisée aux deux the equipment. -
Page 38: Ec Declaration Of Conformity
Radio Spectrum: EN300328 V2.1.1 Type of equipment: Smart Baby Monitor EMC: EN301489-17 V3.2.0 Model Name: C225 EN301489-1 V2.2.2 Brand: KODAK Electrical Safety: EN60950-2006+A11+A1+A12+A2 RF Safety: EN62311:2008 complies with the essential protection requirements ErP: EN50564:2011 of RED Directive 2014/53/EU on the approximation... -
Page 39: Technical Specifications
12. TECHNICAL SPECIFICATIONS Baby Unit Parent Unit Camera Sensor color CMOS 1Mpixel Display 2.8” TFT LCD: 360 x 240 720p sensor resolution M12 4G lens FOV 70 5 levels Default: 3 Lens Viewing Angle Brightness Control degrees Volume Control 5 levels Default: 3 Power Adapter Input: 100-240V AC, Temperature and...
