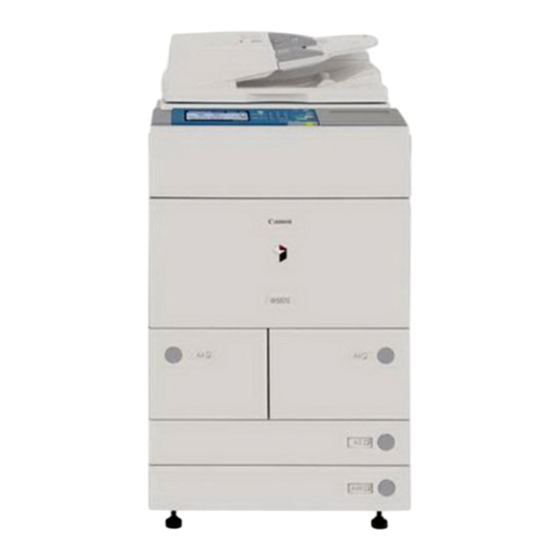

Canon iR6570 Series General Timing Chart/General Circuit Diagram
Canon iR6570 Series General Timing Chart/General Circuit Diagram

Canon iR6570 Series General Timing Chart/General Circuit Diagram

Hide thumbs Also See for iR6570 Series:

Advertisement

General Timing Chart / General
Circuit Diagram
iR6570/5570 Series
Feb 21 2005

Advertisement

loading

Summary of Contents for Canon iR6570 Series

  • Page 1 General Timing Chart / General Circuit Diagram iR6570/5570 Series Feb 21 2005...
  • Page 3 IMPORTANT  This documentation is published by Canon Inc., Japan, to serve as a source of reference for work in the field.  Specifications and other information contained herein may vary slightly from actual machine values or those found in advertising and other printed matter.
  • Page 5: Table Of Contents

    Contents 1 General Timing Chart............................... 1 Copying/Printing (A4, 2 Sheets, Single-Sided, Direct; Right Deck (face-down delivery)) ........1 2 General Circuit Diagram ............................3 Signal Names................................3 General Circuit Diagram ............................6...
  • Page 7: General Timing Chart

    1 General Timing Chart Copying/Printing (A4, 2 Sheets, Single-Sided, Direct; Right Deck (face-down delivery)) iR5570 / iR6570 F-1-1...
  • Page 9: General Circuit Diagram

    2 General Circuit Diagram Signal Names List Of Signals iR5570 / iR6570 T-2-1 Notation Signal name Notation Signal name APKIT_TH_AD AP kit inside temperature detection signal CONTROLLER_FAN_DEETCT controller fan lock detection signal BOTTLE_COVER_SNS_DTC toner bottle door open/closed detection signal CONTROLLER_FAN_H/L controller fan full-speed/half-speed drive signal C1/RDK_SL_ON right deck pickup solenoid drive signal...
  • Page 10 T-2-2 Notation Signal name Notation Signal name HEAT_DISCHARGE_FAN_H/L heat discharge fan full-speed/half-speed drive signal MLT_SL_ON manual feed pickup solenoid drive signal HOP_BOTTLE_ON toner supply motor drive signal MULTI_SENSOR manual feed tray paper detection signal HOP_LIFT_ON toner stirring motor drive signal MULTI_VOLUME manual feed paper width detection signal HOP_TONER_SENSOR...
  • Page 11 T-2-3 Notation Signal name Notation Signal name REVERSE_2 SENSOR reversal 2 paper detection signal SIZE2 original size detection signal 2 REVERSE_A,A*,B,B* reversal motor drive signal A, A*, B, B* T/S_CLEANER-1 transfer separation charging wire cleaner drive signal (forward) REVERSE_SL_ON reversing solenoid drive signal T/S_CLEANER-2 transfer separation charging wire cleaner drive signal (reverse)
  • Page 12: General Circuit Diagram

    General Circuit Diagram General Circuit Diagram (Printer 1/20) iR5570 / iR6570 Leakage breaker Line noise filter ELCB PLG1 Power supply Fixing heater cord power supply PCB Fixing heater To Modular PCB Capacitor PCB Drum heater Drum thermistor Environment control PCB 100/120V ONLY switch 100/120V Line noise filter...
  • Page 13 General Circuit Diagram (Printer 2/20) iR5570 / iR6570 Option power supply PCB DC controller HVT PCB To A512 To A512 To A504 To A512 Motor driver PCB To A518 To A518 to J1021 To 3.5k deck To Finisher DC power supply fan DC power supply PCB to J4013 No used...
  • Page 14 General Circuit Diagram (Printer 3/20) iR5570 / iR6570 DC controller PCB Potential sensor PCB at 120V at 230V To A505 To A507 To A503 to J3005 Fixing heater power supply PCB Potential PCB (3/20) F14-5300-A504 F-2-3...
  • Page 15 General Circuit Diagram (Printer 4/20) iR5570 / iR6570 DC controller PCB To A504 to J4260 To A518 PS54 Toner access cover Sub hopper toner open/closed level sensor Manual feed tray sensor open/closed Toner supply Pre-exposure motor sensor Drum cleaner Developing lamp thermistor Primary Toner stirring motor...
  • Page 16 General Circuit Diagram (Printer 5/20) iR5570 / iR6570 Right deck pickup DC controller PCB solenoid Right deck Left deck lifter motor lifter motor Motor driver PCB To A513 J801DB Cassette 3/4 Vertical lower pickup motor motor Left deck Vertical path pickup motor duplexing Right deck Vertical upper...
  • Page 17 General Circuit Diagram (Printer 6/20) iR5570 / iR6570 DC controller PCB To A504 to J119 To A508 PS45 Fixing thermal switch Fixing web Shutter motor length sensor (6/20) F14-5300-A507 F-2-6...
  • Page 18 General Circuit Diagram (Printer 7/20) iR5570 / iR6570 To A507 to J611 Delivery motor To A509 To A509 To A509 Fixing motor to J251 Fixing web drive PS53 Curl-removing solenoid Shutter HP sensor PS35 PS51 PS52 Internal delivery Claw jam sensor sensor Fixing inlet sensor Fixing outlet sensor...
  • Page 19 General Circuit Diagram (Printer 8/20) iR5570 / iR6570 To A508 To A508 to J251 to J1006 to J1005 To A508 PS46 PS36 Delivery jam sensor External delivery sensor Delivery flapper solenoid Fixing inlet guide Transfer separation Fixing feeding unit drive solenoid detection switch charging wire cleaning motor...
  • Page 20 General Circuit Diagram (Printer 9/20) iR5570 / iR6570 Duplex Left deck horizontal feed paper registration DC controller PCB sensor sensor Duplex PS31 PS33 Flapper Reversal pre- registration sensor 2 solenoid sensor PS38 Duplexing Duplexing PS30 To A518 paper horizontal sensor registration motor PS34 Waste toner...
  • Page 21 General Circuit Diagram (Printer 10/20) iR5570 / iR6570 DC controller PCB Developing cylinder Manual feed Controller clutch pickup clutch Drum motor cooling fan Main motor PS23 Manual feed paper sensor Manual Manual feed tray feed pickup paper width solenoid sensor PCB To A518 To A518 (10/20)
  • Page 22 General Circuit Diagram (Printer 11/20) iR5570 / iR6570 DC controller PCB To A503 To A503 to J4002 HVT PCB To A503 Cassette 3 Cassette 4 Left deck paper width paper width pickup sensor PCB sensor PCB solenoid Primary/Grid Cassette 3 Cassette 4 AC trans paper length paper length...
  • Page 23 General Circuit Diagram (Printer 12/20) iR5570 / iR6570 DC controller PCB To A506 to J2106 Feed fan Shift tray PCB Circulation duct To A518 Fixing heater power supply cooling fan THU1 Cassette 4 Cassette 3 Cassette 4 level sensor lifter motor lifter motor Temperature/humidity sensor...
  • Page 24 General Circuit Diagram (Printer 13/20) iR5570 / iR6570 DC controller PCB PS49 PS47 Right deck Left deck level sensor level sensor Left deck (upper) (upper) pull-off clutch PS10 PS20 Left deck Left deck PS48 Right deck PS50 Right deck lifter sensor re-try sensor open/closed Right deck...
  • Page 25 General Circuit Diagram (Printer 14/20) iR5570 / iR6570 DC controller PCB PS18 Cassette 4 lifter sensor PS17 Cassette 3 lifter sensor PS14 PS27 Vertical Cassette 4 PS26 path 4 paper sensor Vertical paper path 3 sensor paper PS13 sensor Cassette 3 paper sensor PS22 PS16...
  • Page 26 General Circuit Diagram (Printer 15/20) iR5570 / iR6570 DC controller PCB Laser drive PCB BD developing PCB Laser scanner motor Main controller PCB To A521 to J2117 (15/20) F14-5300-A516 F-2-15...
  • Page 27 General Circuit Diagram (Printer 16/20) iR5570 / iR6570 Main controller PCB CC-X card reader Card reader Coin robo NE controller (16/20) F14-5300-A517 F-2-16...
  • Page 28 General Circuit Diagram (Printer 17/20) iR5570 / iR6570 To A513 To A505 Manual feed tray open/closed detection switch Front cover switch Rush-current prevention PCB To A511 To A511 To A507 (M3) J601 J6310 To A510 To A503 to J4004 To A503 (17/20) F14-5300-A518 F-2-17...
  • Page 29 General Circuit Diagram (Printer 18/20) iR5570 / iR6570 Main controller PCB Differential PCB Interface PCB (18/20) F14-5300-A520 F-2-18...
  • Page 30 General Circuit Diagram (Printer 19/20) iR5570 / iR6570 To A516 to J6801 Control panel inverter PCB Control panel keypad PCB LCD1 Control panel CPU PCB Control panel (19/20) F14-5300-A521 F-2-19...
  • Page 31 General Circuit Diagram (Printer 20/20) iR5570 / iR6570 Speaker unit To DC power supply PCB To A503 FAX power supply PCB To Main controller PCB to J1059 FAX PCB Off hook power supply PCB NCU PCB Modular To Main controller PCB to J1030 G3 FAX board (20/20)
  • Page 32 General Circuit Diagram (Reader) iR5570 / iR6570 Lens heater H501 From Printer To ADF Mirror heater H502 Scanner motor M501 Reader unit cooling fan Scanner HP sensor PS502 FM501 ADF open/closed ADF open/closed sensor 2 sensor 1 PS503 PS501 Interface PCB To PC To PC Reader controller PCB...
  • Page 33 Feb 21 2005...
