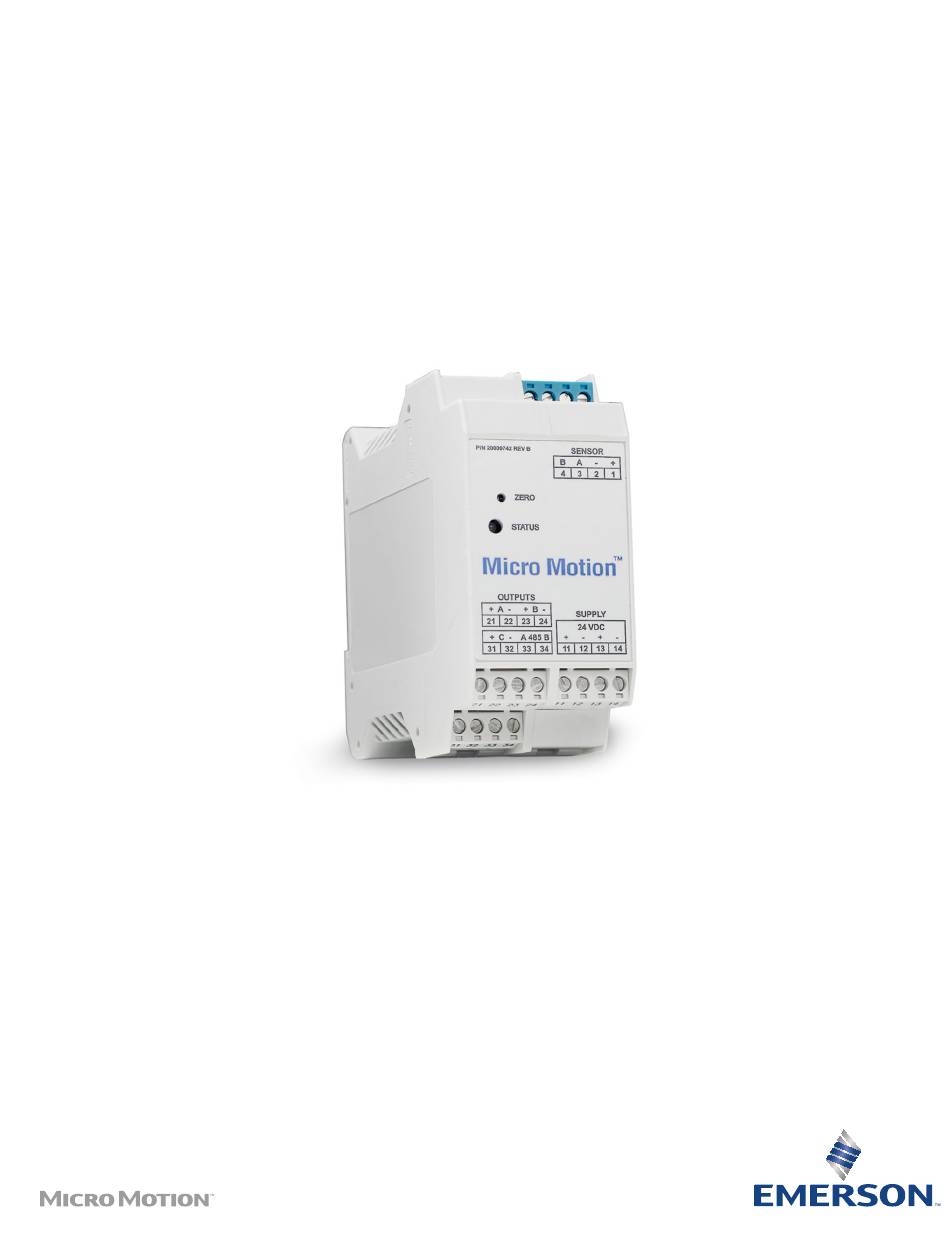

Configuration and Use Manual
MMI-20019038, Rev AB
March 2018
®
Micro Motion
Model 2500 Transmitters with
Configurable Input/Outputs
Configuration and Use Manual

Advertisement

Table of Contents
loading

Related Manuals for Emerson Micro Motion 2500

Summary of Contents for Emerson Micro Motion 2500

  • Page 1 Configuration and Use Manual MMI-20019038, Rev AB March 2018 ® Micro Motion Model 2500 Transmitters with Configurable Input/Outputs Configuration and Use Manual...
  • Page 2 Micro Motion employees. Micro Motion will not accept your returned equipment if you fail to follow Micro Motion procedures. Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion Customer Service department.

  • Page 3: Table Of Contents

    Contents Contents Part I Getting started Chapter 1 Before you begin ......................3 About this manual ......................... 3 Transmitter model code ........................ 3 Communications tools and protocols .................... 3 Additional documentation and resources ..................4 Chapter 2 Quick start ........................5 Power up the transmitter .......................5 Check meter status ........................5 2.2.1...
  • Page 4 Contents 4.5.3 Configure Density Damping ..................41 4.5.4 Configure Density Cutoff ....................42 Configure temperature measurement ..................42 4.6.1 Configure Temperature Measurement Unit ..............42 4.6.2 Configure Temperature Damping ................43 4.6.3 Effect of Temperature Damping on process measurement ........... 44 Configure the petroleum measurement application ..............44 4.7.1 Configure petroleum measurement using ProLink III ............
  • Page 5 Contents 6.4.2 Configure Discrete Output Polarity ................94 6.4.3 Configure Discrete Output Fault Action ................96 Configure the Discrete Input ....................... 97 6.5.1 Configure Discrete Input Action ................... 97 6.5.2 Configure Discrete Input Polarity ................. 99 Configure events ......................... 99 6.6.1 Configure a basic event ....................100 6.6.2 Configure an enhanced event ..................
  • Page 6 Contents Chapter 11 Measurement support ....................141 11.1 Options for measurement support .................... 141 11.2 Use Smart Meter Verification (SMV) ..................142 11.2.1 SMV requirements ...................... 142 11.2.2 SMV test preparation ....................142 11.2.3 Run SMV ........................143 11.2.4 View test data ......................144 11.2.5 Schedule automatic execution of the SMV test ............
  • Page 7 Contents 12.22 Check Frequency Output Mode ....................186 12.23 Check Frequency Output Scaling Method ................. 187 12.24 Check Frequency Output Fault Action ..................187 12.25 Check Flow Direction ........................ 187 12.26 Check the cutoffs ........................188 12.27 Check for two-phase flow (slug flow) ..................188 12.28 Check the drive gain ........................
  • Page 8 Contents Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 9: Part I Getting Started

    Getting started Part I Getting started Chapters covered in this part: • Before you begin • Quick start Configuration and Use Manual...
  • Page 10 Getting started Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 11: Before You Begin

    Before you begin Before you begin Topics covered in this chapter: • About this manual • Transmitter model code • Communications tools and protocols • Additional documentation and resources About this manual This manual helps you configure, commission, use, maintain, and troubleshoot the Model 2500 transmitter.

  • Page 12: Additional Documentation And Resources

    Adapter. Use of AMS or the Smart Wireless THUM Adapter is not discussed in this manual. For more information on the Smart Wireless THUM Adapter, refer to the documentation available at www.emerson.com. Additional documentation and resources The following additional documentation supports the installation and operation of the transmitter.

  • Page 13: Chapter 2 Quick Start

    Quick start Quick start Topics covered in this chapter: • Power up the transmitter • Check meter status • Make a startup connection to the transmitter • (Optional) Adjust digital communications settings • Verify mass flow measurement • Verify the zero Power up the transmitter The transmitter must be powered up for all configuration and commissioning tasks, or for process measurement.

  • Page 14: Transmitter Status Reported By Led

    Quick start Wait approximately 10 seconds for the power-up sequence to complete. Immediately after power-up, the transmitter runs through diagnostic routines and checks for error conditions. During the power-up sequence, Alert A009 is active. This alert should clear automatically when the power-up sequence is complete. Check the status LED on the transmitter.

  • Page 15: Optional) Adjust Digital Communications Settings

    Quick start (Optional) Adjust digital communications settings Change the communications parameters to site-specific values. Important If you are changing communications parameters for the connection type that you are using, you will lose the connection when you write the parameters to the transmitter. Reconnect using the new parameters.

  • Page 16: Terminology Used With Zero Verification And Zero Calibration

    Quick start Important In most cases, the factory zero is more accurate than the field zero. Do not zero the meter unless one of the following is true: • The zero is required by site procedures. • The stored zero value fails the zero verification procedure. Procedure Allow the flowmeter to warm up for at least 20 minutes after applying power.
  • Page 17 Quick start Term Definition Field Zero The zero value obtained by performing a zero calibration outside the fac- tory. Prior Zero The zero value stored in the transmitter at the time a field zero calibration is begun. May be the factory zero or a previous field zero. Manual Zero The zero value stored in the transmitter, typically obtained from a zero calibration procedure.
  • Page 18 Quick start Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 19: Part Ii Configuration And Commissioning

    Configuration and commissioning Part II Configuration and commissioning Chapters covered in this part: • Introduction to configuration and commissioning • Configure process measurement • Configure device options and preferences • Integrate the meter with the control system Complete the configuration •...
  • Page 20 Configuration and commissioning Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 21: Introduction To Configuration And Commissioning

    Introduction to configuration and commissioning Introduction to configuration and commissioning Topics covered in this chapter: • Configuration flowchart • Default values and ranges • Disable write‐protection on the transmitter configuration • Restore the factory configuration Configuration flowchart Use the following flowchart as a general guide to the configuration and commissioning process.
  • Page 22 Introduction to configuration and commissioning Figure 3-1: Configuration flowchart Test and move to production Configure process measurement Configure device options and preferences Configure mass flow Configure fault handling Test or tune transmitter measurement using sensor simulation parameters Configure volume flow Configure sensor meaurement Back up transmitter...

  • Page 23: Default Values And Ranges

    Introduction to configuration and commissioning Default values and ranges Section C.1 to view the default values and ranges for the most commonly used parameters. Disable write-protection on the transmitter configuration ProLink III Device Tools > Configuration > Write-Protection Field Communicator Configure > Manual Setup > Info Parameters > Transmitter Info > Write Protect Overview If the transmitter is write-protected, the configuration is locked and you must unlock it before you can change any configuration parameters.
  • Page 24 Introduction to configuration and commissioning Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 25: Configure Process Measurement

    Configure process measurement Configure process measurement Topics covered in this chapter: • Configure mass flow measurement • Configure volume flow measurement for liquid applications • Configure GSV flow measurement • Configure Flow Direction • Configure density measurement • Configure temperature measurement •...
  • Page 26 Configure process measurement Options for Mass Flow Measurement Unit The transmitter provides a standard set of measurement units for Mass Flow Measurement Unit, plus one user-defined special measurement unit. Different communications tools may use different labels for the units. Label Unit description ProLink III Field Communicator...

  • Page 27: Configure Flow Damping

    Configure process measurement Procedure Specify Base Mass Unit. Base Mass Unit is the existing mass unit that the special unit will be based on. Specify Base Time Unit. Base Time Unit is the existing time unit that the special unit will be based on. Calculate Mass Flow Conversion Factor as follows: a.

  • Page 28: Configure Mass Flow Cutoff

    Configure process measurement Procedure Set Flow Damping to the value you want to use. The default value is 0.8 seconds. The range depends on the core processor type and the setting of Update Rate, as shown in the following table. Update Rate setting Damping range Normal...
  • Page 29 Configure process measurement Overview Mass Flow Cutoff specifies the lowest mass flow rate that will be reported as measured. All mass flow rates below this cutoff will be reported as 0. Procedure Set Mass Flow Cutoff to the value you want to use. The default value for Mass Flow Cutoff is 0.0 g/sec or a sensor-specific value set at the factory.

  • Page 30: Configure Volume Flow Measurement For Liquid Applications

    Configure process measurement • Mass Flow Cutoff: 10 g/sec Result: • If the mass flow rate drops below 15 g/sec but not below 10 g/sec: The mA Output will report zero flow. The Frequency Output will report the actual flow rate, and the actual flow rate will be used in all internal processing.

  • Page 31: Configure Volume Flow Measurement Unit For Liquid Applications

    Configure process measurement • Production Volume Reconciliation (PVR) Procedure Set Volume Flow Type to Liquid. 4.2.2 Configure Volume Flow Measurement Unit for liquid applications ProLink III Device Tools > Configuration > Process Measurement > Flow Field Communicator Configure > Manual Setup > Measurements > Flow > Volume Flow Unit Overview Volume Flow Measurement Unit specifies the unit of measurement that will be displayed for the volume flow rate.
  • Page 32 Configure process measurement Label Unit description ProLink III Field Communicator m3/sec Cum/s Cubic meters per second m3/min Cum/min Cubic meters per minute m3/hr Cum/h Cubic meters per hour m3/day Cum/d Cubic meters per day U.S. gallons per second US gal/sec gal/s U.S.

  • Page 33: Configure Volume Flow Cutoff

    Configure process measurement Overview A special measurement unit is a user-defined unit of measure that allows you to report process data, totalizer data, and inventory data in a unit that is not available in the transmitter. A special measurement unit is calculated from an existing measurement unit using a conversion factor.
  • Page 34 Configure process measurement Overview Volume Flow Cutoff specifies the lowest volume flow rate that will be reported as measured. All volume flow rates below this cutoff are reported as 0. Procedure Set Volume Flow Cutoff to the value you want to use. The default value for Volume Flow Cutoff is 0.0 l/sec (liters per second).

  • Page 35: Configure Gsv Flow Measurement

    Configure process measurement • If the volume flow rate drops below 10 l/sec, both outputs will report zero flow, and 0 will be used in all internal processing. Configure GSV flow measurement The gas standard volume (GSV) flow measurement parameters control how volume flow is measured and reported in a gas application.
  • Page 36 Configure process measurement Overview The Standard Density of Gas value is the gas density at standard reference conditions. Use it to convert the measured mass flow data to volume flow at reference conditions. Prerequisites Ensure that Density Measurement Unit is set to the measurement unit you want to use for Standard Density of Gas.

  • Page 37: Configure Gas Standard Volume Flow Unit

    Configure process measurement Set Polling Control n as one of the following options: The n is the value you selected in the Polling Slot field. If there is another master, and if that master is primary, then set this field to secondary.
  • Page 38 Configure process measurement For polling, the first transmitter (master) requests density from a second transmitter (slave) via HART communications. Special units for GSV are allowed on the master side, but the device being polled (slave) cannot have special units set for density, otherwise the master will reject the base density and report an A115: No External Input or Polled Data Alert.
  • Page 39 Configure process measurement Label Unit description ProLink III Field Communicator SLPD SLPD Standard liters per day special Special Special measurement unit Define a special measurement unit for gas standard volume flow ProLink III Device Tools > Configuration > Process Measurement > Flow > Special Units Field Communicator Configure >...

  • Page 40: Configure Gas Standard Volume Flow Cutoff

    Configure process measurement Set Base Gas Standard Volume Unit to SCF. Set Base Time Unit to minutes (min). Calculate the conversion factor: a. 1 thousands of standard cubic feet per minute = 1000 cubic feet per minute b. Gas Standard Volume Flow Conversion Factor = 1 ÷ 1000 = 0.001 standard Set Gas Standard Volume Flow Conversion Factor to 0.001.

  • Page 41: Configure Flow Direction

    Configure process measurement • mA Output Process Variable for the primary mA Output: Gas Standard Volume Flow Rate • Frequency Output Process Variable: Gas Standard Volume Flow Rate • mA Output Cutoff for the primary mA Output: 10 SLPM (standard liters per minute) •...

  • Page 42: Options For Flow Direction

    Configure process measurement Micro Motion sensors are bidirectional. Measurement accuracy is not affected by actual flow direction or the setting of the Flow Direction parameter. Procedure Set Flow Direction to the value you want to use. The default setting is Forward. 4.4.1 Options for Flow Direction Flow Direction setting...
  • Page 43 Configure process measurement Figure 4-1: Effect of Flow Direction on the mA Output: Lower Range Value = 0 Flow Direction = Forward Flow Direction = Reverse, Negate Forward Flow Direction = Absolute Value, Bidirectional, Negate Bidirectional Reverse flow Forward flow Reverse flow Forward flow Reverse flow...
  • Page 44 Configure process measurement Result: • Under conditions of zero flow, the mA Output is 4 mA. • Under conditions of forward flow, up to a flow rate of 100 g/sec, the mA Output varies between 4 mA and 20 mA in proportion to the flow rate. •...
  • Page 45 Configure process measurement Effect of flow direction on Frequency Outputs Flow direction affects how the transmitter reports flow values via the Frequency Outputs. The Frequency Outputs are affected by flow direction only if Frequency Output Process Variable is set to a flow variable. Table 4-1: Effect of the flow direction parameter and actual flow direction on Frequency Outputs...

  • Page 46: Configure Density Measurement

    Configure process measurement Table 4-3: Effect of the flow direction on flow values Actual flow direction Flow Direction setting Forward Zero flow Reverse Forward Positive Negative Reverse Positive Negative Bidirectional Positive Negative Absolute Value Positive Positive Negate Forward Negative Positive Negate Bidirectional Negative Positive...

  • Page 47: Configure Two-Phase Flow Parameters

    Configure process measurement Procedure Set Density Measurement Unit to the option you want to use. The default setting for Density Measurement Unit is g/cm3 (grams per cubic centimeter). Options for Density Measurement Unit The transmitter provides a standard set of measurement units for Density Measurement Unit.
  • Page 48 Configure process measurement Procedure Set Two-Phase Flow Low Limit to the lowest density value that is considered normal in your process. Values below this will cause the transmitter to post Alert A105 (Two-Phase Flow). Gas entrainment can cause your process density to drop temporarily. To reduce the occurrence of two-phase flow alerts that are not significant to your process, set Two-Phase Flow Low Limit slightly below your expected lowest process density.

  • Page 49: Configure Density Damping

    Configure process measurement • The two-phase flow alert is deactivated, but remains in the active alert log until it is acknowledged. If the two-phase flow condition does not clear before Two-Phase Flow Timeout expires, the outputs that represent flow rate report a flow rate of 0. If Two-Phase Flow Timeout is set to 0.0 seconds, the outputs that represent flow rate will report a flow rate of 0 as soon as two-phase flow is detected.

  • Page 50: Configure Density Cutoff

    Configure process measurement 4.5.4 Configure Density Cutoff Density Cutoff specifies the lowest density value that will be reported as measured. All density values below this cutoff will be reported as 0. Procedure Set Density Cutoff to the value you want to use. For most applications, the default setting (0.2 g/cm³) is sufficient.

  • Page 51: Configure Temperature Damping

    Configure process measurement Label Unit description ProLink III Field Communicator °C degC Degrees Celsius °F degF Degrees Fahrenheit °R degR Degrees Rankine °K Kelvin Kelvin 4.6.2 Configure Temperature Damping ProLink III Device Tools > Configuration > Temperature Field Communicator Configure > Manual Setup > Measurements > Temperature > Temp Damping Overview Temperature Damping controls the amount of damping that will be applied to the line temperature value, when the on-board temperature data is used (RTD).

  • Page 52: Effect Of Temperature Damping On Process Measurement

    Configure process measurement 4.6.3 Effect of Temperature Damping on process measurement Temperature Damping affects all processes and algorithms that use temperature data from the internal sensor RTD. Temperature compensation Temperature compensation adjusts process measurement to compensate for the effect of temperature on the sensor tubes.
  • Page 53 Configure process measurement Prerequisites You will need API documentation for the API table that you select. Depending on your API table, you may need to know the thermal expansion coefficient (TEC) for your process fluid. You must know the reference temperature that you want to use. Procedure Choose Device Tools >...

  • Page 54: Set Up Temperature Data For Petroleum Measurement Using Prolink Iii

    Configure process measurement b. Verify that the referred density range of the selected table is adequate for your application. If you chose a C table, enter Thermal Expansion Coefficient (TEC) for your process fluid. Set Reference Temperature to the temperature to which density will be corrected in referred density calculations.

  • Page 55: Configure Petroleum Measurement Using The Field Communicator

    Configure process measurement Option Description Setup Polling The meter polls an external de- a. Set Line Temperature Source to Poll for External Value. vice for temperature data. This b. Set Polling Slot to an available slot. data will be available in addi- c.
  • Page 56 Configure process measurement a. Open the Petroleum Measurement Source menu and select the API table number. Depending on your choice, you may be prompted to enter a reference temperature or a thermal expansion coefficient. b. Enter the API table letter. These two parameters uniquely specify the API table.

  • Page 57: Api Tables Supported By The Petroleum Measurement Application

    Configure process measurement Option Setup A value written by a. Choose Online > Configure > Manual Setup > Measurements > digital communica- External Pressure/Temperature > Temperature . tions b. Set External Temperature to Enabled. c. Perform the necessary host programming and communications setup to write temperature data to the transmitter at appropri- ate intervals.

  • Page 58: Set Up Concentration Measurement

    Configure process measurement Table name Process fluid CTL source data Reference temperature Density unit Generalized crude and Observed density and 15 °C (configurable) Base density observed temperature Range: 610 to 1075 kg/m Generalized products Observed density and 15 °C (configurable) Base density observed temperature Range: 653 to...

  • Page 59: Configure Concentration Measurement Using Prolink Iii

    Configure process measurement • You must know the derived variable that your matrix is designed for. • You must know the density unit used by your matrix. • You must know the temperature unit used by your matrix. • The concentration measurement application must be unlocked. 4.8.1 Configure concentration measurement using ProLink III Choose Device Tools >...
  • Page 60 Configure process measurement Each concentration matrix is built for a specific density range and a specific temperature range. If process density or process temperature goes outside the range, the transmitter will extrapolate concentration values. However, extrapolation may affect accuracy. Extrapolation alarms are used to notify the operator that extrapolation is occurring.

  • Page 61: Configure Concentration Measurement Using The Field Communicator

    Configure process measurement b. Set Polling Control to Poll as Primary or Poll as Secondary, and click Apply. • Poll as Primary: No other HART masters will be on the network. • Poll as Secondary: Other HART masters will be on the network. The Field Communicator is not a HART master.
  • Page 62 Configure process measurement f. Enable or disable the high and low limit alarms for temperature and density, as desired. Restriction The high and low limit alarms require the enhanced core processor. Example: If Alarm Limit is set to 5%, the high-temperature extrapolation alert is enabled, and the matrix is built for a temperature range of 40 °F to 80 °F, an extrapolation alarm will be posted if process temperature goes above 82 °F Select the label that will be used for the concentration unit.

  • Page 63: Standard Matrices For The Concentration Measurement Application

    Configure process measurement Option Setup Polling for tempera- a. Ensure that the primary mA output has been wired to support ture HART polling. b. Choose Online > Configure > Manual Setup > Measurements . c. Click External Inputs. d. Click Next. e.

  • Page 64: Derived Variables And Calculated Process Variables

    Configure process measurement If the standard matrices are not appropriate for your application, you can build a custom matrix or purchase a custom matrix from Micro Motion. Temperature Matrix name Description Density unit unit Derived variable Deg Balling °F Mass Concentration Matrix represents percent extract, by g/cm (Density)
  • Page 65 Configure process measurement Calculated process variables Density at reference Standard Derived tempera- volume Specific Concen- Net mass volume Variable Description ture flow rate gravity tration flow rate flow rate ✓ ✓ Density Mass/unit volume, cor- at Reference rected to a given refer- ence temperature ✓...

  • Page 66: Configure Pressure Compensation

    Not all sensors or applications require pressure compensation. The pressure effect for a specific sensor model can be found in the product data sheet located at www.emerson.com. If you are uncertain about implementing pressure compensation, contact customer service. Prerequisites You will need the flow factor, density factor, and calibration pressure values for your sensor.
  • Page 67 Configure process measurement The calibration pressure is the pressure at which your sensor was calibrated, and defines the pressure at which there is no pressure effect. If the data is unavailable, enter 20 PSI. Enter Flow Factor for your sensor. The flow factor is the percent change in the flow rate per PSI.

  • Page 68: Configure Pressure Compensation Using The Field Communicator

    Configure process measurement c. Set External Device Tag to the HART tag of the external pressure device, and click Apply. d. Ensure that the primary mA Output is wired to support HART communications with the external pressure device. If you chose to use a fixed pressure value: a.

  • Page 69: Options For Pressure Measurement Unit

    Configure process measurement Option Setup A user-configured a. Set Pressure Unit to the desired unit. static pressure value b. Set Compensation Pressure to the desired value. Polling for pressure a. Ensure that the primary mA Output has been wired to support HART polling.
  • Page 70 Configure process measurement Label Unit description ProLink III Field Communicator In Water @ 68°F inH2O Inches water @ 68 °F mm Water @ 4°C mmH2O @4DegC Millimeters water @ 4 °C mm Water @ 68°F mmH2O Millimeters water @ 68 °F mm Mercury @ 0°C mmHg Millimeters mercury @ 0 °C...

  • Page 71: Configure Device Options And Preferences

    Configure device options and preferences Configure device options and preferences Topics covered in this chapter: • Configure response time parameters • Configure alert handling • Configure informational parameters Configure response time parameters You can configure the rate at which process data is polled and process variables are calculated.
  • Page 72 Configure device options and preferences Option Description Normal All process data is polled at the rate of 20 times per second (20 Hz). All process variables are calculated at 20 Hz. This option is appropriate for most applications. Special A single, user-specified process variable is polled at the rate of 100 times per sec- ond (100 Hz).

  • Page 73: Configure Response Time

    Configure device options and preferences Table 5-1: Special mode and process variable updates Updated only when the petroleum measurement application is disa- Always polled and updated bled Never updated • Mass flow • RPO amplitude All other process variables and calibra- •...

  • Page 74: Configure Alert Handling

    Configure device options and preferences Option Description Normal (Legacy) Transmitter calculates process variables at the standard speed. This op- tion is selected if this parameter was configured on an earlier version of ProLink III software. Special (Legacy) Transmitter calculates process variables at a faster speed. This option is selected if this parameter was configured on an earlier version of ProLink III software.

  • Page 75: Configure Status Alert Severity

    Configure device options and preferences If the fault timeout period expires while the alert is still active, the fault actions are performed. If the alert condition clears before the fault timeout expires, no fault actions are performed. 5.2.2 Configure Status Alert Severity ProLink III Device Tools >...
  • Page 76 Configure device options and preferences Option Description Informa- Actions when fault is detected: tional • The alert is posted to the Alert List. • The status LED (if available) changes to red or yellow (depending on alert se- verity). Actions when alert clears: •...
  • Page 77 Configure device options and preferences Table 5-2: Status alerts and Status Alert Severity (continued) Alert code Status message Default severity Notes Configurable? Fault A023 Internal Totals Corrupt Applies only to flowmeters with the (Core Processor) standard core processor. A024 Program Corrupt (Core Fault Applies only to flowmeters with the Processor)
  • Page 78 Configure device options and preferences Table 5-2: Status alerts and Status Alert Severity (continued) Alert code Status message Default severity Notes Configurable? Informational A108 Basic Event 1 On Applies only to basic events. Informational A109 Basic Event 2 On Applies only to basic events. Informational A110 Frequency Output Satura-...

  • Page 79: Configure Informational Parameters

    Configure device options and preferences Table 5-2: Status alerts and Status Alert Severity (continued) Alert code Status message Default severity Notes Configurable? Informational A141 DDC trigger(s) have com- Applies only to flowmeters with the pleted enhanced core processor. Can be set to either Informational or Ignore, but cannot be set to Fault.

  • Page 80: Configure Sensor Liner Material

    Configure device options and preferences Procedure Obtain the material used for your sensor’s wetted parts from the documents shipped with your sensor, or from a code in the sensor model number. To interpret the model number, refer to the product data sheet for your sensor. Set Sensor Material to the appropriate option.

  • Page 81: Configure Descriptor

    Configure device options and preferences 5.3.5 Configure Descriptor ProLink III Device Tools > Configuration > Informational Parameters > Transmitter Field Communicator Configure > Manual Setup > Info Parameters > Transmitter Info > Descriptor Overview Descriptor lets you store a description in transmitter memory. The description is not used in processing and is not required.
  • Page 82 Configure device options and preferences ProLink III provides a calendar tool to help you select the date. Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 83: Integrate The Meter With The Control System

    Integrate the meter with the control system Integrate the meter with the control system Topics covered in this chapter: • Configure the transmitter channels • Configure the mA Output • Configure the Frequency Output • Configure the Discrete Output • Configure the Discrete Input •...
  • Page 84 Integrate the meter with the control system Important Before configuring a channel to operate as a Discrete Input, check the status of the remote input device and the actions assigned to the Discrete Input. If the Discrete Input is ON, all actions assigned to the Discrete Input will be performed when the new channel configuration is implemented.

  • Page 85: Configure The Ma Output

    Integrate the meter with the control system After verifying channel and output configuration, return the control loop to automatic control. Configure the mA Output The mA Output is used to report the configured process variable. The mA Output parameters control how the process variable is reported. Your transmitter may have one or two mA Outputs: •...
  • Page 86 Integrate the meter with the control system Postrequisites If you changed the setting of mA Output Process Variable, verify the settings of Lower Range Value (LRV) and Upper Range Value (URV). Options for mA Output Process Variable The transmitter provides a basic set of options for mA Output Process Variable, plus several application-specific options.
  • Page 87 Integrate the meter with the control system Table 6-3: Concentration measurement mA Output process variables (continued) Label Process variable ProLink III Field Communicator Net mass flow Net Mass Flow Rate ED Net Mass flo Net volume flow rate Net Volume Flow Rate ED Net Vol flo Specific gravity Density (Fixed SG Units)

  • Page 88: Configure Lower Range Value (Lrv) And Upper Range Value (Urv)

    Integrate the meter with the control system 6.2.2 Configure Lower Range Value (LRV) and Upper Range Value (URV) ProLink III Device Tools > Configuration > I/O > Outputs > mA Output Field Communicator • Configure > Manual Setup > Inputs/Outputs > mA Output 1 > mA Output Settings > PV LRV •...

  • Page 89: Configure Ao Cutoff

    Integrate the meter with the control system The mA Output uses a range of 4–20 mA to represent mA Output Process Variable. Between LRV and URV, the mA Output is linear with the process variable. If the process variable drops below LRV or rises above URV, the transmitter posts an output saturation alert.
  • Page 90 Integrate the meter with the control system Restriction AO Cutoff is applied only if mA Output Process Variable is set to Mass Flow Rate, Volume Flow Rate, or Gas Standard Volume Flow Rate. If mA Output Process Variable is set to a different process variable, AO Cutoff is not configurable, and the transmitter does not implement the AO cutoff function.

  • Page 91: Configure Added Damping

    Integrate the meter with the control system The Frequency Output will report the actual flow rate. • If the mass flow rate drops below 10 g/sec, both outputs will report zero flow. 6.2.4 Configure Added Damping ProLink III Device Tools > Configuration > I/O > Outputs > mA Output Field Communicator •...

  • Page 92: Configure Ma Output Fault Action And Ma Output Fault Level

    Integrate the meter with the control system Table 6-7: Valid values for Added Damping (continued) Update rate Setting of Update Rate Process variable in effect Valid values for Added Damping Special 100 Hz variable (if assigned 100 Hz 0.0, 0.04, 0.12, 0.30, 0.64, 1.32, 2.6, 5.4, 11, 22, to the mA Output) 44, 88, 176, 350 100 Hz variable (if not as-...
  • Page 93 Integrate the meter with the control system Note For some faults only: If Fault Timeout is set to a non-zero value, the transmitter will not implement the fault action until the timeout has elapsed. Procedure Set mA Output Fault Action to the desired value. The default setting is Downscale.

  • Page 94: Configure The Frequency Output

    Integrate the meter with the control system Configure the Frequency Output The Frequency Output is used to report a process variable. The Frequency Output parameters control how the process variable is reported. Your transmitter may have zero, one, or two Frequency Outputs, depending on the configuration of Channels B and C. If both Channels B and C are configured as Frequency Outputs, they are electrically isolated but not independent.

  • Page 95: Configure Frequency Output Polarity

    Integrate the meter with the control system Table 6-8: Standard FO process variables Label Process variable ProLink III Field Communicator Gas standard volume flow rate Gas Standard Volume Flow Rate Gas vol flo Mass flow rate Mass Flow Rate Mass flo Volume flow rate Volume Flow Rate Vol flo...

  • Page 96: Configure Frequency Output Scaling Method

    Integrate the meter with the control system Overview Frequency Output Polarity controls how the output indicates the ON (active) state. The default value, Active High, is appropriate for most applications. Your receiving device might require an Active Low setting. Procedure Set Frequency Output Polarity as desired.

  • Page 97: Configure Frequency Output Mode

    Integrate the meter with the control system • If you set Frequency Output Scaling Method to Frequency=Flow, set Rate Factor and Frequency Factor. • If you set Frequency Output Scaling Method to Pulses/Unit, define the number of pulses that will represent one flow unit. •...

  • Page 98: Configure Frequency Output Fault Action And Frequency Output Fault Level

    Integrate the meter with the control system Prerequisites Before configuring Frequency Output Mode, ensure that both Channel B and Channel C are configured to operate as Frequency Outputs. If you do not have two Frequency Outputs on your transmitter, Frequency Output Mode is set to Single and cannot be changed. Procedure Set Frequency Output Mode as desired.
  • Page 99 Integrate the meter with the control system Overview Frequency Output Fault Action controls the behavior of the Frequency Output if the transmitter encounters an internal fault condition. Note For some faults only: If Fault Timeout is set to a non-zero value, the transmitter will not implement the fault action until the timeout has elapsed.

  • Page 100: Configure The Discrete Output

    Integrate the meter with the control system CAUTION! If you set mA Output Fault Action or Frequency Output Fault Action to None, be sure to set Digital Communications Fault Action to None. If you do not, the output will not report actual process data, and this may result in measurement errors or unintended consequences for your process.
  • Page 101 Integrate the meter with the control system • Discrete Output 1: Flow Direction • Discrete Output 2: Flow Switch, with Flow Switch Variable set to Mass Flow Rate, Flow Switch Setpoint set to 0.0 g/s, and Flow Switch Hysteresis set to 0.05 (5%). Options for Discrete Output Source Label Discrete Output volt-...

  • Page 102: Configure Discrete Output Polarity

    Integrate the meter with the control system Fault indication with the Discrete Output Configure Flow Switch parameters ProLink III Device Tools > Configuration > I/O > Outputs > Discrete Output Field Communicator • Configure > Manual Setup > Inputs/Outputs > Discrete Output > Flow Switch Source •...
  • Page 103 Integrate the meter with the control system Overview Discrete Outputs have two states: ON (active) and OFF (inactive). Two different voltage levels are used to represent these states. Discrete Output Polarity controls which voltage level represents which state. Procedure Set Discrete Output Polarity as desired. The default setting is Active High.

  • Page 104: Configure Discrete Output Fault Action

    Integrate the meter with the control system 6.4.3 Configure Discrete Output Fault Action ProLink III Device Tools > Configuration > Fault Processing Field Communicator • Configure > Manual Setup > Inputs/Outputs > Discrete Output > DO 1 Fault Action • Configure >...

  • Page 105: Configure The Discrete Input

    Integrate the meter with the control system Fault indication with the Discrete Output To indicate faults via the Discrete Output, set Discrete Output Source to Fault. Then, if a fault occurs, the Discrete Output is always ON and the setting of Discrete Output Fault Action is ignored.
  • Page 106 Integrate the meter with the control system Options for Discrete Input Action Table 6-13: Standard options Label Action ProLink III Field Communicator None (default) None None Start sensor zero Start Sensor Zero Perform auto zero Start/stop all totalizers Start/Stop All Totalization Start/stop totals Reset mass total Reset Mass Total...

  • Page 107: Configure Discrete Input Polarity

    Integrate the meter with the control system 6.5.2 Configure Discrete Input Polarity ProLink III Device Tools > Configuration > I/O > Inputs > Discrete Input Field Communicator Configure > Manual Setup > Inputs/Outputs > Discrete Input > DI Polarity Overview The Discrete Input has two states: ON and OFF.

  • Page 108: Configure A Basic Event

    Integrate the meter with the control system Your transmitter supports two event models: • Basic event model • Enhanced event model 6.6.1 Configure a basic event ProLink III Device Tools > Configuration > Events > Basic Events Field Communicator Not available Overview A basic event is used to provide notification of process changes.
  • Page 109 Integrate the meter with the control system Overview An enhanced event is used to provide notification of process changes and, optionally, to perform specific transmitter actions if the event occurs. An enhanced event occurs (is ON) if the real-time value of a user-specified process variable moves above (HI) or below (LO) a user-defined setpoint, or in range (IN) or out of range (OUT) with respect to two user- defined setpoints.
  • Page 110 Integrate the meter with the control system Options for Enhanced Event Action Table 6-17: Standard options Label Action ProLink III Field Communicator None (default) None None Start sensor zero Start Sensor Zero Perform auto zero Start/stop all totalizers Start/Stop All Totalization Start/stop totals Reset mass total Reset Mass Total...

  • Page 111: Configure Digital Communications

    Integrate the meter with the control system Configure digital communications The digital communications parameters control how the transmitter will communicate using digital communications. Your transmitter supports the following types of digital communications: • HART/Bell 202 over the primary mA terminals •...
  • Page 112 Integrate the meter with the control system Option Description Enabled (Live) The primary mA Output reports process data as configured. Disabled (Fixed) The primary mA Output is fixed at 4 mA and does not report process data. Important If you use ProLink III to set HART Address to 0, the program automatically enables mA Output Action.
  • Page 113 Integrate the meter with the control system Label ProLink III Field Communicator Description Transmitter variables Fld dev var The transmitter sends four user-specified process variables in each burst. Ensure that the burst output variables are set appropriately. • If you set Burst Mode Output to send four user-specified variables, set the four process variables to be sent in each burst.
  • Page 114 Integrate the meter with the control system Table 6-21: Standard HART process variables (continued) Process variable Primary Varia- Secondary Third Variable Fourth Varia- ble (PV) Variable (SV) (TV) ble (QV ) ✓ ✓ ✓ ✓ Line (Gross) Volume Flow Rate ✓...
  • Page 115 Integrate the meter with the control system Table 6-23: Concentration measurement HART process variables (continued) Process variable Primary Varia- Secondary Third Variable Fourth Varia- ble (PV) Variable (SV) (TV) ble (QV ) ✓ CM Net Volume Inventory ✓ CM Net Volume Total ✓...
  • Page 116 Integrate the meter with the control system Table 6-25: PVR-only HART process variables (continued) Process variable Primary Varia- Secondary Third Variable Fourth Varia- ble (PV) Variable (SV) (TV) ble (QV ) ✓ ✓ ✓ Volume Flow of Mix at Line ✓...

  • Page 117: Configure Modbus/Rs-485 Communications

    Integrate the meter with the control system Table 6-29: HART variables and transmitter outputs (continued) HART variable Reported via Comments Tertiary Variable (TV) Frequency Output (if If one assignment is changed, the other is changed auto- present on your transmitter) matically, and vice versa.

  • Page 118: Configure Digital Communications Fault Action

    Integrate the meter with the control system Code Byte order 1–2 3–4 3–4 1–2 2–1 4–3 4–3 2–1 See the following table for the bit structure of bytes 1 through 7. Table 6-30: Bit structure of floating-point bytes Byte Bits Definition SEEEEEEE S=Sign...
  • Page 119 Integrate the meter with the control system The default setting is None. Restrictions • If mA Output Fault Action or Frequency Output Fault Action is set to None, Digital Communications Fault Action should also be set to None. If you do not, the output will not report actual process data, and this may result in measurement errors or unintended consequences for your process.
  • Page 120 Integrate the meter with the control system CAUTION! If you set mA Output Fault Action or Frequency Output Fault Action to None, be sure to set Digital Communications Fault Action to None. If you do not, the output will not report actual process data, and this may result in measurement errors or unintended consequences for your process.

  • Page 121: Complete The Configuration

    Complete the configuration Complete the configuration Topics covered in this chapter: • Test or tune the system using sensor simulation • Back up transmitter configuration • Enable write‐protection on the transmitter configuration Test or tune the system using sensor simulation Use sensor simulation to test the system's response to a variety of process conditions, including boundary conditions, problem conditions, or alert conditions, or to tune the loop.

  • Page 122: Sensor Simulation

    Complete the configuration For density, set Wave Form as desired and enter the required values. Option Required values Fixed Fixed Value Sawtooth Period Minimum Maximum Sine Period Minimum Maximum For temperature, set Wave Form as desired and enter the required values. Option Required values Fixed...

  • Page 123: Back Up Transmitter Configuration

    Complete the configuration • All mass, temperature, density, or volume values logged to Data Logger Sensor simulation does not affect any diagnostic values. Unlike actual mass flow rate and density values, the simulated values are not temperature- compensated (adjusted for the effect of temperature on the sensor’s flow tubes). Back up transmitter configuration ProLink III provides a configuration upload/download function which allows you to save configuration sets to your PC.
  • Page 124 Complete the configuration Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 125: Set Up The Weights & Measures Application

    Set up the Weights & Measures application Set up the Weights & Measures application Topics covered in this chapter: • Weights & Measures application • Set up the Weights & Measures application using ProLink III Information in this chapter is applicable only if your transmitter was ordered with the Weights &...

  • Page 126: Set Up The Weights & Measures Application Using Prolink Iii

    Set up the Weights & Measures application Metrological Metrological security protects the transmitter from all changes that would affect measurement. This includes changes to configuration and security some maintenance procedures. Micro Motion implements metrological security via “software security.” Software security is a setting inside the transmitter that programmatically disables the prohibited actions.
  • Page 127 Set up the Weights & Measures application Procedure Make a service port connection from ProLink III to your transmitter. Choose Device Tools > Configuration > Weights & Measuresand set Regulatory Agency to the apropriate regulatory agency for your application. Option Description NTEP Regulatory agency for the U.S.A.
  • Page 128 Set up the Weights & Measures application The checksum values for the transmitter firmware and the core processor firmware must be read during meter commissioning to meet Weights & Measures requirements for gas applications in Germany. They may also be useful for MID/Welmec 7.2 test reports.
  • Page 129 Set up the Weights & Measures application Figure 8-1: Example of clamp and seal on transmitter Configuration and Use Manual...
  • Page 130 Set up the Weights & Measures application Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 131: Part Iii Operations, Maintenance, And Troubleshooting

    Operations, maintenance, and troubleshooting Part III Operations, maintenance, and troubleshooting Chapters covered in this part: • Transmitter operation • Operate the transmitter with the Weights & Measures application • Measurement support • Troubleshooting Configuration and Use Manual...
  • Page 132 Operations, maintenance, and troubleshooting Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 133: Chapter 9 Transmitter Operation

    Transmitter operation Transmitter operation Topics covered in this chapter: • Record the process variables • View process variables • View transmitter status using the status LED • View and acknowledge status alerts • Read totalizer and inventory values • Start and stop totalizers and inventories •...

  • Page 134: View Process Variables

    Transmitter operation View process variables ProLink III View the desired variable on the main screen under Process Variables. See Section 9.2.1 for more information. Field Communicator Overview > Shortcuts > Variables > Process Variables Overview Process variables provide information about the state of the process fluid, such as flow rate, density, and temperature, as well as running totals.

  • Page 135: View And Acknowledge Status Alerts

    Transmitter operation Table 9-1: Status LED states (continued) LED state Alarm condition Description Flashing yellow No alarm • Zero calibration procedure is in progress • Loop test is in progress Solid yellow Low-severity alarm Alarm condition that will not cause measure- ment error (outputs continue to report proc- ess data) Solid red...

  • Page 136: View Alerts Using The Field Communicator

    Transmitter operation Postrequisites • To clear the following alerts, you must correct the problem, acknowledge the alert, then power-cycle the transmitter: A001, A002, A010, A011, A012, A013, A018, A019, A022, A023, A024, A025, A028, A029, A031. • For all other alerts: If the alert is inactive when it is acknowledged, it will be removed from the list.

  • Page 137: Read Totalizer And Inventory Values

    Transmitter operation Transmitter action if condition occurs Alert data structure Contents Clearing Alert Statistics One record for each alert (by alert number) Not cleared; maintained across transmitter that has occurred since the last master reset. power cycles Each record contains: •...

  • Page 138: Reset Totalizers

    Transmitter operation Important Totalizers and inventories are started or stopped as a group. When you start any totalizer, all other totalizers and all inventories are started simultaneously. When you stop any totalizer, all other totalizers and all inventories are stopped simultaneously. You cannot start or stop inventories directly.
  • Page 139 Transmitter operation When you reset a single inventory, the values of other inventories are not reset. Totalizer values are not reset. Prerequisites To use ProLink III to reset the inventories, the feature must be enabled. • To enable inventory reset in ProLink III: 1.
  • Page 140 Transmitter operation Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 141: Chapter 10 Operate The Transmitter With The Weights & Measures Application

    Operate the transmitter with the Weights & Measures application Operate the transmitter with the Weights & Measures application Topics covered in this chapter: • Operate the transmitter when the Weights & Measures application is installed • Switch between secured and unsecured mode •...

  • Page 142: Approved Methods To Read Or Obtain Process Data

    Operate the transmitter with the Weights & Measures application • You cannot reset inventories while the transmitter is secured. 10.1.1 Approved methods to read or obtain process data When the Weights & Measures application is installed, process data is approved for custody transfer use only if an approved method is used for reading or obtaining it.

  • Page 143: Effect Of The Weights & Measures Application On Operation And Maintenance Functions

    Operate the transmitter with the Weights & Measures application Table 10-3: Transmitter outputs and process data when Approvals=NTEP (continued) Transmitter status Function Unsecured Secured Frequency output behavior Inactive (produces no pulses), even under fault Normal conditions Discrete output behavior Normal Normal Process variables All flow rates Reported as zero...
  • Page 144 Operate the transmitter with the Weights & Measures application Table 10-5: Available actions when Approvals=NTEP Transmitter status Function Unsecured Secured Connecting from ProLink II, ProLink III, the All supported connec- Physical security prevents access to the Field Communicator, or a host tion types are availa- RS-485 terminals, so neither RS-485 ble.
  • Page 145 Operate the transmitter with the Weights & Measures application Table 10-6: Available actions when Approvals=OIML Function Transmitter status Unsecured Secured Connecting from ProLink II, ProLink III, the All supported connec- Physical security prevents access to the Field Communicator, or a host tion types are available.

  • Page 146: Switch Between Secured And Unsecured Mode

    ProLink III • The Custody Transfer switching utility. The switching utility is free, and is available from the Software Downloads page at www.emerson.com. The controls are not accessible in any other way. 10.2.1 Switch between secured and unsecured mode using...

  • Page 147: Clear Status Alarm A027: Security Breach

    Operate the transmitter with the Weights & Measures application Before switching to unsecured mode, ensure that you will be able to switch back to secured mode. Because switching to unsecured mode requires breaking the physical seal, switching back to secured mode may require a site visit from a certified Weights & Measures inspector and reinstallation of the physical seal.
  • Page 148 Operate the transmitter with the Weights & Measures application Important In most cases, the physical seal must be installed by a certified Weights & Measures inspector. Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 149: Chapter 11 Measurement Support

    Measurement support Measurement support Topics covered in this chapter: • Options for measurement support • Use Smart Meter Verification (SMV) • Use PVR, TBR, and TMR • Piecewise linearization (PWL) for calibrating gas meters • Use the fuel consumption application •...

  • Page 150: Use Smart Meter Verification (Smv)

    Measurement support 11.2 Use Smart Meter Verification (SMV) You can run an SMV test, view and interpret the results, and set up automatic execution. 11.2.1 SMV requirements To use SMV, the transmitter must be paired with an enhanced core processor. Table 11‐1 for the minimum version of the transmitter, enhanced core processor, and communication tool needed to support SMV.

  • Page 151: Run Smv

    Measurement support SMV has an output mode called Continuous Measurement that allows the transmitter to keep measuring while the test is in progress. If you choose to run the test in Last Measured Value or Fault modes instead, the transmitter outputs will be held constant for the two minute duration of the test.

  • Page 152: View Test Data

    Measurement support Run an SMV test using the Field Communicator Navigate to the Smart Meter Verification menu: • Overview > Shortcuts > Meter Verification • Service Tools > Maintenance > Routine Maintenance > Meter Verification Choose Manual Verification. Choose Start. Set output behavior as desired, and press OK if prompted.
  • Page 153 Measurement support • Current process values for mass flow rate, volume flow rate, density, temperature, and external pressure • Customer and test descriptions (if entered by the user) You can use ProLink III to run a test that displays a test result chart and a test report at the completion of the test.
  • Page 154 Measurement support Understanding SMV results When the SMV test is completed, the result is reported as Pass, Fail, or Abort. (Some tools report the Fail result as Advisory instead.) Pass Smart Meter Verification does a statistical check between the factory baseline value and the current Smart Meter Verification result.

  • Page 155: Schedule Automatic Execution Of The Smv Test

    Measurement support 11.2.5 Schedule automatic execution of the SMV test You can set up and run a single test at a user-defined future time. You can also set up and run tests on a regular schedule. Manage scheduled test execution using ProLink III Choose Device Tools >...

  • Page 156: Pvr, Tbr, And Tmr Applications

    Measurement support • An 800 Enhanced Core Processor version 4.4 and later • HART with HART 7 enabled in order to view process variables over HART (default) Restriction PVR, TBR, and TMR process variables are available only over HART with HART 7 enabled (default).

  • Page 157: Piecewise Linearization (Pwl) For Calibrating Gas Meters

    PWL does not apply when measuring liquid flow. When better accuracy is required over the published gas measurement specifications, an Emerson-approved independent gas laboratory can calibrate gas up to 10 PWL adjustment points.

  • Page 158: Validate The Meter

    Measurement support Prerequisites Verify the zero and prepare the meter using the procedures in Section 2.6. Procedure Zero the meter. Tool Path ProLink III Device Tools > Calibration > Zero Verification and Calibration > Calibrate Zero Field Communicator Service Tools > Maintenance > Zero Calibration > Perform Auto Zero If necessary, modify Zero Time.
  • Page 159 Measurement support Prerequisites Identify the meter factor(s) that you will calculate and set. You may set any combination of the three meter factors: mass flow, volume flow, and density. Note that all three meter factors are independent: • The meter factor for mass flow affects only the value reported for mass flow. •...

  • Page 160: Alternate Method For Calculating The Meter Factor For Volume Flow

    Measurement support MeterFactor = 0.9989 MassFlow 250.27 The first meter factor for mass flow is 0.9989. One year later, the flowmeter is validated again. The mass flow measurement from the transmitter is 250.07 lb. The mass flow measurement from the reference device is 250.25 lb.

  • Page 161: Perform A (Standard) D1 And D2 Density Calibration

    Measurement support 11.8 Perform a (standard) D1 and D2 density calibration Density calibration establishes the relationship between the density of the calibration fluids and the signal produced at the sensor. Density calibration includes the calibration of the D1 (low-density) and D2 (high-density) calibration points. Important Micro Motion flowmeters are calibrated at the factory, and normally do not need to be calibrated in the field.

  • Page 162: Perform A D1 And D2 Density Calibration Using The Field Communicator

    Measurement support Postrequisites If you disabled LD Optimization before the calibration procedure, re-enable it. 11.8.2 Perform a D1 and D2 density calibration using the Field Communicator Read the Prerequistes on page 153 if you have not already done so. See the following figure. Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 163: Perform A D3 And D4 Density Calibration (T-Series Sensors Only)

    Measurement support Postrequisites If you disabled LD Optimization before the calibration procedure, re-enable it. 11.9 Perform a D3 and D4 density calibration (T- Series sensors only) For T-Series sensors, the optional D3 and D4 calibration could improve the accuracy of the density measurement if the density of your process fluid is less than 0.8 g/cm or greater than 1.2 g/cm...

  • Page 164: Perform A D3 Or D3 And D4 Density Calibration Using Prolink Iii

    Measurement support • Perform both the D3 and D4 calibrations if you have two calibrated fluids (other than air and water). The calibrations must be performed without interruption, in the order shown. Make sure that you are prepared to complete the process without interruption.

  • Page 165: Perform A D3 Or D3 And D4 Density Calibration Using The Field Communicator

    Measurement support Figure 11-1: D3 or D3 and D4 density calibration using ProLink III Close shutoff valve downstream from sensor D3 Calibration D4 Calibration Fill sensor with D3 fluid Fill sensor with D4 fluid Device Tools > Device Tools > Calibration >...

  • Page 166: Perform Temperature Calibration

    Measurement support Figure 11-2: D3 or D3 and D4 density calibration using the Field Communicator D3 Calibration D4 Calibration Close shutoff valve Fill sensor with D3 fluid Fill sensor with D4 fluid downstream from sensor On-Line Menu > Service Tools > Service Tools >...

  • Page 167: Perform Temperature Calibration Using Prolink Iii

    Measurement support Prerequisites The temperature calibration is a two-part procedure: temperature offset calibration and temperature slope calibration. The two parts must be performed without interruption, in the order shown. Ensure that you are prepared to complete the process without interruption. You will need a low-temperature calibration fluid and a high-temperature calibration fluid.

  • Page 168: Perform Temperature Calibration Using The Field Communicator

    Measurement support 11.10.2 Perform temperature calibration using the Field Communicator Temperature Offset calibration Temperature Slope calibration Fill sensor with low- Fill sensor with high- temperature fluid temperature fluid Wait until sensor achieves Wait until sensor achieves thermal equilibrium thermal equilibrium Service Tools >...

  • Page 169: Chapter 12 Troubleshooting

    Troubleshooting Troubleshooting Topics covered in this chapter: • Status LED states • Status alerts, causes, and recommendations • Flow measurement problems • Density measurement problems • Temperature measurement problems • Milliamp output problems • Frequency Output problems • Discrete output problems •...

  • Page 170: Status Led States

    Troubleshooting 12.1 Status LED states The status LED on the transmitter indicates whether or not alerts are active. If alerts are active, view the alert list to identify the alerts, then take appropriate action to correct the alert condition. Table 12-1: Status LED states LED state Alarm condition...
  • Page 171 Troubleshooting Alert num- Alert title Possible cause Recommended actions A004 Temperature Over- The RTD resistance is out of range • Check your process conditions against range for the sensor. The tube RTD resist- the values reported by the device. ance is out of range for the sensor. •...
  • Page 172 Troubleshooting Alert num- Alert title Possible cause Recommended actions A009 Transmitter Initializ- Transmitter is in power-up mode. • Allow the meter to complete its power- ing/Warming Up up sequence. The alert should clear au- This alert often occurs in conjunc- tomatically.
  • Page 173 Troubleshooting Alert num- Alert title Possible cause Recommended actions A013 Zero Calibration There was too much process insta- • Remove or reduce sources of electro- Failed: Unstable bility during the calibration proce- mechanical noise (e.g., pumps, vibra- dure. tion, pipe stress), cycle power to the meter, then retry the procedure.
  • Page 174 Troubleshooting Alert num- Alert title Possible cause Recommended actions A021 Transmitter/Sensor/ The configured board type does not • Verify all of the characterization or cali- Software Mismatch match the physical board, or the bration parameters. See the sensor tag configured sensor type does not or the calibration sheet for your meter.
  • Page 175 Troubleshooting Alert num- Alert title Possible cause Recommended actions A035 Meter Verification The meter verification test did not • Verify that process conditions are sta- Aborted complete, possibly because of a ble, then retry the test. manual abort. • Contact customer support. A100 mA Output 1 Satura- The calculated mA Output value is...
  • Page 176 Troubleshooting Alert num- Alert title Possible cause Recommended actions A104 Calibration in Pro- A calibration procedure is in proc- • Allow the procedure to complete. gress ess. • For zero calibration, you may abort the calibration, set Zero Time to a lower val- ue, and restart the calibration.
  • Page 177 Troubleshooting Alert num- Alert title Possible cause Recommended actions A112 Upgrade Transmit- The transmitter software is down- • Contact customer support. ter Software level from the core processor soft- ware. A113 mA Output 2 Satura- The calculated mA Output value is •...

  • Page 178: Flow Measurement Problems

    Troubleshooting Alert num- Alert title Possible cause Recommended actions A131 Meter Verification in A meter verification test is in pro- • Allow the procedure to complete. Progress: Outputs to gress, with outputs set to Last Meas- Last Measured Value ured Value. Density D1 Calibra- A D1 density calibration is in pro- •...
  • Page 179 Troubleshooting Problem Possible causes Recommended actions Erratic non-zero flow • Leaking valve or seal • Verify that the sensor orientation is appro- rate at no-flow condi- • Two-phase flow priate for your application (refer to the tions • Plugged or coated sensor tube sensor installation manual).

  • Page 180: Density Measurement Problems

    Troubleshooting Problem Possible causes Recommended actions Inaccurate flow rate • Wiring problem • Check the wiring between the sensor and or batch total • Inappropriate measurement unit the transmitter. • Incorrect flow calibration factor • Verify that the measurement units are con- •...

  • Page 181: Temperature Measurement Problems

    Troubleshooting Problem Possible causes Recommended actions Unusually high densi- • Plugged or coated sensor tube • Ensure that all of the calibration parame- ty reading • Incorrect density calibration factors ters have been entered correctly. See the • Incorrect temperature measurement sensor tag or the calibration sheet for your •...

  • Page 182: Milliamp Output Problems

    Troubleshooting Problem Possible causes Recommended actions Temperature reading • Sensor temperature not yet equalized • If the error is within the temperature speci- slightly different from • Sensor leaking heat fication for the sensor, there is no prob- process temperature lem.
  • Page 183 Troubleshooting Table 12-2: Milliamp output problems and recommended actions (continued) Problem Possible causes Recommended actions mA Output below • Open in wiring • Check your process conditions against the 4 mA • Bad output circuit values reported by the device. •...

  • Page 184: Frequency Output Problems

    Troubleshooting 12.7 Frequency Output problems Table 12-3: Frequency Output problems and recommended actions Problem Possible causes Recommended actions No Frequency Output • Stopped totalizer • Verify that the process conditions are be- • Process condition below cutoff low the low-flow cutoff. Reconfigure the •...

  • Page 185: Discrete Input Problems

    Troubleshooting Problem Possible causes Recommended actions No discrete output • Wiring problem • Check the power supply and power supply • Circuit failure wiring. • Verify the output wiring. • Contact customer service. Loop test failed • Power supply problem •...

  • Page 186: Check Power Supply Wiring

    Troubleshooting 12.11 Check power supply wiring If the power supply wiring is damaged or improperly connected, the transmitter may not receive enough power to operate properly. Prerequisites • You will need the installation manual for your transmitter. • When using DC power, a minimum of 1.5 amps of startup current is required. Procedure Use a voltmeter to test the voltage at the transmitter’s power supply terminals.

  • Page 187: Check Grounding

    Troubleshooting Be sure to check all wiring segments: • If you have a 4-wire transmitter, check the wiring between the transmitter and the core processor. • If you have a 9-wire transmitter, check the wiring between the transmitter and the sensor junction box.

  • Page 188: Perform Loop Tests Using Prolink Iii

    Troubleshooting Prerequisites • Follow appropriate procedures to ensure that loop testing will not interfere with existing measurement and control loops. 12.14.1 Perform loop tests using ProLink III Prerequisites Before performing a loop test, configure the channels for the transmitter inputs and outputs that will be used in your application.

  • Page 189: Perform Loop Tests Using The Field Communicator

    Troubleshooting c. Click Fix FO. d. Read the frequency signal at the receiving device and compare it to the transmitter output. e. Click UnFix FO. Test the Discrete Output(s). a. Choose Device Tools > Diagnostics > Testing > Discrete Output Test. b.
  • Page 190 Troubleshooting Procedure Test the mA Output(s). a. Choose Service Tools > Simulate > Simulate Outputs > mA Output 1 Loop Testor Service Tools > Maintenance > Simulate Outputs > mA Output 2 Loop Test, and select 4 mA. b. Read the mA current at the receiving device and compare it to the transmitter output.

  • Page 191: Trim Ma Output

    Troubleshooting h. Choose End. Postrequisites • If the mA Output readings are within 20 microamps of the expected values, you can correct this discrepancy by trimming the output. • If the discrepancy between the mA Output readings is greater than 20 microamps, or if at any step the reading was faulty, verify the wiring between the transmitter and the remote device, and try again.

  • Page 192: Check The Hart Communication Loop

    Troubleshooting Important You must trim the output at both ends (4 mA and 20 mA to ensure that it is compensated accurately across the entire output range. Prerequisites Ensure that the mA output is wired to the receiving device that will be used in production. Procedure Follow the instructions in the guided method.

  • Page 193: Check Hart Address And Ma Output Action

    Troubleshooting If communication with the transmitter cannot be established, the transmitter may need service. Contact customer service. 12.17 Check HART Address and mA Output Action If the transmitter is producing a fixed current from the mA Output, the mA Output Action parameter may be set incorrectly.

  • Page 194: Check Ma Output Fault Action

    Troubleshooting 12.20 Check mA Output Fault Action mA Output Fault Action controls the behavior of the mA Output if the transmitter encounters an internal fault condition. If the mA Output is reporting a constant value below 4 mA or above 20 mA, the transmitter may be in a fault condition. Check the status alerts for active fault conditions.

  • Page 195: Check Frequency Output Scaling Method

    Troubleshooting Procedure Verify the configuration of Frequency Output Mode. 12.23 Check Frequency Output Scaling Method If Frequency Output Scaling Method is set incorrectly, the Frequency Output may report an incorrect value. Verify the configuration of the Frequency Output. If you changed the setting of Frequency Output Scaling Method, check the settings of all other Frequency Output parameters.

  • Page 196: Check The Cutoffs

    Troubleshooting 12.26 Check the cutoffs If the transmitter cutoffs are configured incorrectly, the transmitter may report zero flow when flow is present, or very small amounts of flow under no-flow conditions. There are separate cutoff parameters for mass flow rate, volume flow rate, gas standard volume flow rate (if applicable), and density.
  • Page 197 Troubleshooting To know whether your drive gain is excessive or erratic, you must collect drive gain data during the problem condition and compare it to drive gain data from a period of normal operation. Excessive (saturated) drive gain Table 12-4: Possible causes and recommended actions for excessive (saturated) drive gain Possible cause...

  • Page 198: Collect Drive Gain Data

    Troubleshooting Erratic drive gain Table 12-5: Possible causes and recommended actions for erratic drive gain Possible cause Recommended actions Two-phase flow Check for two-phase flow. See Section 12.27. Polarity of pick-off reversed or Applicable for a 9-wire sensor. Check the wiring between the sen- polarity of drive reversed sor and the transmitter.

  • Page 199: Collect Pickoff Voltage Data

    Troubleshooting Table 12-6: Possible causes and recommended actions for low pickoff voltage Possible cause Recommended actions Cavitation or flashing; settling of • Increase the inlet or back pressure at the sensor. Increasing two-phase or three-phase fluids back pressure is recommended. Applying back pressure downstream from the sensor can prevent flashing inside the sensor tubes.

  • Page 200: Check The Sensor Coils

    Troubleshooting Possible cause Recommended action Moisture inside the sensor junction Ensure that the junction box is dry and no corrosion is present. Liquid or moisture inside the sensor Contact customer support. case Internally shorted feedthrough Contact customer support. Faulty cable Replace the cable.
  • Page 201 Troubleshooting Table 12-7: Coils and test terminal pairs (continued) Coil Sensor model Terminal colors Fixed resistor (see note) CMFS007, CMFS010, CMFS015, Yellow to orange CMF400, and F300 Note The F300/H300/CMF400 fixed resistor applies to only certain specific sensor releases. Contact customer support for more information.

  • Page 202: Check The Core Processor Led

    Troubleshooting Postrequisites To return to normal operation: Plug the terminal blocks into the terminal board. Replace the lid on the sensor junction box. Important When reassembling the meter components, be sure to grease all O-rings. 12.31 Check the core processor LED The core processor has an LED that indicates different meter conditions.
  • Page 203 Troubleshooting Table 12-8: Standard core processor LED states (continued) LED state Description Recommended actions Core processor receiving less • Verify power supply wiring to core processor. than 5 volts • If transmitter status LED is lit, transmitter is re- ceiving power. Check voltage across terminals 1 (VDC+) and 2 (VDC–) in core processor.

  • Page 204: Perform A 700 Core Processor Resistance Test

    Troubleshooting Table 12-9: Enhanced core processor LED states (continued) LED state Description Recommended action Core processor internal failure The meter requires factory service. 12.32 Perform a 700 core processor resistance test Note You can perform a resistance test only on a 700 core processor. Procedure Power down the transmitter.

  • Page 205: Appendix A Using Prolink Iii With The Transmitter

    In most ProLink III installations, the manual is installed with the ProLink III program. Additionally, the ProLink III manual is available on the documentation CD or at www.emerson.com. ProLink III features and functions ProLink III offers complete transmitter configuration and operation functions. ProLink III also offers a number of additional features and functions, including: •...

  • Page 206: Connect With Prolink Iii

    Using ProLink III with the transmitter • The ability to connect to and view information for more than one device • A guided connection wizard These features are documented in the ProLink III manual. They are not documented in the current manual.

  • Page 207: Connect With Prolink Iii To The Service Port

    Using ProLink III with the transmitter • RS-485 connections can be made only when the transmitter's RS-485 terminals are in RS-485 mode. If they are not, you must switch them to RS-485 mode by power- cycling the transmitter and waiting 15 seconds before connecting. •...
  • Page 208 Using ProLink III with the transmitter Figure A-1: Connection to service port A. PC B. Signal converter C. Transmitter Note This figure shows a serial port connection. USB connections are also supported. Start ProLink III. Choose Connect to Physical Device. Set Protocol to Service Port.

  • Page 209: Make A Hart/Bell 202 Connection

    Using ProLink III with the transmitter A.2.3 Make a HART/Bell 202 connection You can connect directly to the primary mA terminals on the transmitter, to any point in a local HART loop, or to any point in a HART multidrop network. CAUTION! If you connect directly to the mA terminals, the transmitter's mA Output may be affected.
  • Page 210 Using ProLink III with the transmitter Figure A-2: Connection to transmitter terminals A. Computer B. Signal converter C. Transmitter Note This figure shows a serial port connection. USB connections are also supported. To connect to a point in the local HART loop: a.
  • Page 211 Using ProLink III with the transmitter Figure A-3: Connection over local loop A. Computer B. Signal converter C. Any combination of resistors R1, R2, and R3 as necessary to meet HART communication resistance requirements D. DCS or PLC E. Transmitter Note This figure shows a serial port connection.
  • Page 212 Using ProLink III with the transmitter Figure A-4: Connection over multidrop network A. Signal converter Ω resistance B. 250–600 C. Devices on the network D. Master device Start ProLink III. Choose Connect to Physical Device. Set Protocol to HART Bell 202. HART/Bell 202 connections use standard connection parameters.

  • Page 213: Connect With Prolink Iii To The Rs-485 Port

    Using ProLink III with the transmitter Option Description Primary Use this setting if no other primary host is on the network. The Field Communicator is a secondary host. Click Connect. Need help? If an error message appears: • Verify the HART address of the transmitter, or poll HART addresses 1–15. •...
  • Page 214 Using ProLink III with the transmitter Figure A-5: Connection to transmitter terminals A. Computer B. Signal converter C. Transmitter Note This figure shows a serial port connection. USB connections are also supported. To connect over the RS-485 network: a. Attach the leads from the signal converter to any point on the network. Figure A-6: Connection over network A.
  • Page 215 Using ProLink III with the transmitter Set the connection parameters to the values configured in the transmitter. If your transmitter has not been configured, use the default values shown here. Table A-1: Default Modbus/RS-485 connection parameters Parameter Default value Modbus RTU Protocol 9600 Baud...
  • Page 216 Using ProLink III with the transmitter Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 217: Appendix B Using A Field Communicator With The Transmitter

    If you are unable to perform these tasks, consult the Field Communicator manual before attempting to use the Field Communicator. The Field Communicator manual is available on the documentation CD or at www.emerson.com. Device descriptions (DDs) In order for the Field Communicator to work with your device, the appropriate device...

  • Page 218: Connect With The Field Communicator

    Using a Field Communicator with the transmitter Field Communicator menus and messages Many of the menus in this manual start with the On-Line menu. Ensure that you are able to navigate to the On-Line menu. As you use the Field Communicator with a Micro Motion transmitter, you will see a number of messages and notes.
  • Page 219 Using a Field Communicator with the transmitter Figure B-1: Field Communicator connection to transmitter terminals A. Field Communicator Ω resistance B. 250–600 C. Transmitter terminals To connect to a point in the local HART loop, attach the leads from the Field Communicator to any point in the loop and add resistance as necessary.
  • Page 220 Using a Field Communicator with the transmitter Figure B-3: Field Communicator connection to multidrop network A. Field Communicator Ω resistance B. 250–600 C. Devices on the network D. Master device Turn on the Field Communicator and wait until the main menu is displayed. If you are connecting across a multidrop network: •...

  • Page 221: Appendix C Default Values And Ranges

    Default values and ranges Appendix C Default values and ranges Default values and ranges The default values and ranges represent the typical factory transmitter configuration. Depending on how the transmitter was ordered, certain values may have been configured at the factory and are not represented in the default values and ranges. Table C-1: Transmitter default values and ranges Type...
  • Page 222 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments Volume factor Density Density damping 1.6 sec 0.0 – 51.2 sec User-entered value is corrected to nearest valid value in a list of preset values.
  • Page 223 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments Special units Base mass unit Base mass time Mass flow conversion factor Base volume unit Base volume time Volume flow conversion factor Variable map- Primary variable Mass flow ping...
  • Page 224 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments 0.00 g/cm Read-only. LSL is calculated based on the sensor size and characterization parameters. 10.00 g/cm Read only. USL is calculated based on the sensor size and characterization parameters.
  • Page 225 Default values and ranges Table C-1: Transmitter default values and ranges (continued) Type Parameter Default Range Comments Frequency Output polarity Active high Last measured value timeout 0.0 seconds 0.0 – 60.0 sec Discrete Out- Source Flow direction put 1 Fault Indicator None Power Internal...
  • Page 226 Default values and ranges Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 227: Appendix D Transmitter Components And Installation Wiring

    Transmitter components and installation wiring Appendix D Transmitter components and installation wiring Topics covered in this appendix: • Installation types • Power supply terminals • Input/output (I/O) wiring terminals Installation types The transmitter was ordered and shipped to be installed in one of two possible configurations.
  • Page 228 Transmitter components and installation wiring Figure D-2: Remote core processor with remote sensor installation The transmitter, core processor, and sensor are all mounted separately. The 4‐wire connection between the transmitter and core processor must be field wired. The 9‐wire connection between the core processor and the sensor must be field wired.

  • Page 229: Power Supply Terminals

    Transmitter components and installation wiring Power supply terminals Figure D-3: Power supply wiring terminals Primary power supply (DC) Power supply jumper to other Model 1500 or Model 2500 transmitters (optional) Configuration and Use Manual...

  • Page 230: Input/Output (I/O) Wiring Terminals

    Transmitter components and installation wiring Input/output (I/O) wiring terminals Figure D-4: I/O wiring terminals mA/HART mA Output, Frequency Output, or Discrete Output Frequency Output, Discrete Output, or Discrete Input Service port or Modbus/RS‐485 Micro Motion Model 2500 Transmitters with Configurable Input/Outputs...

  • Page 231: Appendix E Ne 53 History

    NE 53 history Appendix E NE 53 history NE 53 history Important Not all features and capabilities described in this section may apply to your transmitter or configuration. August 2000, Version 1.x Modification type Change Expansion Added writing of the device tag using Modbus Adjustment Improved communication handling with the HART Tri-Loop prod- Feature...
  • Page 232 NE 53 history December 2001, version 3.x Modification type Change Expansion • Added support for the configurable I/O option board • Software version information available via the display or Modbus • Configurable density cutoff • Additional HART variables can be assigned to QV •...
  • Page 233 NE 53 history September 2006, version 5.x Modification type Change Expansion • Discrete Output assignable as a flow switch • Discrete Output fault indication configurability • Discrete Input support for multiple action assignments • Added support for querying the display LED status via Mod- •...
  • Page 234 NE 53 history Modification type Change Feature • Configurable hysteresis for flow switch • Field Verification Zero added to support Weights & Measures application • Transmitter firmware checksum and core processor firmware checksum assignable as display variables and viewable in Pro- Link February 2018, version 8.x Modification type...
  • Page 235 NE 53 history Modification type Change Adjustment • Sensors that are not straight tube sensors are now correctly identified • The mA Output fixed alert is now set • The Factory Configuration Invalid status bit is now set cor- rectly when connected to a 700 core processor — as the 700 core processor does not support saving and restoring the fac- tory configuration •...
  • Page 236 NE 53 history Modification type Change An AMS Field Device did not respond message no longer displays when the concentration offset is con- figured even though the value was changed When the volume flow type is changed, the new setting is updated from the transmitter without having to rescan the device Feature...
  • Page 237 NE 53 history Configuration and Use Manual...
  • Page 238 © 2018 Micro Motion, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE, ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation Solutions family of companies. All other marks are property of their respective owners.
