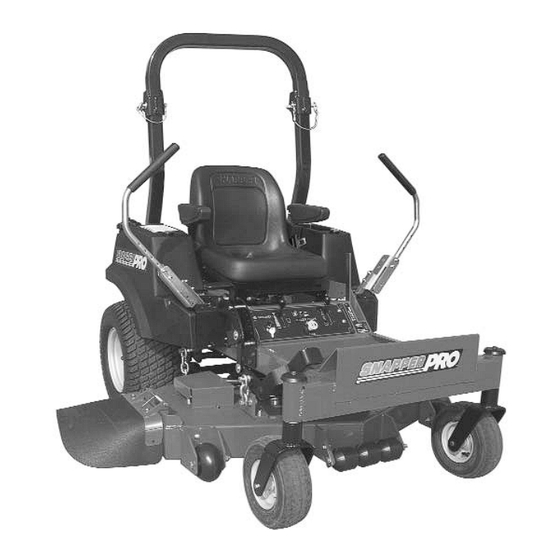

Snapper CZT19481KWV Safety Instructions & Operator's Manual

Commercial mid-mount zero turning hydro drive series 1
Hide thumbs Also See for CZT19481KWV:
Table of Contents

Advertisement

Quick Links

MODEL DESIGNATION
DRIVE SYSTEM TYPE
ENGINE HP *
C - Commercial Mid Mount
ZT - Zero Turning Hydro Drive
Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay
Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 - 4. Remember that all power equip-
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 - 4. Remember that all power equip-
ment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
ment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense!
with the operating instructions and common sense!
NOTE: Specifications are correct at time of printing and are subject to change without notice.
* Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
COPYRIGHT © 2005
SNAPPER - A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
C
ZT
19 - Engine Horsepower
ZERO TURNING
19
48
1
48 - 48" Mower Width
1 - Series Designation
COMMERCIAL
MID-MOUNT
HYDRO DRIVE
SERIES 1
MODELS
CZT19481KWV
KWV
SERIES DESIGNATION
MOWER DECK SIZE
KW - Kawasaki Engine
V - Over Head Valve
MANUAL No. 7100237 (I.R. 7/14/2005)
ENGINE TYPE
