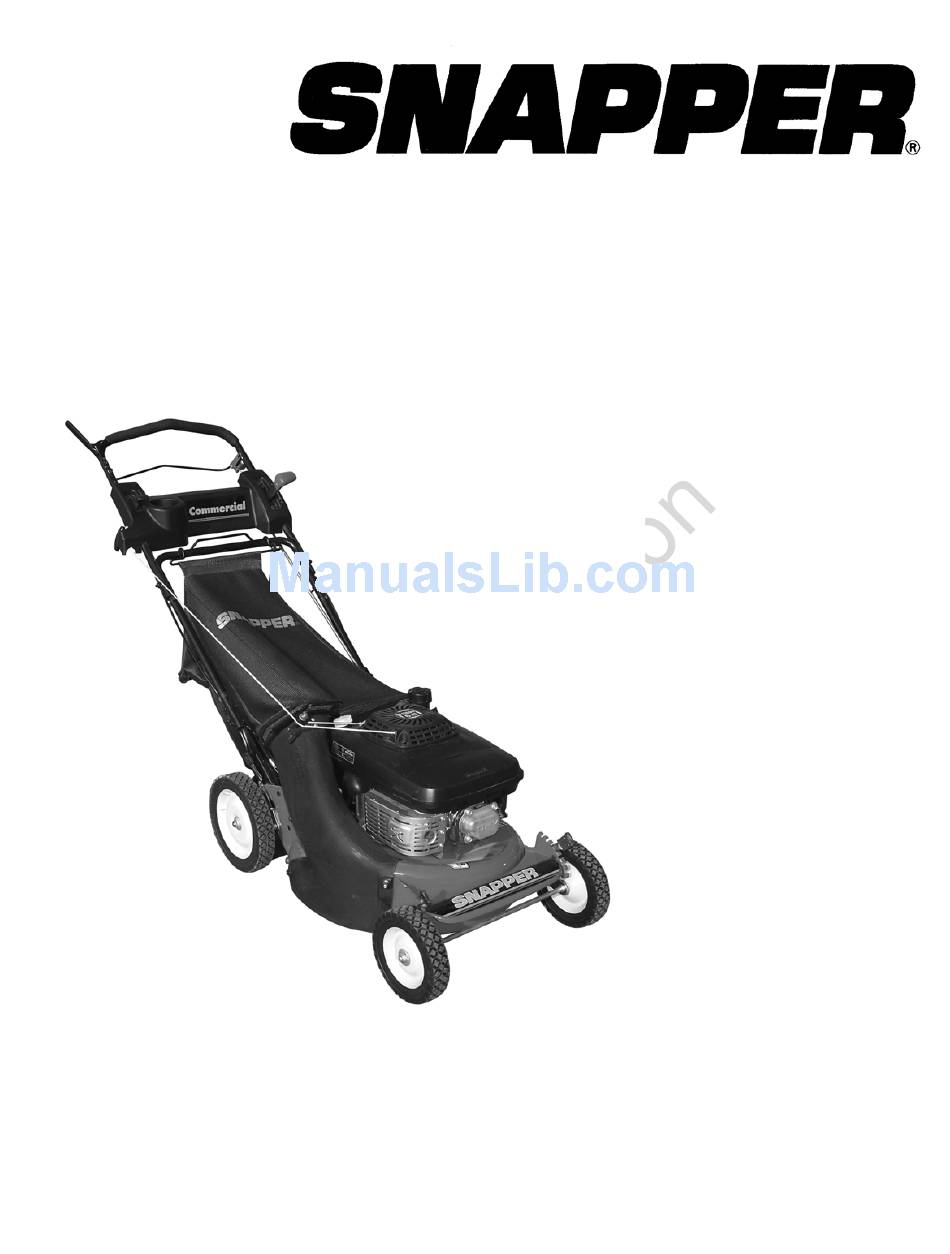

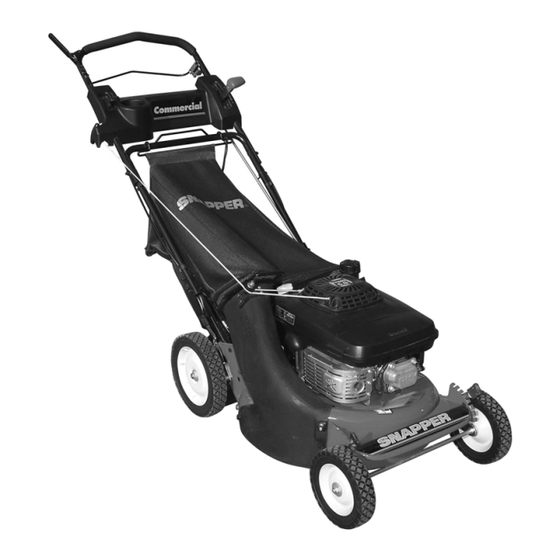

- Page 1 Parts Manual for 22" STEEL DECK WALK BEHIND COMMERCIAL MOWER SERIES 20 Model No. Description 7800849 CP215520HV Briggs & Stratton Yard Power Products Group 535 Macon Road Manual No. 7106167 McDonough, GA, 30253 U.S.A. 800-935-2967 Revision: - 9/30/2013...
-
Page 3: Table Of Contents
Table Of Contents PAGE GROUP Handle Group Wheels, Brackets & Latches Deck, Engine & Blade Group Drive System, Self Propelled Transmission - Differential Group Grass Bag & Adapter Group Decal Group Manual No. 22" STEEL DECK WALK BEHIND 7106167 SERIES 20 TP 400-5566---CW-N... -
Page 4: Handle Group
Handle Group Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 5 Handle Group Item Part No Description 7074411AYP HANDLE, Upper 7023810YP FOAM GRIP, 18.75 7074418AYP BAIL, OPC Control (16.6” Wide) 7034872YP CLIP, Zone Control 7074156AYP HANDLE, Middle 7033985AYP HANDLE, Lower, ADJ, LH 7033986AYP HANDLE, Lower, ADJ, RH 7074140YP PANEL, Control, No Electric Switch 703961 SCREW, 1/4-20 X .550, Self-Tapping, Zinc/Clear (Was 7900067 or 80005286) 7074473AYP...
- Page 6 Handle Group Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20...
- Page 7 Handle Group Item Part No Description 703798 BOLT, 5/16-18 X .50, Carriage, Zinc/Clear (Was 7090731, 725993, 908156MA or 80004563) 690272MA NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear (Was 7091601 or 80002728) 7046707BMYP BRACE, Handle 703301 SCREW, 5/16-24 x 1 Hex Head Cap, GR 5, BZ (Was MT910828MA or 80003532) 9357MA SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5 (Was 1930591, 1960738, 7090595 or 80003531)
-
Page 8: Wheels, Brackets & Latches
Wheels, Brackets & Latches Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 9 Wheels, Brackets & Latches Item Part No Description 0010 703964 WASHER, 7/16” ID, 1” OD, .060 Thk, Flat, ZC/CL (Was 7031961 or 80005597) 0020 7600180YP KIT, Front Wheel Arm Assembly, RH (Was 7051886) 0020-20 7012325YP LATCH, Height 0020-30 703839 BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear (Was 7015761 or 80004422) 0020-50 7031017YP WHEEL ARM, Front, Round Hole, RH, Clear...
-
Page 10: Deck, Engine & Blade Group
Deck, Engine & Blade Group Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 11 Deck, Engine & Blade Group Item Part No Description 0010 703299 SCREW, 5/16-24 X 1.25, Hex Head Cap, GR5, Zinc/Clear (Was 1921982, 3031796 or 80003523) 0020 7010783YP KEY, HI-PRO, #505 0030 703297 RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear (Was 028X64MA, 5025498, 7011791, 720372 or 80002734) 0040 703963...
-
Page 12: Drive System, Self Propelled
Drive System, Self Propelled Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 13 Drive System, Self Propelled Item Part No Description 1753983YP SCREW, 5/16-18 x 5/8 Truss Head Torx 7090391SM WASHER, 5/16, Internal Lock, Zinc/Clear (Was 80003683) 7034179BMYP LINK, Differential, Commercial 703940 WASHER, 0.445 ID X 0.780 OD X 0.025 Thk, Wave, ZC/CL (Was 7011724 or 80005390) 7012354YP BELT, Poly-V 703127...
- Page 14 Drive System, Self Propelled Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20...
- Page 15 Drive System, Self Propelled Item Part No Description 7046784YP BELT, Engine Drive (Stretch) 7073528YP DRIVE DISC, Steel 703971 BUSHING, 0.385 ID X 0.925 OD X 1.018 Thk, ZC/CL (Was 7017696 or 80005376) 690272MA NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear (Was 7091601 or 80002728) 7029025YP SPRING, Extension, .58 x 3.2 703798...
-
Page 16: Transmission - Differential Group
Transmission - Differential Group Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 17 Transmission - Differential Group Item Part No Description 0010 7011110YP SHAFT, Pinion 0040 7011774YP GASKET, Housing 0050 7012495YP GEAR, Differential, 46 Tooth 0060 703933 SPACER, .700 OD x .480 ID x .380 L, ZC/CL (Was 7012500 or 80005383) 0080 7019213YP PULLEY, Poly-V Belt (3.5 O.D.) 0090 7021115YP...
-
Page 18: Grass Bag & Adapter Group
Grass Bag & Adapter Group Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 19 Grass Bag & Adapter Group Item Part No Description ---- USE 7600176 Grass Bag Assembly, W/Slider, 10.75” W, 26” L, No Graphics (Was 7103205) 7050711YP ASSEMBLY, Slider 7042489AYP WELDMENT, Bag Connector 7019247YP WIRE, Rear Bag 7600117YP KIT, Bag Adapter Assembly, W/pulley (Includes items 6 - 13) (Was 7058037) ---- USE 7600117, Bag Adapter (Was 7047081) 7047082AYP...
-
Page 20: Decal Group
Decal Group Manual No. 7106167 22" STEEL DECK WALK BEHIND SERIES 20... - Page 21 Decal Group Item Part No Description 0010 7075471YP DECAL, Speed Shift 0020 7102324YP DECAL, Chute / Deflector FC 0030 7100984YP DECAL, Warning / Danger 0040 7105261YP DECAL, CPSC, French/English 0050 7104148YP DECAL, Logo, Snapper, 7.88” 0060 7029782MA DECAL, OPC Bail, International Symbols 0070 7075524YP DECAL, Throttle Control, KWV...
- Page 24 Parts Manual for 22" STEEL DECK WALK BEHIND COMMERCIAL MOWER SERIES 20 IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
