Snapper FRP216012E, FRPS216015E, NFRP216012E, NFRP216012E Parts Manual

Snapper FRP216012E, FRPS216015E, NFRP216012E, NFRP216012E Parts Manual

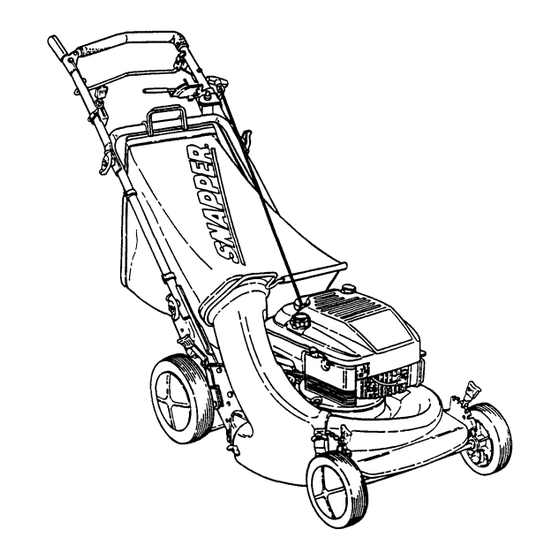

21" steel deck walk behind mowers electric start "fr" series 12 & 15
Hide thumbs Also See for FRP216012E, FRPS216015E, NFRP216012E, NFRP216012E:
Table of Contents

Advertisement

Quick Links

21" STEEL DECK WALK BEHIND MOWERS
Briggs & Startton Yard Power Products Group
Copyright ©
2007
Briggs & Startton Corporation
Milwaukee, WI USA. All Rights Reserved

ELECTRIC START

"FR" SERIES 12 & 15
McDonough, GA, 30253 U.S.A.
Revision 3,
8/15/2007
Parts Manual for
MODEL
FRP216012E (82401)
FRPS216015E (84287)
NFRP216012E (82431)
NFRP216012E (82549)
Manual No.
TP 400-5138-3-WB-N
7006060

Advertisement

Table of Contents
loading

Related Manuals for Snapper FRP216012E, FRPS216015E, NFRP216012E, NFRP216012E

Summary of Contents for Snapper FRP216012E, FRPS216015E, NFRP216012E, NFRP216012E

  • Page 1: Electric Start

    21" STEEL DECK WALK BEHIND MOWERS Briggs & Startton Yard Power Products Group Copyright © 2007 Briggs & Startton Corporation Milwaukee, WI USA. All Rights Reserved Parts Manual for ELECTRIC START "FR" SERIES 12 & 15 McDonough, GA, 30253 U.S.A. Revision 3, 8/15/2007 MODEL...

  • Page 3: Table Of Contents

    PAGE GROUP Handles & Controls (Non-Swivel Wheel Models) Handles & Controls (Swivel Wheel Model) Cutting Deck, Blade Front Wheel Bracket (Non-Swivel Wheel Models) Front Wheel Bracket (Swivel Wheels Model) Rear Wheel Brackets, Latches Front Wheels (Non-Swivel Wheel Models) Front Wheels (Swivel Wheels Model) Rear Wheels (Non-Swivel Wheel Models) Rear Wheels (Swivel Wheel Model) Drive System Self-Propelled...

  • Page 4: Handles & Controls (Non-Swivel Wheel Models

    Handles & Controls (Non-Swivel Wheel Models) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 5 Handles & Controls (Non-Swivel Wheel Models) Item Part No Description 7046914 HANDLE, Upper 7026141 GUIDE, Pull Rope (Right Side) 7090505 SCREW, 1/4-20 x 2 Hex Head Cap, Grade 5 7029036 CONTROL, Throttle 48.0" (Briggs 6 HP California Model) 7024136 CONTROL, Throttle 49.75" (Briggs 6 HP OHV (Over Head Valve) Model) 7091576 NUT, 1/4-20 Hex...
  • Page 6 Handles & Controls (Non-Swivel Wheel Models) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 7 Handles & Controls (Non-Swivel Wheel Models) Item Part No Description 7024890 HANDLE, Middle 7091606 NUT, 5/16-24 Hex Center Lock, Grade 5 7033985 BRACKET, Middle Handle (Left Side) 7033986 BRACKET, Middle Handle (Right Side) 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 7032408 GUIDE, Lower V-Belt 7034892...

  • Page 8: Handles & Controls (Swivel Wheel Model

    Handles & Controls (Swivel Wheel Model) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 9 Handles & Controls (Swivel Wheel Model) Item Part No Description 7046914 HANDLE, Upper 7046465 GUIDE, Pull Rope (Right Side) 7091813 SCREW, 1/4-20 x 1-3/4 Hex Head Cap, Grade 5 7029036 CONTROL, Throttle 48.0" 7091576 NUT, 1/4-20 Hex 7090053 WASHER, 1/4 Internal Tooth Lock 7038478 SECTOR, Speed 7091020...
  • Page 10 Handles & Controls (Swivel Wheel Model) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 11 Handles & Controls (Swivel Wheel Model) Item Part No Description 7091606 NUT, 5/16-24 Hex Center Lock, Grade 5 7033985 BRACKET, Middle Handle (Left Side) 7033986 BRACKET, Middle Handle (Right Side) 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 7032408 GUIDE, Lower V-Belt 7034892 ANCHOR, Speed Control 7090799...

  • Page 12: Cutting Deck, Blade

    Cutting Deck, Blade Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 13 Cutting Deck, Blade Item Part No Description 7058540 DECK, Mower 7043851 BAFFLE, Front 7029193 DECAL, Front Baffle 7024085 WING-NUT, 5/16-18 Nyloc 7090189 WASHER, 5/16 Internal/External Tooth Lock 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 7091214 KEY, Hi-Pro 7090316 BOLT, 5/16-18 x 1-3/4" Carriage, Grade 5 7091169 BOLT, 5/16-18 x 1-1/8"...

  • Page 14: Front Wheel Bracket (Non-Swivel Wheel Models

    Front Wheel Bracket (Non-Swivel Wheel Models) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 15 Front Wheel Bracket (Non-Swivel Wheel Models) Item Part No Description 7051886 ASSEMBLY, Arm (Right Wheel) 7051885 ASSEMBLY, Arm (Left Wheel) (Not shown) 7015761 BOLT, 5/16-18 x 3/4" Shoulder 7031017 ARM, Right Wheel (Round Hole) 7031016 ARM, Left Wheel (Square Hole) 7011791 RETAINER, 5/16 Bolt 7012325...

  • Page 16: Front Wheel Bracket (Swivel Wheels Model

    Front Wheel Bracket (Swivel Wheels Model) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 17 Front Wheel Bracket (Swivel Wheels Model) Item Part No Description 7057782 WELDMENT, Front Bracket 7079577 SCREW, 1/4-20 x 1-1/2" Hex Cap 7090372 NUT, 1/4-20 Hex Lock 7046629 BRACKET, Swivel Lock 7046668 SPRING, Torsion 7090505 BOLT, 1/4-20 x 2" Hex 7027344 WASHER, 41/64"...

  • Page 18: Rear Wheel Brackets, Latches

    Rear Wheel Brackets, Latches Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 19 Rear Wheel Brackets, Latches Item Part No Description 7012312 BEARING, 9/16 7091012 SCREW, #10-32 x 3/8" Self-Tapping (Torx) 7035717 LATCH, Height Adjusting (Long) 7091576 NUT, 1/4-20 Hex, Grade 5 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 7091604 BOLT, 1/4-20 x 1/2 Short Neck Carriage, Grade 5 7090053 WASHER, 1/4 Internal Tooth Lock 7054230...

  • Page 20: Front Wheels (Non-Swivel Wheel Models

    Front Wheels (Non-Swivel Wheel Models) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 21 Front Wheels (Non-Swivel Wheel Models) Item Part No Description 7029010 WHEEL, Front, 8 x 1.75" Plastic 7031961 WASHER, 7/16 x 1" O.D. Flat 7012309 BUSHING, Axle 7090377 NUT, 7/16-20 Hex 7017829 PLUG, Wheel Footnotes: 21" STEEL DECK WALK BEHIND MOWERS "FR"...

  • Page 22: Front Wheels (Swivel Wheels Model

    Front Wheels (Swivel Wheels Model) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 23 Front Wheels (Swivel Wheels Model) Item Part No Description 7046667 PIN, Wheel 7046708 PIN, Swivel Wheel Lock 7046990 WHEEL, 8 x 1.75 Plastic 7046666 SPACER, Wheel Footnotes: 21" STEEL DECK WALK BEHIND MOWERS "FR" SERIES 12 & 15 Note Manual No. 7006060 TP 400-5138-3-WB-N...

  • Page 24: Rear Wheels (Non-Swivel Wheel Models

    Rear Wheels (Non-Swivel Wheel Models) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 25 Rear Wheels (Non-Swivel Wheel Models) Item Part No Description 7029011 WHEEL, Rear, 10 x 1.75 Plastic 7031961 WASHER, 7/16 x 1 O.D. Flat 7090377 NUT, 7/16-20 Hex 7017829 PLUG, Wheel Footnotes: 21" STEEL DECK WALK BEHIND MOWERS "FR" SERIES 12 & 15 Note Manual No.

  • Page 26: Rear Wheels (Swivel Wheel Model

    Rear Wheels (Swivel Wheel Model) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 27 Rear Wheels (Swivel Wheel Model) Item Part No Description 7035740 WHEEL, 10 x 1.75 Plastic 7031961 WASHER, 7/16 x 1" O.D. Flat 7090377 NUT, 7/16-20 Hex (Thin) Footnotes: (Always replace wheel nut #9-0377 when removing or replacing wheel.) 21" STEEL DECK WALK BEHIND MOWERS "FR"...

  • Page 28: Drive System Self-Propelled

    Drive System Self-Propelled Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 29 Drive System Self-Propelled Item Part No Description 7012354 BELT, Poly-Vee 7034179 LINK, Differential 7051921 ASSEMBLY, Clutch Idler 7032832 ARM, Clutch Idler 7012124 PULLEY, Idler 7091025 SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5 7090303 NUT, 1/4-28 Hex Top Lock 7012117 BUSHING, 3/8 I.D.
  • Page 30 Drive System Self-Propelled Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 31 Drive System Self-Propelled Item Part No Description 7032831 CONNECTOR, Transfer Rod 7061275 KIT, Drive Disc Assembly 7017696 BUSHING 7029025 SPRING (Wheel Drive & Idler) 7032116 ARM, Idler 7013847 RETAINER, 3/8 Bolt 7090947 BOLT, 1/4-20 x 1-3/8" Carriage, Grade 5 7090372 NUT, 1/4-20 Hex Center Lock, Grade 5 or B 7052987 ASSEMBLY, Deck Bracket...

  • Page 32: Transmission (Differential

    Transmission (Differential) Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 33 Transmission (Differential) Item Part No Description 7059070 ASSEMBLY, Transmission 7092062 NUT, 5/16-24 Hex Lock, Grade C 7014263 WASHER, Spring 7019213 PULLEY, Poly-Vee Belt 7011724 WASHER, Spring 7053942 ASSEMBLY, Housing Right 7029034 HOUSING, Right Side 7014155 SCREW, 5/16-24 x 1-1/8" Rib Neck, Grade 5 7012314 SEAL, 5/8 I.D.

  • Page 34: Decals I

    Decals I Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 35 Decals I Item Part No Description 7026384 LOGO, Recycling Mulcher (Ninja) 7024211 DECAL, Blade Control 7024087 DECAL, Speed Sector 7013010 DECAL, Danger 7072921 DECAL, Convertible 7029057 DECAL, Medallion- Deck 7029470 DECAL, Patent Numbers 7029193 DECAL, Front Baffle Footnotes: 21" STEEL DECK WALK BEHIND MOWERS "FR"...

  • Page 36: Decals Ii

    Decals II Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 37 Decals II Item Part No Description 7028921 DECAL, Big Six (Electric Start) 7072921 DECAL, Feature Compliance 7046714 DECAL, Snapper 7046720 DECAL, Chute/Deflector 7046357 DECAL, Warning Instructions Footnotes: 21" STEEL DECK WALK BEHIND MOWERS "FR" SERIES 12 & 15 Note Was 24380 Manual No.

  • Page 38: Electric Start Components

    Electric Start Components Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 39 Electric Start Components Item Part No Description 7067012 BATTERY, 12 Volt, 35 CCA 7015488 HARNESS, Battery 7043977 SCREW, #10-24 x 1/2 Hex Head Cap 7090932 NUT, #10 24 Square 7011138 KEY, (Set of Two) 7023506 BEZEL 7034896 BRACKET, Ignition Switch 7029080 COVER, Switch 7012685...

  • Page 40: Side Chute, Adapter

    Side Chute, Adapter Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 41 Side Chute, Adapter Item Part No Description 7016050 ADAPTER, Grass Bag 7042965 KIT, Side Chute 7029149 COVER, Mulching (21" Cutting Deck) 7024085 WING-NUT, 5/16-18 Nyloc 7090122 WASHER, 3/8" Flat 7011791 RETAINER, 5/16 Bolt 7091508 BOLT, 5/16-18 x 3/4 Short Neck Carriage, Grade 5 7024340 SPACER 7090951...

  • Page 42: Grass Bag - Accessory

    Grass Bag - Accessory Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 43 Grass Bag - Accessory Item Part No Description 7061919 KIT, Grass Bag Catcher 7059322 ASSEMBLY, Grass Bag 7074425 BAG, Door Type (Wide) (Black) 7051906 ASSEMBLY, Bag Wire 7042489 CONNECTOR, Grass Bag 7016050 ADAPTER, Bag Footnotes: 21" STEEL DECK WALK BEHIND MOWERS "FR"...

  • Page 44: Thatcherizer - Accessory

    Thatcherizer - Accessory Manual No. 7006060 21" STEEL DECK WALK BEHIND MOWERS TP 400-5138-3-WB-N "FR" SERIES 12 & 15...
  • Page 45 Thatcherizer - Accessory Item Part No Description 7061256 KIT, Thatcherizer (Includes items listed below) 7032891 ** LATCH, Frame Attachment 7026572 BAR, Mount (Right Hand) 7026573 BAR, Mount (Left Hand) 7018499 ROD, Tine 7018700 SUPPORT, Wheel 7019948 TRAY, Tine 7018496 KIT, Tine Thatching Spring 7014100 ** BUSHING, Wheel Adjuster 7018493...
  • Page 48 Parts Manual for 21" STEEL DECK WALK BEHIND MOWER ELECTRIC START "FR" SERIES 12 & 15 IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs &...
