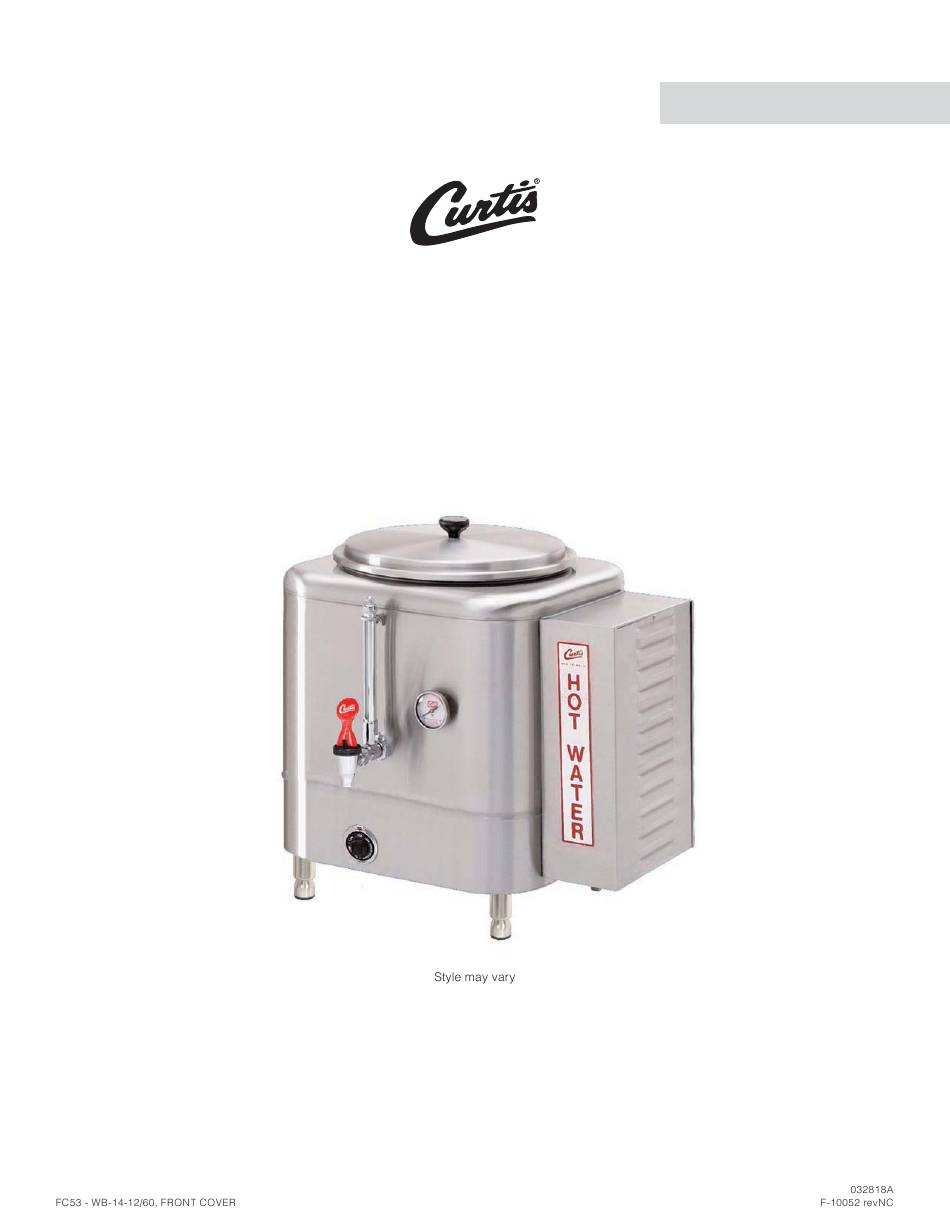

- Page 1 USER GUIDE 14 Gallon Electric Water Boiler READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
..............................CI16 ...................................................................................ES96 ..............................................................................................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Fs53
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS53 Key Features • • WB-14-12 10.0 Gallon - domestic 1 PH 120/220 V 17.3/31.8 A 2 X 3500 W 2W/3W + G 2080/7000 W 50/60 Hz 6.1/21.0 WB-14-60 10.0 Gallon - export 1 PH 230 V 33.3 A... -
Page 4: Is2
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • • • This appliance must not be cleaned by water jet. • instruction concerning use of the appliance in a safe way and if they understand the hazards involved. •...
-
Page 6: Ii20
INSTALLATION INSTRUCTIONS II20 WARNING: WARNING: properly grounded. NOTICE: SPECIFICATIONS section. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... -
Page 7: Ii26
INSTALLATION INSTRUCTIONS II26 Installation NOTICE: Before proceeding, make sure that the counter is capable of supporting at least 170 lbs. to allow for the water boiler at full capacity. Leveling WARNING: Use the leveling legs to level the unit only. Do not use them to adjust the height. Do not extend them higher than necessary. - Page 8 INSTALLATION INSTRUCTIONS II26 Connecting the Power Cable (220 - 240 Volt Operation) WARNING: Turn off power to the junction box at the circuit breaker panel before connecting the power cable. Lock out and tag the circuit breaker. 11 Connect the power cable wires to the terminals in the junction box.
-
Page 9: Oi39
OPERATING INSTRUCTIONS OI39 WARNING: AVOID SCALDING. This unit dispenses hot water. The unit must be connected to power and the thermostat needs to be set to the desired temperature. Style varies with model Hold a cup under the faucet The thermometer Turn the thermostat knob and pull forward on the handle indicates the current water... -
Page 10: Ci16
CLEANING INSTRUCTIONS CI16 WARNING: HOT SURFACES - To avoid injury, allow the unit to cool 30 minutes before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. - Page 11 20.192 [51.29 cm] 23.58 in 23.576 [59.9 cm] 3.38 in 3.414 [8.6 cm] 11.61 in 3.51 in 14.58 in 2.25 in 11.613 2.253 2.24 in 14.576 2.240 [29.5 cm] [8.9 cm] [37.0 cm] [5.72cm] [5.7 cm] WB-14-12/60, ROUGH-IN DRAWING 012618NC...
- Page 12 ILLUSTRATED PARTS/RECOMMENDED PARTS IP98 WB-14-12/60 - Main Chassis - Exploded View WB14-12/60, ILLUSTRATED PARTS/RECOMMENDED PARTS 042518A...
- Page 13 ILLUSTRATED PARTS LIST IP98 WB-14-12/60 - Main Chassis - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-1901A SHANK, FAUCET W/SHIELD BASE WC-2100 GAUGE GLASS, ASSY 7” WC-5602 LID, W/KNOB TC-10 KIT,ELEMENT HEATING 3.5KW 220V W/JAM...
- Page 14 ELECTRICAL SCHEMATICS ES96 WB-14-12 WB-14-12/60, ELECTRICAL SCHEMATIC 042318A...
-
Page 15: Es96
ELECTRICAL SCHEMATICS ES96 WB-14-60 ELECTRICAL RATING TABLE # of Tank Element Voltage Amps Wa s Hertz # of Tank Model Conductor Phase Ra ng Elements Wires WB-14- 33.3 7650 3500W/220V WB-14-60- WB-14-12/60, ELECTRICAL SCHEMATIC 042318A... - Page 16 TROUBLESHOOTING GUIDE TG22 WARNING: Electric Shock Hazard - Scald and Burn Hazard - NOTICE: Troubleshooting Guidelines • • ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction No Power Water Tank Does Not Fill IMPORTANT:...
- Page 17 TROUBLESHOOTING GUIDE TG22...
- Page 18 TROUBLESHOOTING GUIDE TG30 Water Does Not Heat At All If the water heats, but is not hot enough, see Water Not Hot Enough. • The following steps are performed with the control box toggle switch in the ON position. Check for power across the terminals of the heating element(s). If power is being supplied, remove the wires and check for an open heating element (nominal resistance is 13 Ohms).
- Page 19 TROUBLESHOOTING GUIDE TG37 Thermostat Adjustment The thermostat is factory set to cut off at 200ºF. If necessary, adjust it as follows: Turn the main power switch OFF. Rotate the thermostat knob to the right, to the BOIL position. Pull off the knob. In the thermostat stem, locate the tiny adjustment screw.
- Page 20 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
