Nectre Fireplaces MEGA LE Operating Instructions Manual

Freestanding wood heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Operating Instructions

MEGA LE Model
Do Not Throw Away
Please keep these Operating Instructions in a safe place for future reference

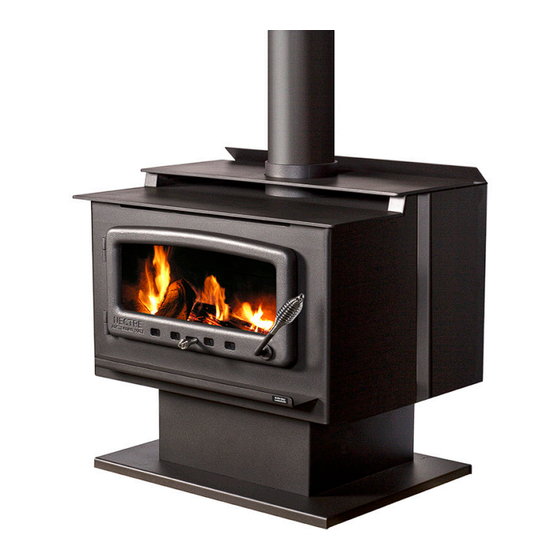

The model shown here is the Mega LE Pedestal
Pecan Engineering Pty Ltd proudly supports
the activities of Landcare Australia through its
membership of the AHHA

Advertisement

Table of Contents
loading

Related Manuals for Nectre Fireplaces MEGA LE

Summary of Contents for Nectre Fireplaces MEGA LE

  • Page 1: Operating Instructions

    MEGA LE Model Do Not Throw Away Please keep these Operating Instructions in a safe place for future reference The model shown here is the Mega LE Pedestal Pecan Engineering Pty Ltd proudly supports the activities of Landcare Australia through its...
  • Page 2 The MEGA LE freestanding wood heater was shown to meet the AS 4013/NZS 7403 Section 1.2.2(b) - HEAT OUTPUT EXCEEDS 25kW Firstly check all local building and heating regulations. Different States, Territories and some Municipals have varying regulations about the installation and operation of wood stoves, your installer should be aware of these.
  • Page 3 - NOTE when operating the MEGA LE in the open position for Top air slide extended duration will reduce the efficiency. Should Bottom air slide (Turbo Boost) always be closed when leaving the room.

  • Page 4: Recommended Fuels

    RECOMMENDED FUELS RUNNING THE APPLIANCE Burn only seasoned hardwood timber with Top air slide regulates the burn time and heat moisture content of less than 20%. Newly cut output depending on the desired warmth. wood should be allowed to dry (season) for 12 to 18 months before burning.

  • Page 5: Burning Tips

    RUNNING THE APPLIANCE BURNING TIPS Reloading with more wood Fuel quality • Open top air slide before opening the 1. Use wood with a moisture content of less door. than 20%. Wood should not feel moist • Rake or break up any existing coals on the or damp, should not have moss or fungal base of the firebox.

  • Page 6: Flue / Chimney Fire

    FLUE CLEANING FLUE / CHIMNEY FIRE If a flue/chimney fire occurs: It is recommended that a thorough check of the flue is done prior to the season for any close top and bottom air slides fully to smother the fire. build-ups (creosote) or any obstructions.

  • Page 7: Maintenance And Servicing

    MAINTENANCE and SERVICING REPLACEMENT OF FIREBRICKS REPLACEMENT OF BRICK RETAINER • Remove the side and rear fire bricks The purpose of the firebricks in the appliance before fitting the brick retainer. is to increase thermal mass and to guarantee • With the retainer orientated with the the longevity of the steel firebox.
  • Page 8 MAINTENANCE and SERVICING REPLACEMENT OF BAFFLE PLATES REPLACEMENT OF ASH PLATE The MEGA LE is fitted with two thick steel • The ash plate acts to protect the front of baffle plates which help to retain the heat the firebox below the door opening from in the firebox by lengthening the path of the the hot coal bed and fire.

  • Page 9: Fitting A New Door Glass

    MAINTENANCE and SERVICING FITTING A NEW DOOR GLASS REPLACEMENT SPARE PARTS LIST FIREBRICKS This task may be easier with the door removed 21 x full bricks – 234(h) x 118(w) x 40(d)mm from the appliance and laid horizontally. To 4 x half bricks – 175(h) x 115(w) x 40(d)mm replace the door glass: •...

  • Page 10: Warranty

    WARRANTY Pecan Engineering Pty. Ltd. warrants this stove to be able to operate under normal use and service and within 10 years from the date of the original purchase on the terms herein shall repair or replace without cost to the original customer any part thereof which shall be returned to our factory, transportation charges prepaid and which our inspection shows would prevent operation.
