Oregon Scientific WMR86NSX User Manual

Professional colour weather station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Professional Colour Weather Station
Model: WMR86NSX
USER MANUAL
CONTENTS
Introduction ............................................................... 1
Packaging Contents ................................................. 1
Base Station ........................................................ 1
Wind Sensor ........................................................ 1
Temperature & Humidity Sensor .......................... 2
Rain Gauge .......................................................... 2
Accessories - Sensors ............................................. 2
Overview .................................................................... 2
Front View ............................................................ 2
Back View ............................................................ 2
LCD Display ......................................................... 3
Wind Sensor ........................................................ 4
Rain Gauge .......................................................... 4
Getting Started .......................................................... 4
Set Up Remote Wind Sensor ............................... 4
Set Up Rain Gauge .............................................. 5
Set Up Base Station ............................................ 5
Connect AC Adapter ............................................ 5
Verify Connection ..................................................... 5
Wind Sensor ........................................................ 5
Temperature / Humidity Sensor ........................... 6
Rain Gauge .......................................................... 6
Mounting / Placing Of Sensors ............................... 6
Wind Sensor ........................................................ 6
Temperature / Humidity Sensor ........................... 6
Rain Gauge .......................................................... 6
Clock Reception ....................................................... 7
Clock / Calendar ....................................................... 7
Moon Phase .............................................................. 7
Auto Scanning Function .......................................... 7
Weather Forecast ..................................................... 8
Temperature And Humidity ...................................... 8
Temperature And Humidity Trend ........................ 8
Wind Chill / Direction / Speed .................................. 8
Uvi / Barometer / Rainfall ......................................... 9
UV Index .............................................................. 9
Barometer ............................................................ 9
Rainfall ................................................................. 9
Backlight ................................................................. 10
Reset ........................................................................ 10
Specifications ......................................................... 10
Precautions ............................................................. 11
About Oregon Scientific ........................................ 11
EU Declaration Of Conformity ............................... 11
Disposal information for users ............................. 11
WMR86NSX_IM_EN R10.indd 1

INTRODUCTION

Thank you for selecting the Oregon Scientific™ Weather
Station (WMR86NSX).
The base station is compatible with other sensors. To purchase
additional sensors, please contact your local retailer.
Sensors with this logo
NOTE Please keep this manual handy as you use
your new product. It contains practical step-by-step
instructions, as well as technical specifications and
warnings you should know about.
NOTE To download an electronic version of the user
manual, please visit
http://global.oregonscientific.com/customerSupport.php

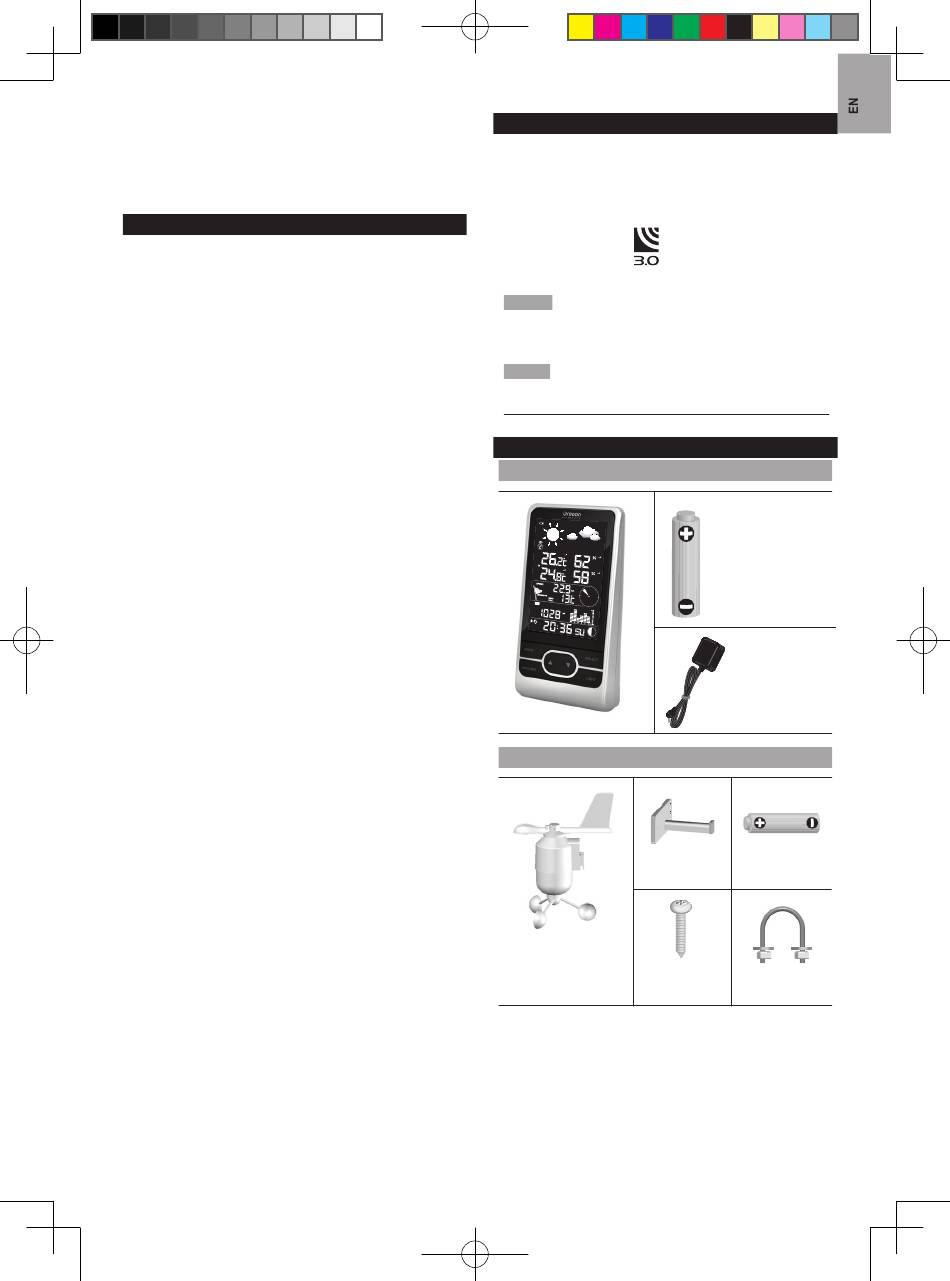

PACKAGING CONTENTS

BASE STATION

1 x Base Station

WIND SENSOR

1 x sensor
connector
1 x Wind Sensor (1
x Wind Vane Above
and 1 x Anemometer
4 x Screws
Below)
1
are compatible with this unit.
3 x AA UM-3
1.5V batteries
1x Power
Adapter
2 x AA UM-3
1.5V batteries
1 x Round
(Type A)
U- bolt
