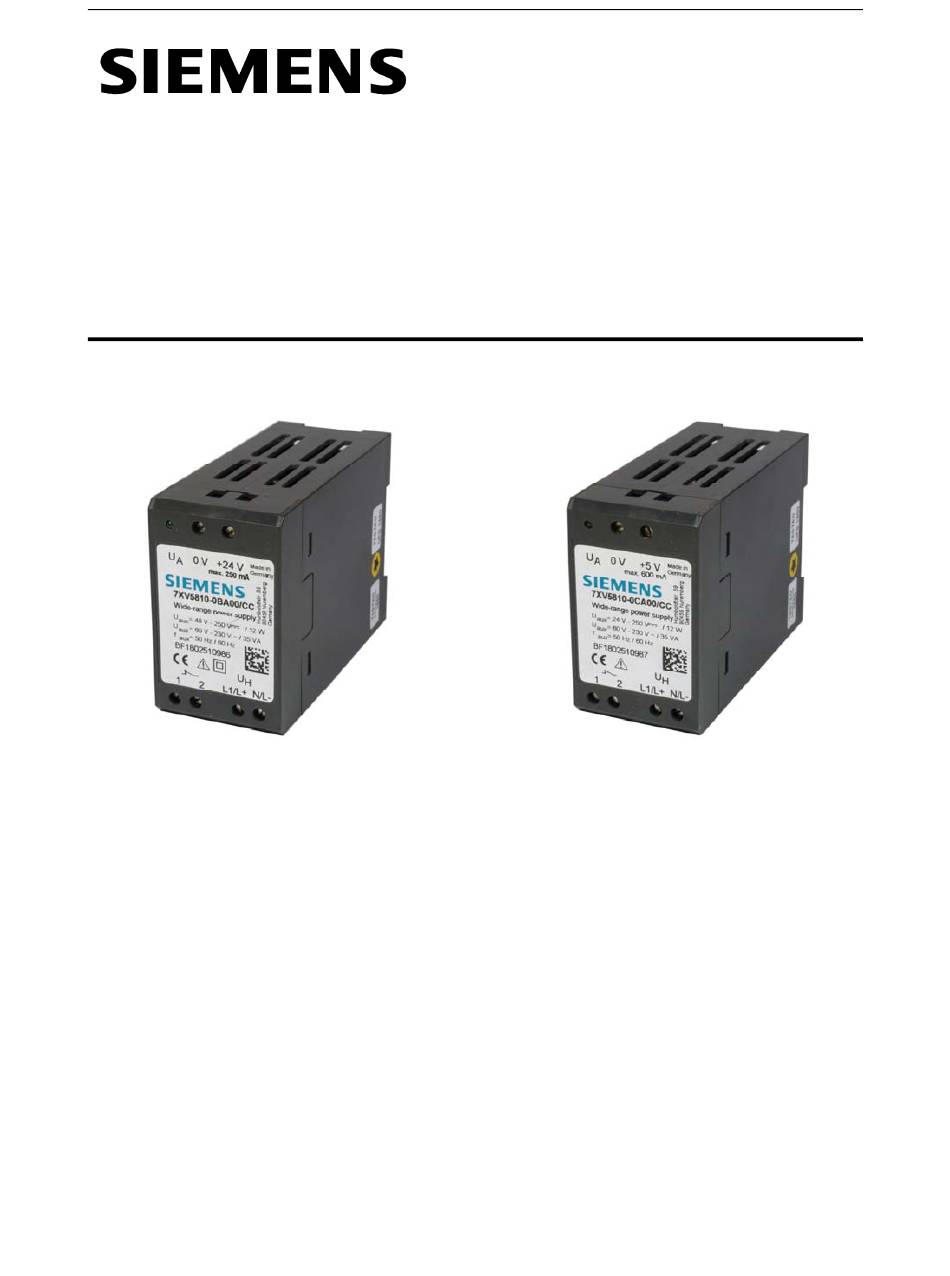

- Page 1 Wide-range power supplies 7XV5810 0BA00 (24 V) 7XV5810 0CA00 (5 V) Operating Instructions...
-
Page 2: Table Of Contents
Commissioning ........................9 1.17 Maintenance ..........................10 TECHNICAL DATA ........................11 Power supply 7XV5810 0BA00 (24 V) ..................11 Power supply 7XV5810 0CA00 (5 V) ..................12 Combined specifications ......................13 Dimension Drawings .........................18 ... -
Page 3: General Instructions
If further information is desired or in case special problems should arise, which are not treated adequately in this document, it is possible to obtain additional details from the local Siemens office or from the addresses stated in the back of this manual. -
Page 4: Safety Notes
C53000-B1140-C602-1 Safety Notes These operating instructions contain notes that are to be complied with for your personal safety as well as to avoid property damages. These notes are marked by a triangular warning symbol and the different degrees of danger are categorized as follows: Danger Disregard of the corresponding precautionary measures will... -
Page 5: General Hints
Faultless and safe operation of the product require proper transport, storage, mounting and installation as well as careful operation and maintenance. Customer Support For any questions concerning your system, please contact your Siemens representative. The Siemens Customer Support Center provides around-the-clock support. Phone: +49 (1805) 24-7000... -
Page 6: Statement Of Conformity
EMC Council Directive 2014/30/EU This conformity has been established by means of tests conducted by Siemens AG according to the Council Directive in agreement with the generic standard EN 60255-26 for the EMC directives, and with the standard EN 61010-1 for the low-voltage directive. -
Page 7: Exclusion Of Liability
You are invited to send us your suggestions for improvement. Copyright Copyright Siemens AG 2018. All rights reserved. Transmission or reproduction of this document, as well as the use and forwarding of its contents is not permitted without express written authority. Offenders will be liable for damages. -
Page 8: Operating Instructions
C53000-B1140-C602-1 Operating Instructions 1.10 Scope of Application The switched mode Wide-range power supply unit has a universal scope of application due to its extremely wide input voltage range. The power supply unit is designed for low power consumers (output power up to 3W) that require a mains buffering time of more than 50ms. -
Page 9: Connection
C53000-B1100-C602-1 1.15 Connection The connection of the supply voltage is to be carried out according to VDE0100 and VDE0160. The auxiliary supply of the device is to be provided with an external disconnector (switch) for the safety isolation of the power supply and with a safety device (fuse), 2 AT or 4 AT. -
Page 10: Maintenance
C53000-B1140-C602-1 1.17 Maintenance The wide-range power supplies require no maintenance. For cleaning, please use a dry and free of fuzz rag. Note Do not use any liquid agents or substances for cleaning. Seite 10 von 20 Operating Instructions 7XV5810 0xA00... -
Page 11: Technical Data
C53000-B1100-C602-1 Technical Data Power supply 7XV5810 0BA00 (24 V) Input Power supply (V ) – Direct-current voltage (DC) 24 V to 250 V (±20 %) Ripple allowed for the DC input voltage 15 % 12 W Power input < 15 A Maximum inrush current at ≤... -
Page 12: Power Supply 7Xv5810 0Ca00 (5 V)
C53000-B1140-C602-1 2.2 Power supply 7XV5810 0CA00 (5 V) Input Power supply (V ) – Direct-current voltage (DC) 24 V to 250 V (±20 %) Ripple allowed for the DC input voltage 15 % Power input < 15 A Maximum inrush current at ≤ 110 V Maximum inrush current at 220 V to ≤... -
Page 13: Combined Specifications
C53000-B1100-C602-1 Combined specifications Environmental conditions (operate only in rooms) Ambient Temperatures Temperature recommended during the -5 °C to +55 °C (23 °F to 131 °F) operation Temperature during the transport and the -25 °C to +70 °C (-13 °F to 158 °F) storage Humidity mean value per year... - Page 14 C53000-B1140-C602-1 Safety Acc. to DIN EN 61010 Part 1 Overvoltage category Degree of pollution Fire stability Class Acc. to UL 94 Insulation tests EN61010 IEC 255-5: ANSI/IEEE C37.90.0 each Voltage test (routine test) DC 5 kV / 1 s (with bypass capacitors) - Auxiliary power to fault relay AC 3,51 kV/50 Hz/1 s - Auxiliary power to RS232 interface...
- Page 15 C53000-B1100-C602-1 EMC tests on interference immunity IEC 60255-26 (Product standard) Damped oscillatory waves 100 kHz and 30 surges per minute; IEC 60255-26, IEC 61000-4-18, Class III Test duration 1 minute VDE 0435 part 303, Class III 2,5 kV longitudinal voltage; 1 kV transverse voltage Electrostatic discharge (ESD) 6 kV contact discharge...
- Page 16 C53000-B1140-C602-1 Line conducted HF, amplitude modulated 10 V; 150 kHz to 80 MHz; IEC 61000-4-6, EN 61000-6-5 80 % AM; 1 kHz Immunity to power frequency magnetic 30 A/m, permanent; 300 A/m during 3 s; field 50 Hz EN 61000-4-8, Class IV Mechanical stress test Vibration and shock during operation sinusoidal...
- Page 17 C53000-B1100-C602-1 Vibration and shock during transport and storage sinusoidal Vibration 5 Hz to 8 Hz: ± 7,5 mm amplitude; IEC 60068-2-6 8 Hz to 150 Hz: 2 g acceleration IEC 60255-21-1, Class 2 Frequency sweep rate 1 octave/min 20 cycles in 3 axes orthogonal semi-sinusoidal Shock Acceleration 15 g, duration 11 ms, every...
-
Page 18: Dimension Drawings
C53000-B1140-C602-1 Dimension Drawings Figure 1: Dimension Drawings (in mm) Seite 18 von 20 Operating Instructions 7XV5810 0xA00... -
Page 19: Connection Terminals 7Xv5810-0Ba00 (24 V)
C53000-B1100-C602-1 Connection terminals 7XV5810-0BA00 (24 V) Terminal Description Connection Output voltage V Consumer ≤ 6 W For V = 24 V to 35 V, max. 3 W Output voltage U Consumer ≤ 6 W For V > 35 V, max. 6 W Voltage control relay K1 1 (break contact) Voltage control relay K1... -
Page 20: Ordering Data
C53000-B1140-C602-1 Ordering Data Name Ordering-Nr. Wide-range power supply 7 X V 5 8 1 0 - A 0 0 24 V Table 3: Ordering Data of the wide-range power supplies Seite 20 von 20 Operating Instructions 7XV5810 0xA00...
