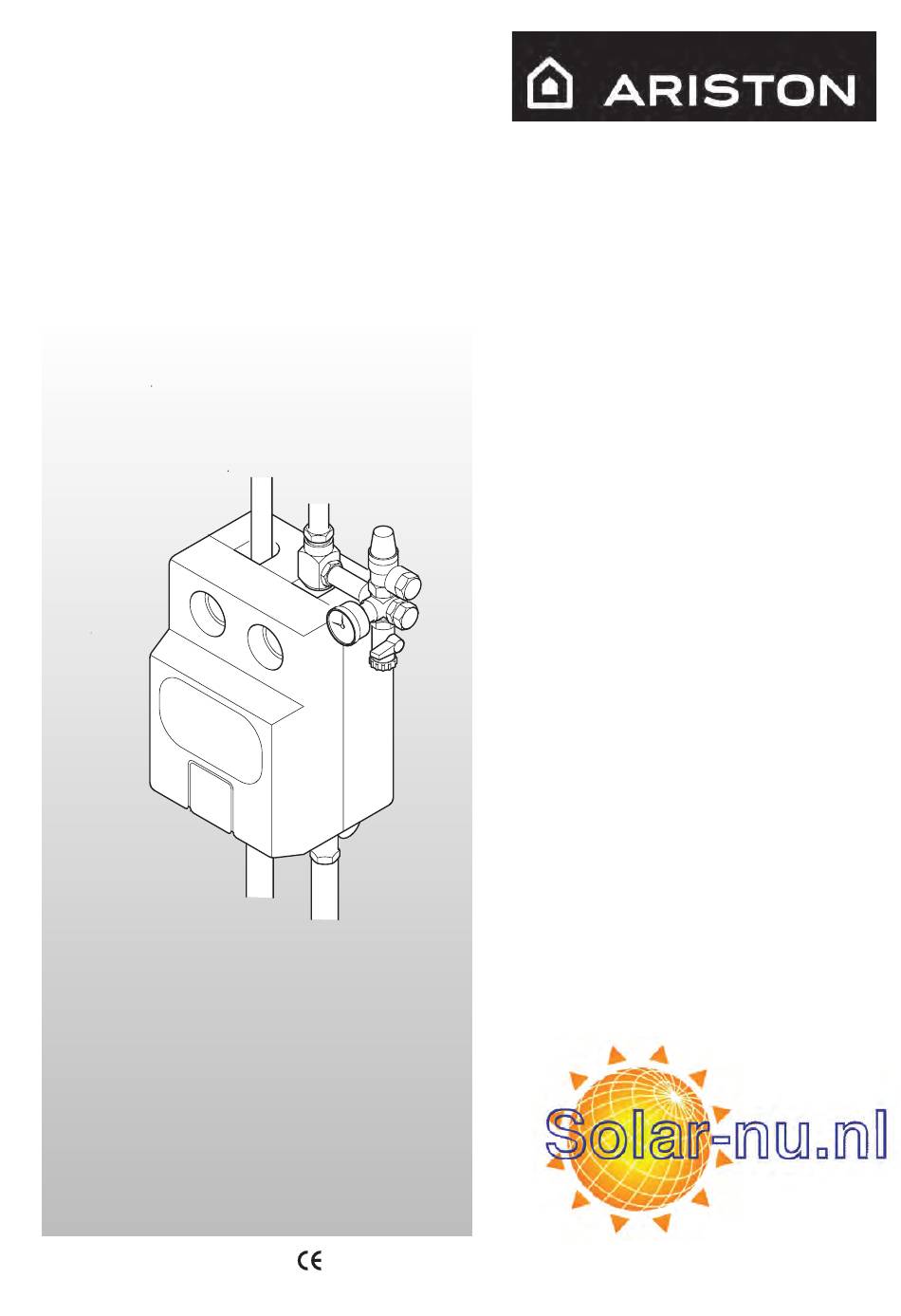

- Page 1 SOLARcomfort Solar Hot Water Systems Instructions for Installation Pump Group and Servicing LEAVE THESE INSTRUCTIONS WITH THE END USER Country of Destination GB/IE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMMISSIONING SYSTEM ... 23 GENERAL INFORMATION ....2 6.1 P ........23 1.1 G .......... 2 FILL HECK UARANTEE 6.2 F 1.2 S ........ 2 LUSHING AND ILLING THE YSTEM USING YSTEM ONTENTS ..........24 1.3 S .... -
Page 3: General Information
Solar domestic hot water heating systems must be installed to comply with the current Building Regulations, British Standards and any applicable local regulations. 1.1 G The SOLARcomfort Pump Group is guaranteed for 2 years against UARANTEE munufacturing defect - see terms and conditions of guarantee on back page. -
Page 4: 1.4 Solar

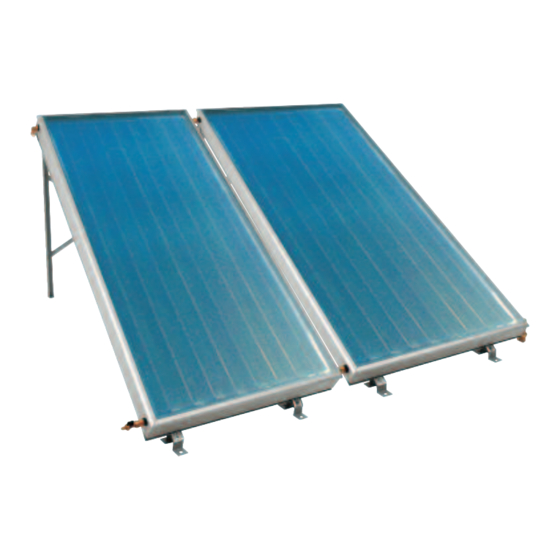

The solar collectors are heated by the sun’s rays. The heat generated is YSTEM ORKS stored in a hot water storage cylinder e.g. an Ariston Primo twin coil stainless steel cylinder. The AST 100 Solar Controller continually compares the temperature of the water within the cylinder with the temperature of the solar collectors. - Page 5 Roof mounted collectors (two collector system shown) Air vent Energy Monitoring Sensor S4 (option) Temperature Sensor S1 Ariston ITSI 210/300 twin coil cylinder AST 100 Controller PR Valve Pump group Temperature Expansion Sensor S3 vessel Upper coil heated by boiler...
- Page 6 Flow Return 1. Insulated Cover 10. Circulating Pump 2. Flow from Solar Collectors 11. System Fill and Drain Point 3. Flow Temperature Gauge 12. Fill and Drain Shut Off Valve 4. Flow Shut Off Valve 13. Flow Limiter c/w non return valve -red Knob 14.
-
Page 7: Safety
TYFOCOR LS Heat Transfer Fluid. Although non-toxic it should not be swallowed. Refer to label on its container for storage and safety information. A detailed technical specification is available from Ariston on request. Caution SOLARcomfort should be installed and commissioned by approved contractors. -
Page 8: Technical Data
PUMP MODULE TECHNICAL DATA Pipe connection 22mm Reducers supplied 15mm Pump type 15/40 Maximum operating pressure 0.6MPa Electrical Cable 1.0mm² 3 core heat resistant flex 3093Y to 85°C Cover Moulded polystyrene AIR SEPARATOR MODULE Pipe connection 22mm Reducers supplied 15mm Maximum operating pressure 0.6MPa Cover... -
Page 9: Component List
3.2 C Listed below are all the components required to fit the pump group. OMPONENT Item Description Pump Group Flow Limiter Components (see 5.1) 1 set Wall Mounting Bracket Screw Wall Plug Expansion Vessel 25l standard (35l option) Expansion Vessel Fixings Flexible Connector . -
Page 10: Pump Group Dimensions
3.3 P ROUP IMENSIONS . 3.3 ROUP IMENSIONS 3.4 E XPANSION ESSEL IMENSIONS Maximum pressure 10 bar Pre-charge pressure 2.5 bar 25 Litre 35 Litre (standard) (optional: code 12002737) . 3.4 XPANSION ESSEL IMENSIONS... -
Page 11: Regulations & Standards
SOLARcomfort hot water heating systems should be installed in REGULATIONS & compliance with the following standards and regulations. STANDARDS 4.1 W Water Supply (Water Fittings) Regulations 1999 / www.wras.co.uk ATER EGULATIONS These regulations (bye-laws in Scotland) ensure a good supply of wholesome water and that only approved materials, pipes and fittings are used to convey water. -
Page 12: Ritish European
4.4 B & E Connection of thermal solar heating systems RITISH UROPEAN TANDARDS EN 12976: Thermal solar heating systems and their components (prefabricated systems). ENV 12977: Thermal solar heating system and their components (bespoke systems). BS5918: Latest version: Solar heating systems for domestic hot water. Installation and equipment of DHW cylinders BS5546: 2000 Specification for installation of hot water supplies for domestic purposes, using gas-fired appliances of rated input not exceeding 70 kW. -
Page 13: 4.7 Eu D
4.7 EU D Further details available from: www.europa.eu.int IRECTIVES Construction Directive: 89/106/EEC Electromagnetic: 89/336/EEC Low voltage: 73/23/EEC Machinery Directive: 98/37/EC Preventing hot water scalding in bathrooms: using TMVs (IP 14/03). 4.8 O THER PUBLICATIONS DTI testing of solar systems (SP300275 1-3). Review of issues related to active solar heating systems (SP300246). -
Page 14: Installation
A flow limiter set is supplied separately, this must be fitted to the pump INSTALLATION group on the suction side of the pump as shown in fig. 5.1a. 5.1 F ITTING IMITER Note: The flow limiter is supplied with fittings for 15Ø pipe. 15Ø... -
Page 15: Considerations For Group
5.3 C The pump group and should normally be wall mounted in close proximity ONSIDERATIONS FOR to the cylinder. OSITIONING ROUP Fig. 5.2A gives a typical layout. The AST100 Solar Controller should be positioned so that the householder has easy access with good visibility of the display. Also, consideration has to be given to routing for connection to the pump group, cylinder and collector temperature sensors. -
Page 16: Sizing Of Pipes
5.6 S The flow rate in the circuit is between 0.5 and 1.5 litres/min for each collector. IZING OF IPES The flow velocity in the circuit should not exceed 1.5m/sec otherwise the the system may be noisy during operation. As a guide only: systems with total pipework of less than 50 metres, 15mm diameter pipe should allow flow conditions to be met for systems with up to four collectors. -
Page 17: Two Collectors S
5.9 T OLLECTOR CHEMATIC Cylinder Collector 13. Air Separator with Manual Air Vent System Pressure Guage 14. Expansion Vessel Pump Group 15. Solar AST 100 Controller Automatic Air Vent 16. Upper Cylinder Temperature Sensor (S3) Flow Temperature Gauge 17. Lower Cylinder Temperature Sensor (S2) Shut Off Valve 18. -
Page 18: Three Collectors S
5.10 T HREE OLLECTOR CHEMATIC Cylinder Collector 13. Air Separator Manual Air Vent System Pressure Guage 14. Expansion Vessel Pump Group 15. Solar AST 100 Controller Automatic Air Vent 16. Upper Cylinder Temperature Sensor (S3) Flow Temperature Gauge 17. Lower Cylinder Temperature Sensor (S2) Shut Off Valve 18. -
Page 19: Wall Mountingm
5.11 W The pump module is supplied with a wall bracket. The pump group must OUNTING ODULES be correctly fitted to the wall using the bracket supplied. It should not be supported by the connecting pipework alone. See fig. 5.11A FITTING PROCEDURE Determine the best location for the pump group, take into consideration the following:-... -
Page 20: Connecting Pipework
5.12 C ONNECTING IPEWORK Automatic Air Vent Shut Off valve Pipes Ø15mm or Ø22mm see 5.% PR Valve Expansion Vessel PR Valve relief plumbed to low level Ø15mm PRV discharge vessel Flow Return System Drain . 5.12 ONNECTING IPEWORK... -
Page 21: Pipe Reducers
5.13 P The basic pipe size for the system is either Ø22mm or Ø15mm - EDUCERS see section 5.5. The collectors connections and three of the four pump group connections are supplied for Ø22mm pipe. The flow limiter has a Ø15mm connection. -
Page 22: Pressure Reliefv
The chart below gives the initial pressure charge that the expansion vessel will require for a given system height (static system head). The expansion vessel should be charged to this pressure prior to filling the system. The factory set pressure of vessels is 2.5 bar. l i f n i l 1 3 . -
Page 23: Filling Point
The flow rate should be set to suit the number of collectors, the cylnder’s heat exchanger surface area and specific installation requirements. Recommended settings when using Ariston Primo Twin cylinder are:- 2 Collector system 0.5 to 1.7 l/min 3 Collector system 0.5 to 2.6 l/min... -
Page 24: Commissioning System
Flushing and commissioning should only be carried out when:- COMMISSIONING No sun is shining on the collectors e.g. early in the morning, SYSTEM evening or when the collectors are covered. Temperatures are not near freezing or there no is risk of frost. Before filling the system carry out the following pre-fill check. -
Page 25: Flushing And Filling The Glycol
6.2 F To remove any contaminants, the solar system has to be flushed with heat LUSHING AND ILLING THE transfer fluid or water prior to final filling, for water flush see 6:3. YSTEM USING GLYCOL Flushing and filling with glycol is done using a suitable electric pump or hand pump which should be able to provide pressure up to 3.5 bar. - Page 26 Flow Return System Pressure Gauge Discharge To Expansion Vessel Pump 3.5 Bar minimum Heat Transfer Fluid . 6.2 ROUP LUSHING GLYCOL ILLING...
- Page 27 6.3 F LUSHING THE YSTEM USING To remove any contaminants, the solar system has to be flushed with heat ATER transfer fluid or water prior to final filling, for glycol flushing and filling see 6:2. Flushing and filling with water can be done using a conventional filling loop IMPORTANT from the mains supply.
- Page 28 Flow Return System Pressure Gauge Discharge To Expansion Vessel Filling loop Mains 3.5 Bar minimum Pump 3.5 Bar minimum Water . 6.3 ROUP LUSHING WATER ILLING...
-
Page 29: Flushing The System Using 6.4 Filling And Topping Up The Glycol
6.4 F To remove any contaminants the solar system must be flushed with heat ILLING AND OPPING UP THE transfer fluid (glycol) or water prior to final filling. For glycol flushing and YSTEM WITH LYCOL filling see 6:2, for water flushing see 6.3. Filling with glycol is done using a suitable electric pump or hand pump which should be able to provide pressure up to 3.5 bar. - Page 30 Flow Return System Pressure Gauge Discharge To Expansion Vessel Pump 3.5 Bar minimum Heat Transfer Fluid . 6.4 ROUP ILLING AND OPPING...
-
Page 31: System Pressure
6.5 S YSTEM RESSURE e l l e l l c i t l i f n i l 1 3 . 1 3 . 1 3 . 1 3 . 1 4 . 1 4 . 1 4 . 1 4 . -
Page 32: Commissioning Sheet
✓ 6.6 SOLAR COMFORT OMMISSIONING HEET Pre-filling checks completed Flushing and system filling checks completed Electrical controls operating correctly All safety devices operate correctly All temperature sensors operate correctly Anti-scald prevention in place Debris removed and site left clean User instructions explained and handed over Installation and maintenance instructions left on site System schematic handed over De-commissioning details handed over... -
Page 33: Maintenance Schedule
7. MAINTENANCE SCHEDULE SOLAR COMFORT NNUAL AINTENANCE CHEDULE ✓ Check the system pressure when cold against commissioned tolerances. Check the expansion vessel pressure against commissioned tolerances. Check the pH level of the heat transfer liquid. Tyfocor LS must be in the range 9 -10.5 Check the refraction index. - Page 34 TERMS AND CONDITIONS OF GUARANTEE The SOLARcomfort Pump Group is guaranteed for 2 years. Please read these terms and conditions which are in addition to any terms and conditions detailed in this book or any registration card supplied with your appliance.
