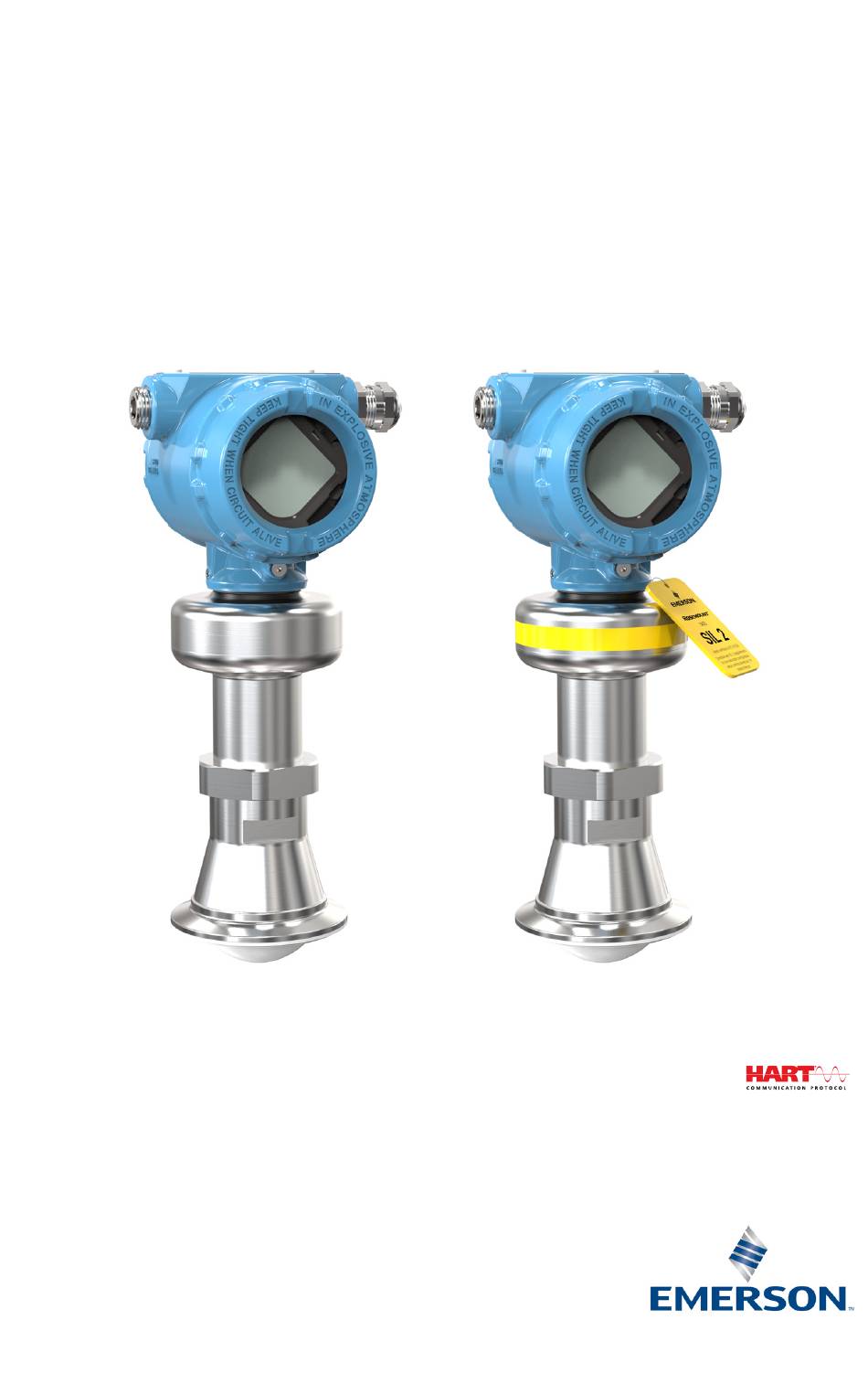

- Page 1 Quick Start Guide 00825-0500-4408, Rev AA October 2017 ™ Rosemount 5408 and 5408:SIS Level Transmitters Process Seal Antenna...
- Page 2 Make sure the transmitter is installed by qualified personnel and in accordance with applicable code of practice. Use the equipment only as specified in this guide and the Rosemount 5408 and 5408:SIS Reference Manual. For installations in hazardous locations, the transmitter must be installed according to the Rosemount 5408...
-
Page 3: Table Of Contents
Quick Start Guide October 2017 Confirm approval type For hazardous locations transmitters labeled with multiple approval types: Permanently mark the checkbox of the selected approval type(s). Contents Confirm approval type ............page 3 Mount the transmitter . -
Page 4: Mount The Transmitter
October 2017 Quick Start Guide Mount the transmitter Installation procedure Flanged version page 5 Tri Clamp version page 7... - Page 5 Quick Start Guide October 2017 Flanged version Step 1: Lower the transmitter into the nozzle Note Be careful not to scratch or otherwise damage the PTFE sealing. PTFE sealing...
- Page 6 October 2017 Quick Start Guide Step 2: Tighten the bolts and nuts Note Re-tighten after 24 hours and again after the first temperature cycle. Check at regular intervals and re-tighten if necessary. (1)(2) Table 1. Torque Value, lb-ft (N-m) Process Process connection rating connection size...
- Page 7 Quick Start Guide October 2017 Tri Clamp version Step 1: Lower the transmitter into the nozzle Note Be careful not to scratch or otherwise damage the PTFE sealing. PTFE sealing Step 2: Tighten the clamp Tighten the clamp to the recommended torque (see the manufacturer’s instruction manual).
-
Page 8: Align Transmitter Head
October 2017 Quick Start Guide Align transmitter head Open tank Align the marking on sensor module toward the tank wall. Still pipe Align the external ground screw toward the holes of the still pipe. Chamber Align the external ground screw toward the process connections. - Page 9 Quick Start Guide October 2017 Step 1: Loosen the nut slightly and turn the transmitter Step 2: Verify transmitter is properly aligned page 8 for direction. Step 3: Tighten the nut Torque 355 in-lb (40 N-m) 60 mm...
-
Page 10: Adjust Display Orientation (Optional)
October 2017 Quick Start Guide Adjust display orientation (optional) To improve field access to wiring or to better view the optional LCD display: 1. Loosen the set screw until the transmitter housing can rotate smoothly. 2. First, rotate the housing clockwise to the desired location. If the desired location cannot be achieved due to thread limit, rotate the housing counterclockwise to the desired location (up to 360°... -
Page 11: Prepare The Electrical Connections
Quick Start Guide October 2017 Prepare the electrical connections Cable selection Use 24-14 AWG wire. Twisted pairs and shielded wiring are recommended for environments with high EMI (electromagnetic interference). Two wires can be safely connected to each terminal screw. Cable gland/conduit For explosion-proof/flameproof installations, only use cable glands or conduit entry devices certified explosion-proof or flameproof. -
Page 12: Connect Wiring And Power Up
October 2017 Quick Start Guide Connect wiring and power up Step 1: Verify that the power supply is disconnected Step 2: Remove the cover Step 3: Remove the plastic plugs Step 4: Pull the cable through the cable gland/conduit Identification of thread size and type (No marking =½-14 NPT) ½-14 NPT M20 x 1.5... - Page 13 Quick Start Guide October 2017 Step 5: Connect the cable wires Torque 7 in-lb (0.8 N-m) Figure 3. Transmitter Wiring A. Field Communicator B. Approved IS barrier (for Intrinsically Safe installations only) C. HART modem D. Load resistance (≥250 E.
- Page 14 October 2017 Quick Start Guide Step 6: Ensure proper grounding Make sure grounding is done according to national and local electrical codes. Failure to do so may impair the protection provided by the equipment. Transmitter case grounding The most effective grounding method is direct connection to earth ground with minimal impedance.
- Page 15 Quick Start Guide October 2017 Step 7: Tighten the cable gland Apply PTFE tape or other sealant to the threads. Note Arrange the wiring with a drip loop. Step 8: Seal any unused port with the enclosed metal plug Apply PTFE tape or other sealant to the threads.
- Page 16 October 2017 Quick Start Guide Step 9: Attach and tighten the covers 1. Verify the cover jam screws are completely threaded into the housing. H2.5 mm Cover jam screw (one per side) 2. Attach and tighten the covers. Make sure the covers are fully engaged. 3.
-
Page 17: Configure Transmitter Using Guided Setup
Get the latest FDI Device Package The FDI Package or DD is typically installed together with the configuration tool. Download the latest FDI Package at: Emerson.com/RosemountRadarMasterPlus Download the latest DD at: EmersonProcess.com/devicefiles Learn more Visit Emerson.com/Rosemount to download the Rosemount 5408 and 5408:SIS Reference Manual. - Page 18 October 2017 Quick Start Guide...
- Page 19 Quick Start Guide October 2017...
- Page 20 Standard Terms and Conditions of Sale can be found at Middle East and Africa Regional Office www.Emerson.com/en-us/Terms-of-Use Emerson Automation Solutions The Emerson logo is a trademark and service mark of Emerson Emerson FZE P.O. Box 17033, Electric Co. Jebel Ali Free Zone - South 2...
