FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL
INJURY AND/OR PROPERTY DAMAGE.
The 50M56U-751 kit is a Single Stage HSI Integrated Furnace
Control kit for Carrier. This kit replaces the following Carrier
controls:
Carrier
HK42FZ004
HK42FZ009
HK42FZ007
HK42FZ011
HK42FZ008
HK42FZ013
*Universal replacement for all Carrier controls.
The control employs a microprocessor to continually monitor,
analyze, and control the proper operation of the gas burner,
inducer, and fan.
Twinning: The control board in this Kit CANNOT be
twinned with any of the Carrier circuit boards.
Installation should be done by a qualified heating and air
conditioning contractor or licensed electrician.
If in doubt about whether your wiring is millivolt, line, or low
voltage, have it inspected by a qualified heating and air
conditioning contractor or licensed electrician.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical codes
and ordinances.
This control is a precision instrument, and should be handled
carefully. Rough handling or distorting components could
cause the control to malfunction.
Following installation or replacement, follow manufacturer's
recommended installation/service instructions to ensure
proper operation.
CAUTION
!
Do not short out terminals on gas valve or primary
control. Short or incorrect wiring may damage the
thermostat.
White-Rodgers
HK42FZ016
50M56-751
HK42FZ034
325878-751*
white-rodgers.com
emersonclimate.com
50M56U-751
Carrier Single Stage
HSI Integrated Furnace Control Kit

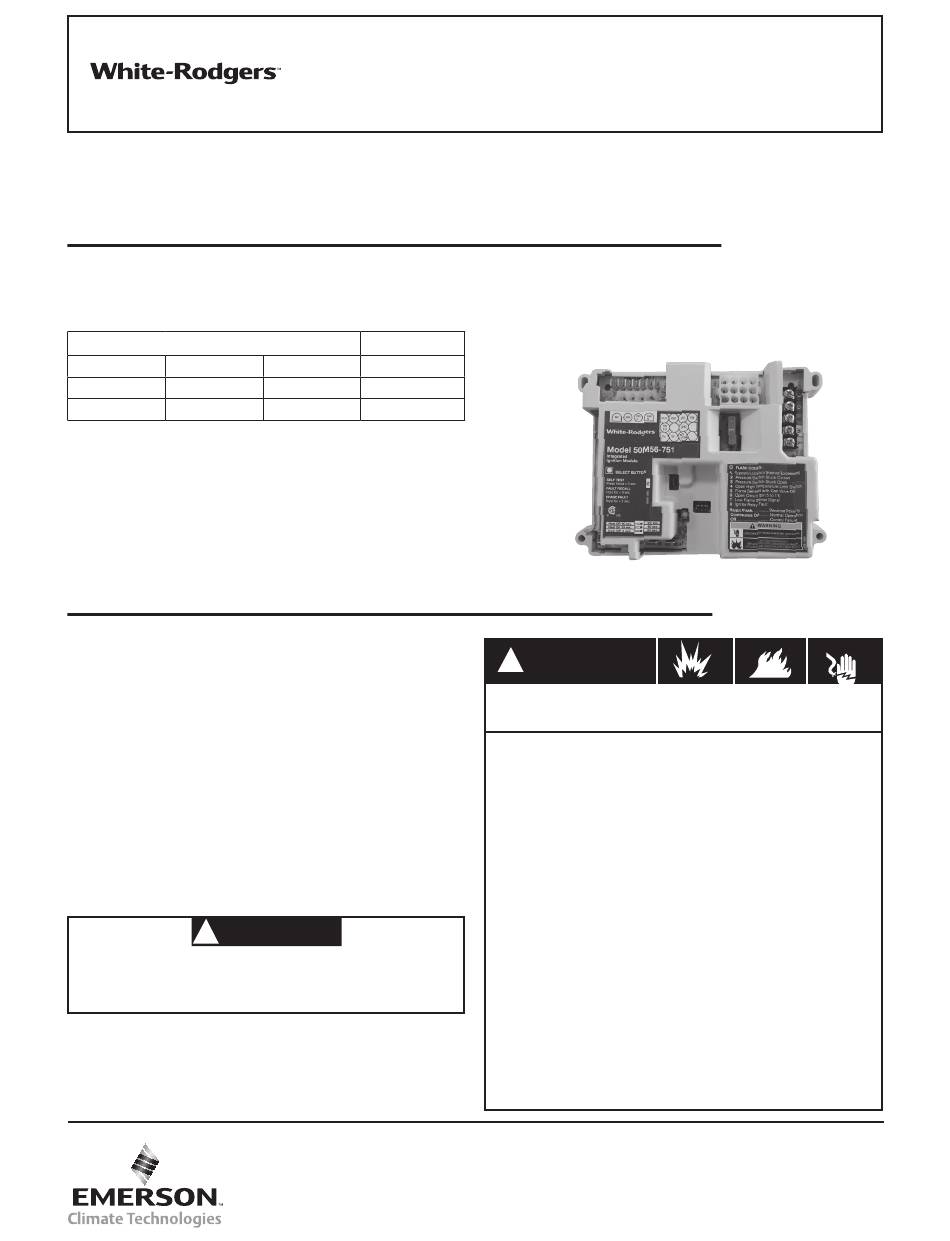

INSTALLATION INSTRUCTIONS
The kit contains:
1 – 50M56-751 ignition control board
1 – Set of interconnect harnesses
1 – Manual
1 – Bag of accessories
50M56-751
WARNING
!
Failure to comply with the following warnings could result
in personal injury or property damage.
FIRE HAZARD
• Do not exceed the specified voltage.
• Replace existing control with exact model and
dash number.
• Protect the control from direct contact with water
(dripping, spraying, rain, etc.).
• If the control has been in direct contact with
water, replace the control.
• Label all wires before disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation.
• Route and secure wiring away from flame.
SHOCK HAZARD
• Disconnect electric power before servicing.
• Ensure proper earth grounding of appliance.
• Ensure proper connection of line neutral and line
hot wires.
EXPLOSION HAZARD
• Shut off main gas to appliance until installation
is complete.
DESCRIPTION
PRECAUTIONS
PART NO. 37-7513C
Replaces 37-7513B
1611
