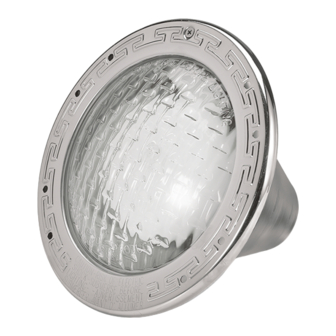

Amerlite
®
READ AND FOLLOW ALL INSTRUCTIONS
General Information. ................................................................................................................ 3
Section II.
Vinyl Liner Installation Instructions. .......................................................................................... 3
Section III. Fiberglass Pool Wall Installation Instructions. .......................................................................... 5
Section IV. Technical Data ........................................................................................................................ 5
A. Replacement Parts .............................................................................................................. 5
Hole Placement Template ............................................................... see attachment P/N 620002
For use with Pentair Water Pool and Spa wet niche light fixtures 783XXX, 784XXX, 788XXX, and 789XXX.
This niche - fixture housing must be installed by a licensed or certified electrician in accordance with the
National Electrical Code and all applicable local codes and ordinances. Improper installation will create
an electrical hazard which could result in death or serious injury to pool users, installers or others due to
electrical shock, and may also cause damage to property. Read and follow the specific instructions below.
Before installing this product, read and follow all warning notices and instructions accompanying this niche. Failure
to follow safety warnings and instructions can result in severe injury, death, and property damage.
Call (800) 831-7133 for additional free copies of these instructions.
Attention Installer.
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner/operator of this equipment.
Pentair Water Pool and Spa, Inc.
1620 Hawkins Ave., Sanford, NC 27330 • (800) 831-7133 or (919) 566-8000
10951 West Los Angeles Ave., Moorpark, CA 93021 • (800) 831-7133 or (805) 553-5000
Visit us on the Internet at: www.pentairpool.com or www.staritepool.com
Rev. D 10-29-07
/AmerQuartz
Installation Procedures
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Table of Contents
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION!
Important Notice
-Vinyl Liner/Fiberglass Niche
®
NOTE
DANGER
WARNING
1
P/N 99100800
Advertisement
Related Manuals for Pentair Pool Products Amerlite
Summary of Contents for Pentair Pool Products Amerlite
-
Page 1: Table Of Contents
Amerlite /AmerQuartz –Vinyl Liner/Fiberglass Niche ® ® Installation Procedures IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS Table of Contents Section I. General Information......................... 3 Section II. Vinyl Liner Installation Instructions................... 3 Section III. Fiberglass Pool Wall Installation Instructions................5 Section IV. - Page 2 DANGER! Risk of Electrical Shock or Electrocution! This product must be installed by a licensed or certified electrician or a qualified pool serviceman in accordance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will create an electrical hazard which could result in death --- or serious injury to pool users, installers or others due to electrical shock, and may also cause damage to property.
-
