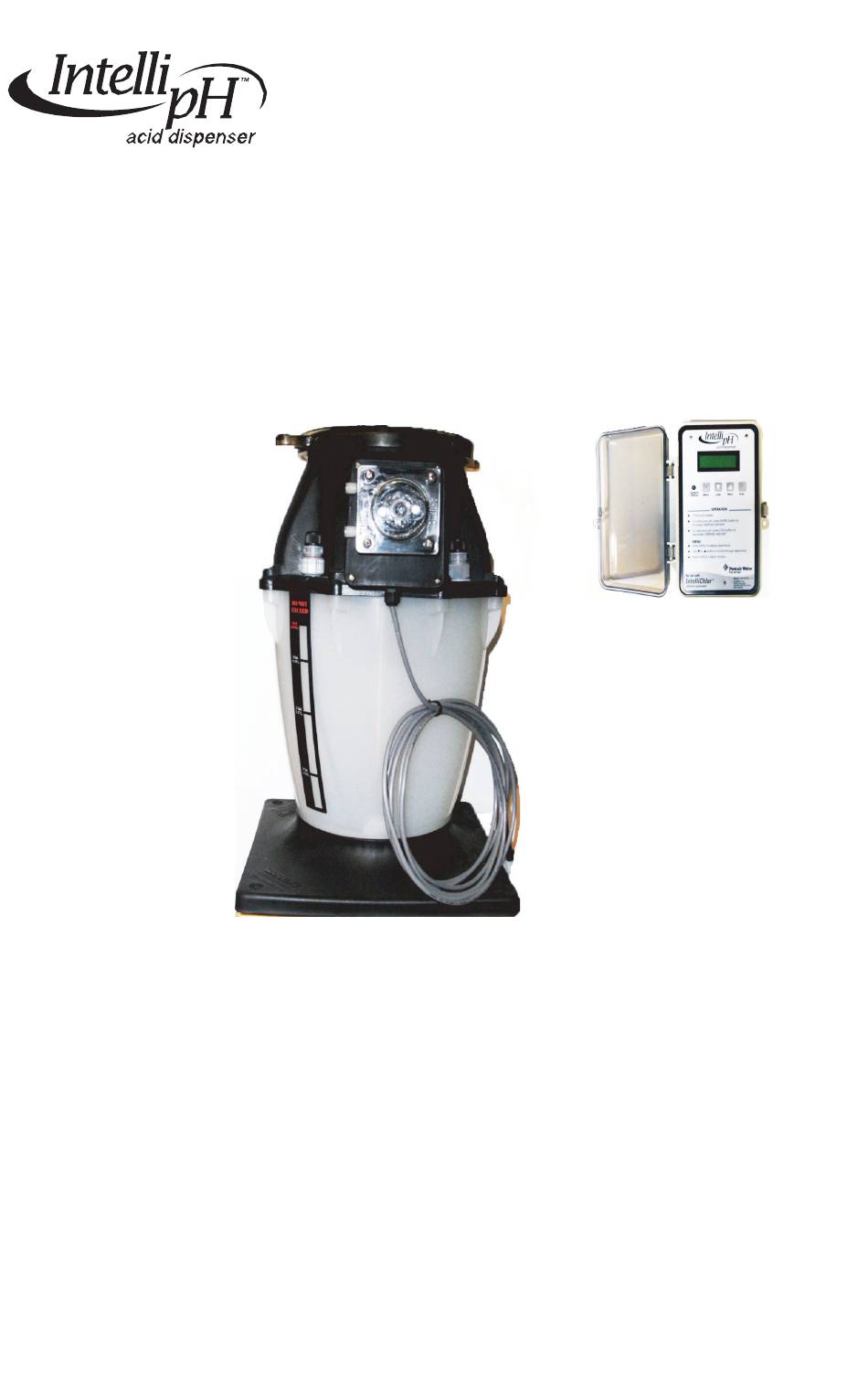

- Page 1 ™ IntellipH Automatic pH Dispenser Installation and User’s Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS IntellipH ™ Automatic Dispenser Installation and User’s Guide...
-
Page 2: Table Of Contents
IMPORTANT WARNINGS AND SAFETY INSTRUCTIONS........i IntellipH System Overview ..................1 Operating IntellipH ....................1 IntellipH Kit Contents ....................1 IntellipH Controller Control Panel ................2 Operating Mode ......................3 Menu Button ......................3 Add Acid Manually...................... 3 Dispense Amount ...................... 4 Setting up the system for the first time .............. -
Page 3: Important Warnings And Safety Instructions
BE FATAL IF SWALLOWED OR INHALED. INHALATION CAN CAUSE SEVERE LUNG DAMAGE. IMPORTANT! CHLORINE CONTAINER MIXING CHEMICALS WITH CHLORINE OR CHLORINE RESIDUE IN CONTAINER CAN CREATE A DEADLY GAS OR AN EXPLOSION. ™ IntellipH Automatic Dispenser Installation and User’s Guide... - Page 4 Carefully pour the baking soda onto the spilled material until the fizzing stops, then mop or scoop up the residue. Leave cleanup of large spills to the experts; call your local fire department or hazardous materials spill team. IntellipH ™ Automatic Dispenser Installation and User’s Guide...
-
Page 5: Intelliph System Overview

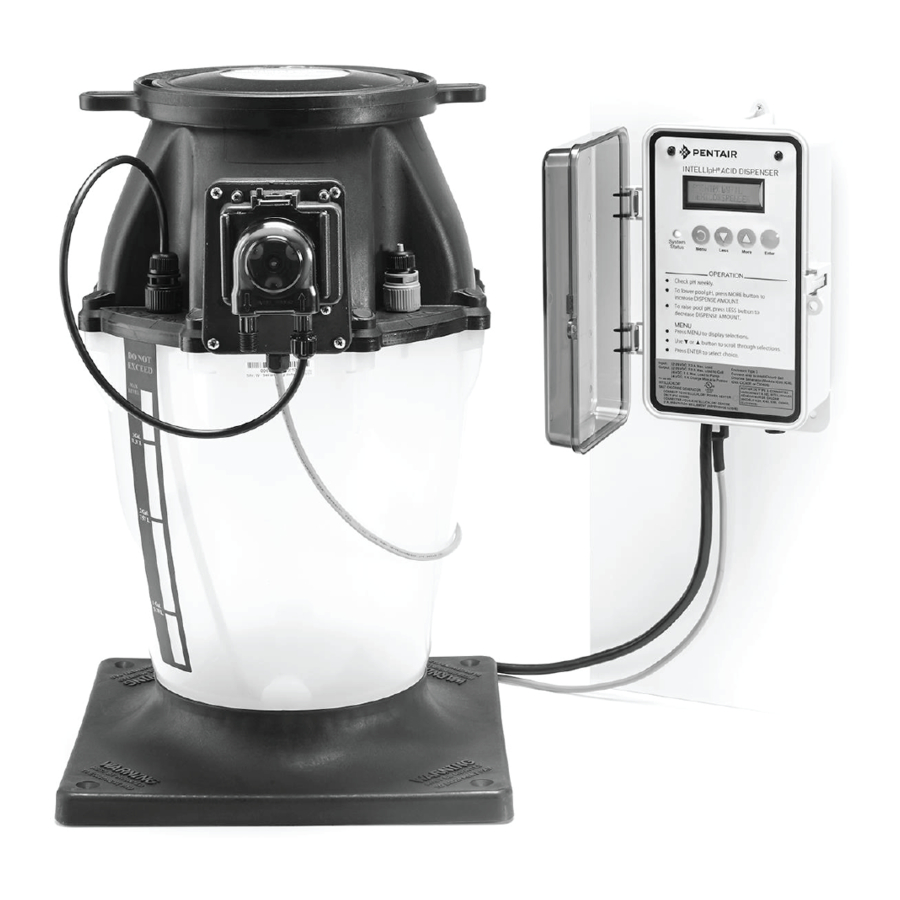

If 0% is selected, no acid will be dispensed. All acid for the IntellipH system is stored in a four gallons storage canister with a built-in pump. A small tube, provided in the kit, carries the acid pumped from the canister directly to the main water line. -
Page 6: Intelliph Controller Control Panel
If no menu activity is detected after 30 seconds, the main screen is displayed. All menu settings are permanently saved and retained in the control panel even after the IntellipH is power off. -
Page 7: Operating Mode
Operating Mode In normal operating mode the display will alternate between IntellipH pH CONTROLLER and MIN UNTIL NEXT DISPENSE. Each message is displayed a few seconds before rotating to the next message. The "XX" is a minute countdown timer, showing from 60 to 00. -
Page 8: Dispense Amount
Likewise, if water pH is high, press the MORE button to increase the acid dispensed every hour. Your IntellipH is designed to maintain pH levels. If pH was too high, utilize the manual acid dispense to stabilize your pool and then operate for at least one week under new settings and re-check pool water pH level. -
Page 9: Setting Up The System For The First Time
Setting up the system for the first time For best operation, the IntellipH system should be configured to match your basic acid needs. Perform the following steps to setup the system: • Use a Test Kit to balance the pool water •... -
Page 10: Superchlor Mode
This feature replaces the MORE and LESS button on the IntelliChlor cell. Once the IntelliChlor cell is connected to the IntellipH, the 'More' and 'Less' buttons on the IntelliChlor will be disabled. Note: The IntellipH controller will increase and decrease chlorine output in 1% increments. -
Page 11: Troubleshooting
Troubleshooting Refer to the following tips to help to resolve problems that might occur while operating IntellipH. ™ IntellipH Automatic Dispenser Installation and User’s Guide... -
Page 12: Intelliph Installation
IntellipH Installation ® The IntellipH controller is installed "in series" with the IntelliChlor cell. The IntelliChlor cell cord plugs into the IntellipH controller and the controller plugs into the IntelliChlor ® ® power center, EasyTouch or IntelliTouch load center power connector. -
Page 13: Saddle Clamp Mount Installation
Place the pipe hose clamps around the pipe and the slots on the saddle clamp. Tighten the pipe clamps using the alternative method (i.e. left, right, left, etc.). Saddle Clamp IntellipH ™ Automatic Dispenser Installation and User’s Guide... - Page 14 Notes IntellipH ™ Automatic Dispenser Installation and User’s Guide...
- Page 15 Notes IntellipH ™ Automatic Dispenser Installation and User’s Guide...
- Page 16 SAVE THESE INSTRUCTIONS *521396* P/N 521396 Rev A ™ IntellipH Automatic Dispenser Installation and User’s Guide...
