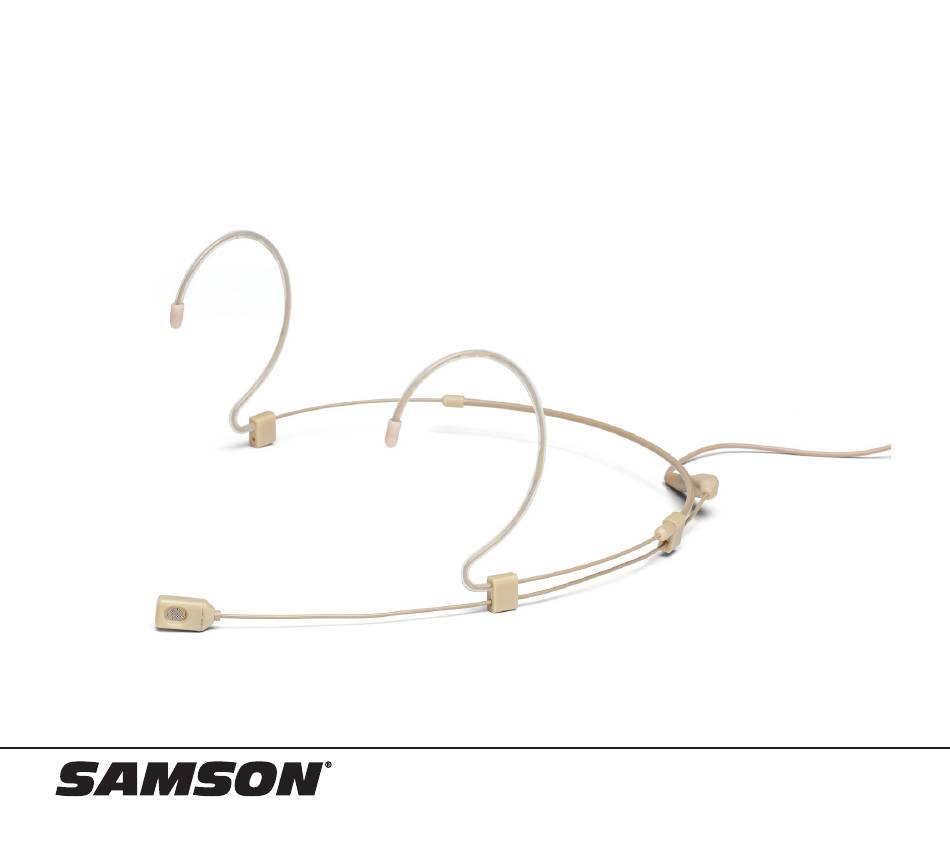

- Page 1 DE60x Headset Microphone Unidirectional Headset Microphone with Miniature Condenser Capsule Owner’s Manual...
- Page 2 By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2019, Samson Technologies Corp. v1.1 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
- Page 3 Should your DE60x Headset Microphone ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton.
- Page 4 Features • Headset microphone with 7.35mm miniature condenser mic capsule • Low-profile, double ear design with adjustable frame • Ideal for live and broadcast vocal applications • Unidirectional (cardioid) pickup pattern • 20Hz–20kHz frequency response • Gold-plated connector, moisture-resistant coating and stainless steel mesh grille •...
- Page 5 If the left ear hook wire and slide the boom forward or DE60x is loose and will not stay in place, slide back. For optimum performance the microphone the ear hook wires back for a tighter fit.
-
Page 6: Connector Cables
Connector Cables The DE60x includes four cables with adapters for some of the most popular wireless microphone beltpack transmitters. 3.5mm Connector Works with Sennheiser wireless systems ® Hirose 4-Pin Connector ® Works with most Audio-Technica wireless systems ® Switchcraft TA3F Connector ®... - Page 7 Choose the right cable and connector that works with your wireless system. Line the cable up to the threaded terminal on the back of the DE60x and screw the cable into the headset. Do not over tighten the cable. Attach the included collar clip on the back...
- Page 8 Mic Positioning The DE60x microphone is designed to be worn with the boom arm under the left ear. For optimal placement please follow the directions below: Position the DE60x microphone element about If the microphone is too far away from your 0.25”...
-
Page 9: Specifications
1/8” (3.5mm), Hirose 4-Pin, Switchcraft TA3F, ® ® Switchcraft TA4F ® Accessories (4) Windscreens, Clothing Collar Clip, Carry Case At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. DE60x Headset Microphone... -
Page 10: Polar Pattern
Specifications 0° 45° 45° 90° 90° 135° 135° 180° Polar Pattern 1000 2000 5000 10000 20000 Hz Frequency in Hz Frequency Response... - Page 12 Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
