Remove Contents from Carton

1. Open carton completely by cutting each
corner from top to bottom.
2. Remove and verify carton contents prior to
assembly. Carton contents should contain
the following:
Contents
Item
Main Unit
Owner's Manual
Liter Oil SAE 30
Product Registration Card
Service Warranty
Emissions Warranty
Muffler Extension
Battery Bracket Assembly
Portability Kit (optional)
Portability Kit (Model No. G0069100)
10" Wheel (A)
Axle (B)
Axle Mount (C)
5/8" Flat Washer (D)
Cotter Pin (E)
Handle (F)
Handle Mount (G)
Handle Grip (H)
Frame Foot (J)
Rubber Feet (K)
M6-1x50mm Screw (L)
.344"x1.0" Flat Washer (M)
M8 Flat Washer (N)
M8-1.25 Locknut (P)
M8-1.25x30 Screw (Q)
M8-1.25x45 Screw (R)
M8-1.25x50 Screw (S)
M8-1.25x110 Screw (T)
5/16x1.25 Pin Release (U)
Lanyard
3. Call Generac Customer Service 1-888-
GENERAC (1-888-436-3722) with the unit
model and serial number for any missing
carton contents.
Owner's Manual for Portable Generator
4. Record model, serial number, and date of
purchase on front cover of this manual.

Assembly

Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
Qty.
Call Generac Customer Service at 1-888-
1
GENERAC (1-888-436-3722) for any assem-
1
bly issues or concerns. Please have model
and serial number available.
2
The following tools are required to install the
3
accessory kit.
• Ratchet with 10mm and 13mm sockets
1
• 13mm box wrenches
1
NOTE: The wheels are not intended for over-
the-road use.
1
Install wheels as follows. See
1
1. Insert cotter pin (E) to one end of axle (B).
2. In this order; slide washer (D), wheel (A),
washer, (D), axle mount (2-C), washer (D),
wheel (A), washer (D), and cotter pin (E)
onto axle.
Qty.
3. Place wheel assembly under frame so
axle mounts align with holes in cradle
2
frame.
1
4. Secure with M6 screws (L).
.
2
4
2
1
2
2
2
2
4
A
2
10
Install frame foot and rubber bumpers as
shown in
6
1. Slide onto M8 screw (Q), flat washer (M),
2
rubber foot (K).
2. Slide assembly through frame foot (J). Add
2
M8 flat washer (N), and secure with M8-
2
1.25 Locknut (P).
3. Place foot bracket assembly under cradle.
2
4. Slide M8 flat washers (N) onto M8-
1
1.25x110 screws (T) and insert through
foot bracket assembly and cradle.
1
5. Secure with M8 flat washer (N) and M8
locknut (P).
WARNING
L
B
C
D

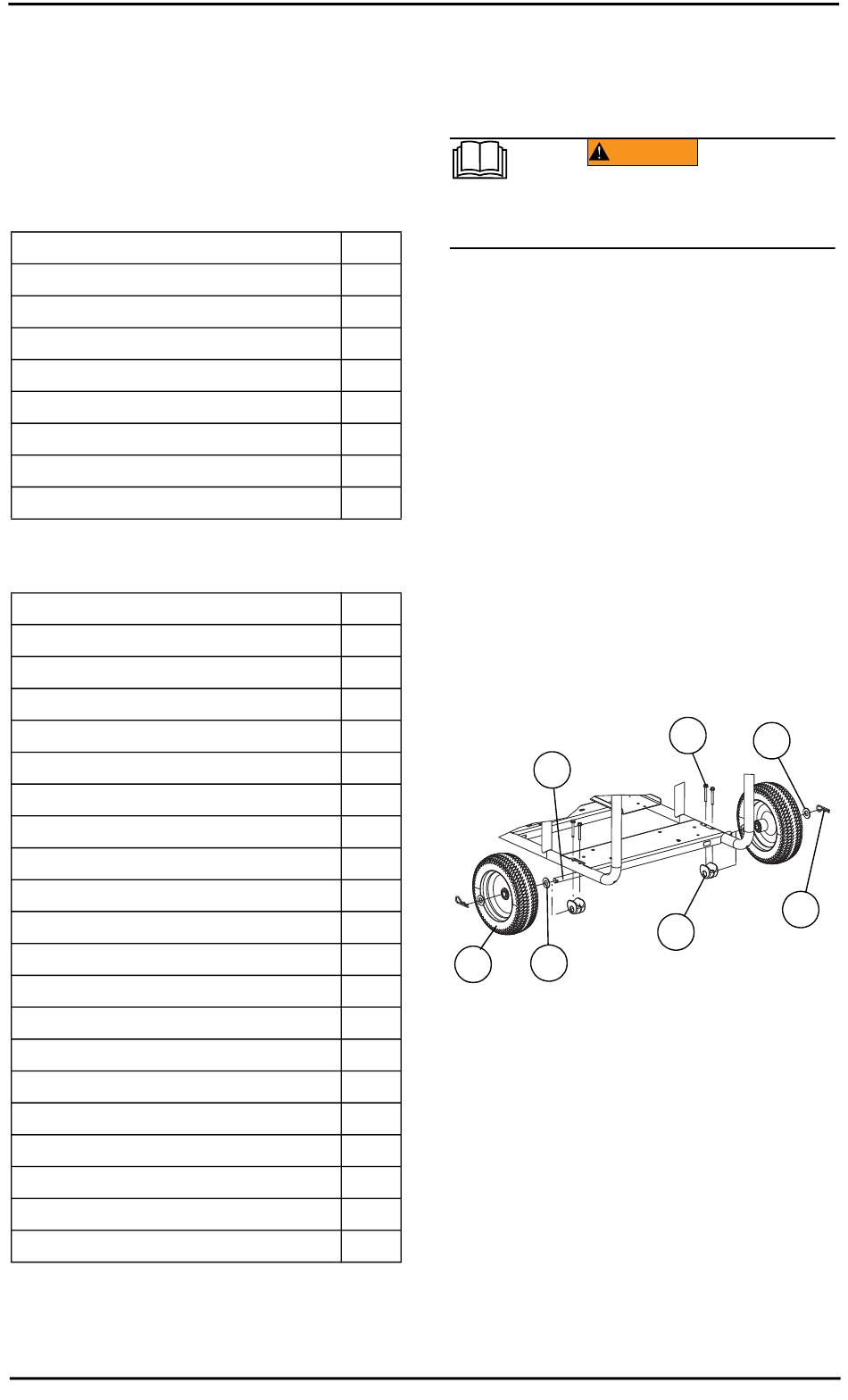

Figure 2-8. Wheel Assembly
Figure 2-9.
(000100a)
Figure 2-8.
C
E
000704
