Si04-751

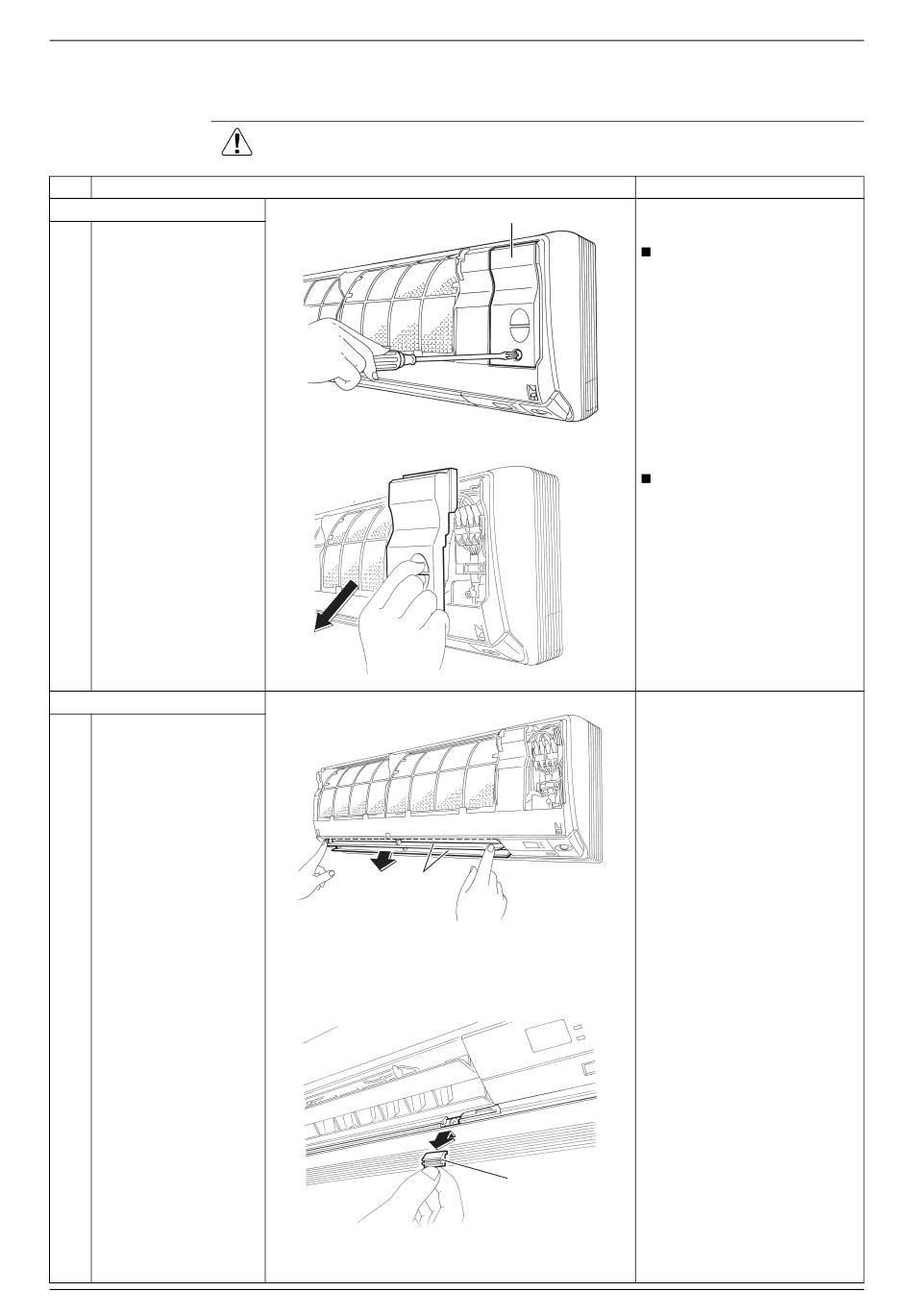

3. Removal of Front Grille

Procedure
Step
1. Remove the service cover.
1 Remove the screw of
the service cover.
Remove the service
2
cover.
2. Remove the front grille.
Open the horizontal
1
blades.
2 Remove the 2 screw
covers.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Horizontal blade
Service cover
Preparation
(R4317)
(R4318)
(R4320)
Screw cover
(R4321)
Removal of Front Grille
Points
Remove the front panel
according to the "Removal
of Front Panel."
You can remove the front
grille without detaching the
service cover.
5
