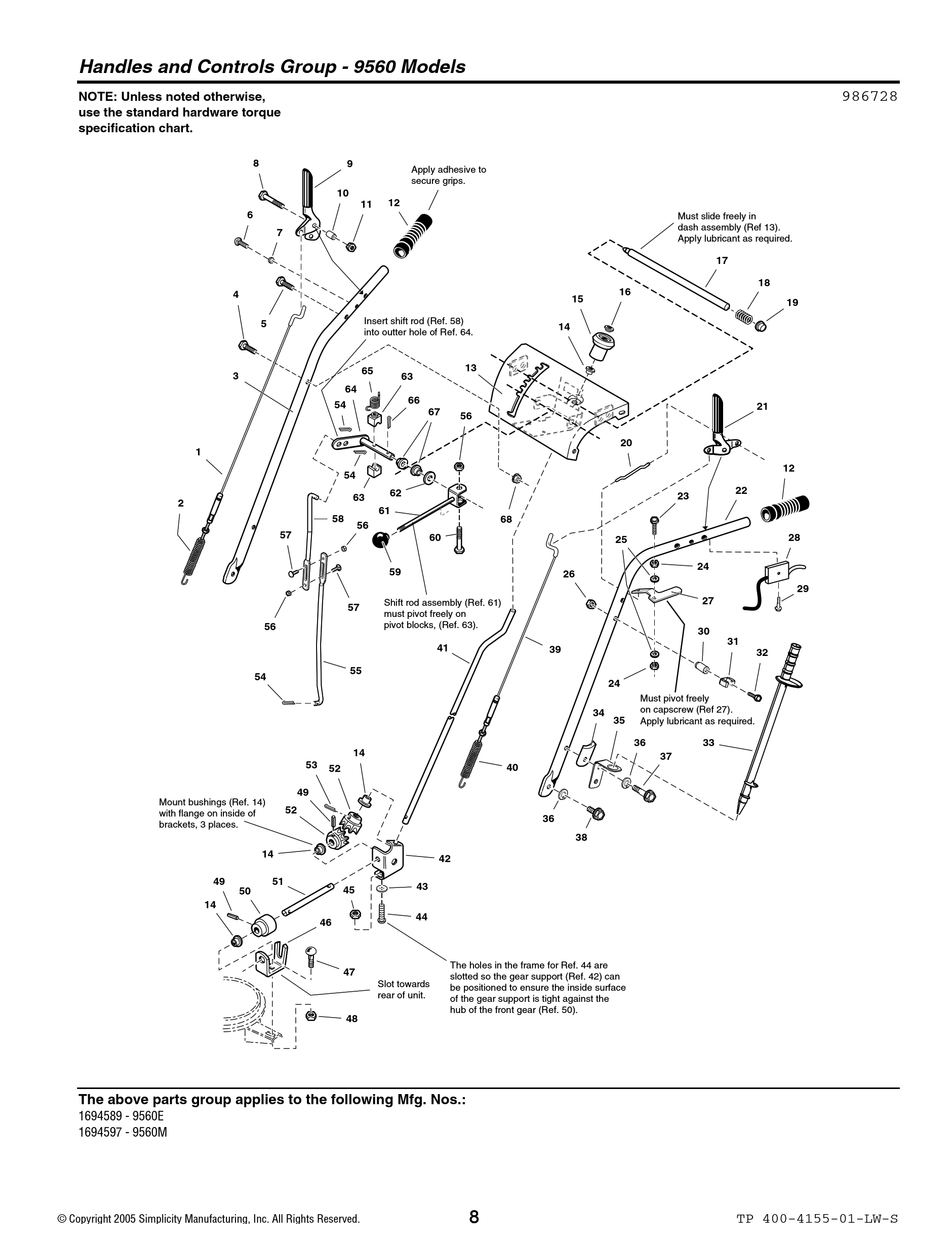

Handles and Controls Group - 9560 Models

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
3
1
2
Mount bushings (Ref. 14)
with flange on inside of
brackets, 3 places.
49
14
The above parts group applies to the following Mfg. Nos.:
1694589 - 9560E
1694597 - 9560M
