Operation
Manual
On/Off Rocker Switch
(left-side of unit)
Spatula
Control Panel
LIMITED WARRANTY
This product (with the exception of the water tube, part no. 625-197S) is
warranted to be free from defects in material and/or workmanship for a
period of two (2) years from date of original installation, not to exceed
30 months from date of shipment from our factory. P.C. Boards and Heater
Assemblies are warranted for three (3) years from date of installation, not
to exceed 42 months from date of shipment. Any component which proves
to be faulty in material and/or workmanship will be replaced or repaired (at
the option of Prince Castle, Inc.) without cost to the customer for parts or
labor. This warranty covers on location service (i.e. trip charges and/or
mileage). Travel mileage is limited to 100 miles (200 kilometers) round trip
(one trip warranty) from an authorized service agency or its sub-service
agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor shall be performed during regular work hours. Overtime
premium will be charged to the buyer.
• Damage caused by carelessness, neglect, and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in shipment,
by fire, flood or an act of God) is not covered under this warranty.
625-505revI

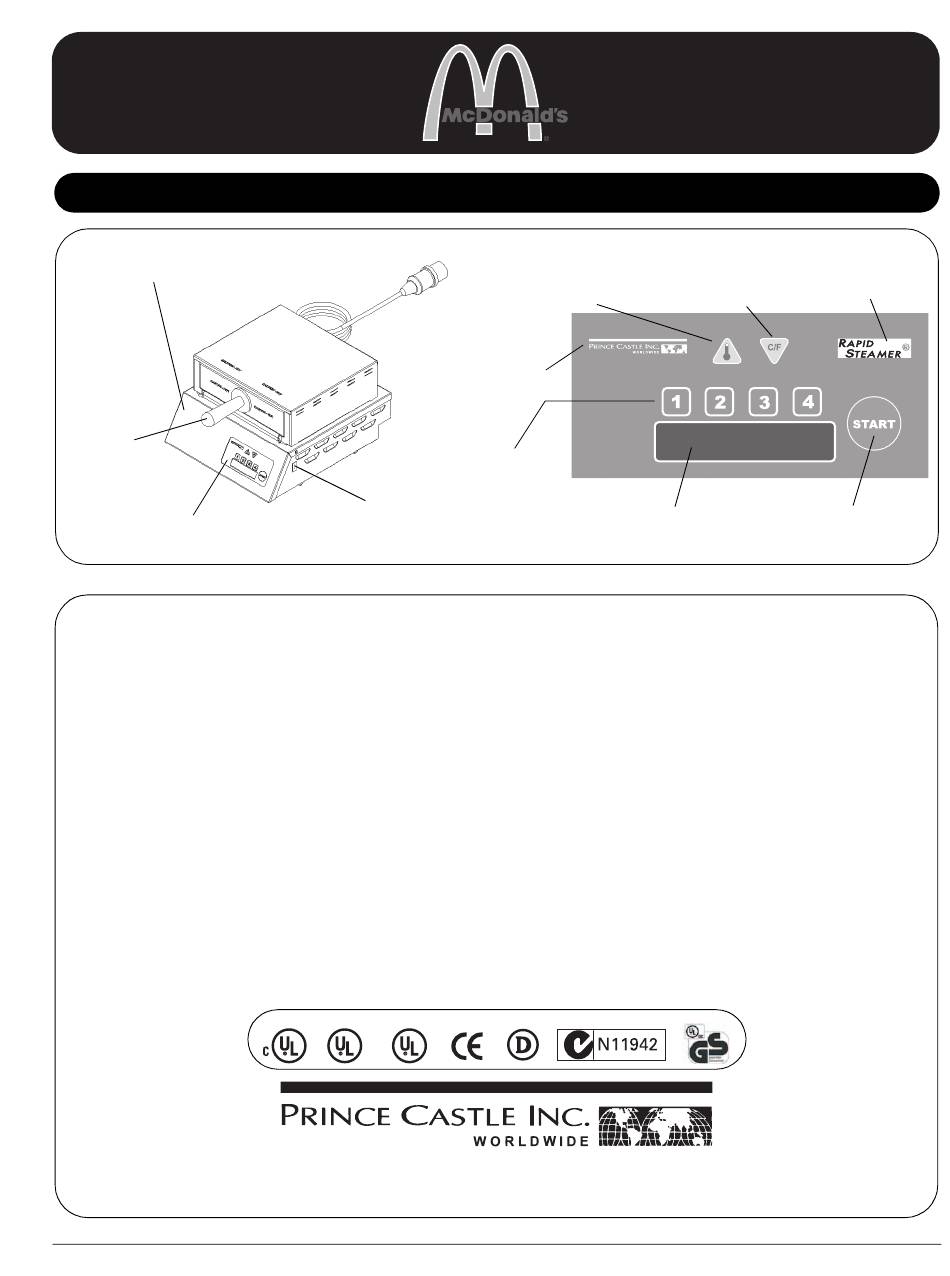

Product Identification
Prince Castle
Logo Button
Product Buttons
(1 thru 4)
External Meter Plug Inlet
(for calibration)
SANITATION
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com
Celsius/Fahrenheit &
Temperature &
DOWN Arrow Button
UP Arrow Button
LED Display
TABLE OF CONTENTS
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Temperature Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
View Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Manual Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Programming Product Name & Water Cycle . . . . . . . . . . . . . . . . . . . . 4
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning - Daily . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning - Monthly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exploded View and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Steamer
625-MCD & MFY
Rapid Steamer
Logo Button
Start Button
Printed in U.S.A. 1/06 © 2006
Advertisement
Table of Contents
Related Manuals for Prince Castle 625-MCD
Summary of Contents for Prince Castle 625-MCD
-
Page 1: Table Of Contents
Operation ..........2 the option of Prince Castle, Inc.) without cost to the customer for parts or Temperature Calibration. -
Page 2: Safety Information
• save carton and packaging materials for inspection purposes All electrical connections must be in accordance with local electrical codes • contact your local dealer, or if purchased directly, the Prince Castle and any other applicable codes. Sales Department at 800-722-7853 or 1-630-462-8800 to arrange for a Plug the unit into an applicable electrical receptacle. -
Page 3: Temperature Calibration
Replace the manual reset cap. NOTE: If the unit continues to shut off due to overheating, contact your authorized Prince Castle Service Agency. Manual . VERS XX.XX... -
Page 4: Programming Product Name & Water Cycle
PROD12 – – – – B. Press the UP or DOWN Arrow button to scroll through the Press and hold the PRINCE CASTLE LOGO button first, then product selections. press and hold the RAPID STEAMER LOGO button for 6 seconds. -
Page 5: Error Messages
Program Mode without storing the change. NOTE: Pressing the PRODUCT 3 button at any time exits the Program Mode without storing the change. Factory Pre-Set Temperatures Error Messages 625-MCD Factory pre-set temperatures: Error Messages Action Filet: 151°C (305°F) No Heat Error. -
Page 6: Cleaning - Daily
Steamer 625-MCD & MFY Cleaning — Daily PM Tasks WARNING The following equipment is required: ® • McD All Purpose Super Concentrate (APSC) Turn the unit off and unplug the power cord from the electrical ® ® • McD Sink Pak Sanitizer McD APC (Australia only) receptacle. -
Page 7: Cleaning - Monthly
Steamer 625-MCD & MFY Cleaning — Monthly PM Tasks The following equipment is required: WARNING ® • McD All Purpose Super Concentrate (APSC) Turn the unit off and unplug the power cord from the electrical ® ® • McD Sink Pak Sanitizer McD APC (Australia only) receptacle. -
Page 8: Exploded View And Parts List
Line Cord Assembly, 625-MCD 72-379S Line Cord Assembly, 625-MCDA 72-383S Line Cord Assembly, 625-MCDA16 625-253S Regulator Assembly, 625-MFY 625-104S Regulator Assembly, 625-MCD (Optional Accessory) 625-165S Regulator Assembly, 625-MCDA & MCDA16 (Optional Accessory) 625-253S Regulator Parts (Not Shown) 86-359S Male Quick Disconnect Fitting 86-377S Strainer Cap, Gasket &... - Page 9 Steamer 625-MCD & MFY Troubleshooting Guide PROBLEM PROBABLE CAUSE SOLUTION Unit will not heat up; “DISPLAY” is lit. Loose connections. Check continuity wiring. On/Off switch is ON. Unit heats up but will not steam. Water supply is not connected or shut Disconnect water line and check if water is flowing Display reads “REMOVE”...
-
Page 10: Wiring Diagram
Steamer 625-MCD & MFY Wiring Diagram Printed in U.S.A. 1/06 © 2006 625-505revI-EN... - Page 11 Steamer 625-MCD & MFY What You Need To Know About Your New Steamer Operation — Steams two (2) buns in 11 seconds. — To steam your buns: 1) After the steamer has warmed up and the display reads “FILET”, load buns CUT SIDE DOWN on spatula. Make sure Operation Tips that buns are centered on holes on spatula.
- Page 12 Steamer 625-MCD & MFY Water Tube Cleaning In areas that have very hard water conditions, scale can accumulate in the water tube, preventing proper water dispensing. Thus, the water tube should be cleaned during the deliming process as well as during the daily cleaning. It is recommended that the steamers go through a deliming procedure once a month.
- Page 13 Steamer 625-MCD & MFY Water Tube Replacement Stores that have harder water in their areas may experience scale buildup in their water tubes, thus clogging the tube and preventing water from being dispensed into the steaming chamber. If the tube needs to be replaced, this sheet will illustrate how to replace the water tube.
- Page 14 Steamer 625-MCD & MFY Connection of Two Steamers Stores that want to install two steamers will need to use the T-Connect Kit. the T-Connect Kit connects the inlet water line to both the steamers. To Steamer Closest to Inlet Water...
- Page 15 Steamer 625-MCD & MFY Notes 625-505revI-EN Printed in U.S.A. 1/06 © 2006...
- Page 16 STEAMER Planned Maintenance System: Maintenance Requirement Card (MRC) Prince Castle: Rapid Steamer Series Precaution Hazard Communication Standard (HCS) — The procedure(s) in this manual include the use of chemical products. These chemical products will be highlighted with italic-faced letters followed by the abbreviation (HCS).
- Page 17 Steamer 625-MCD & MFY When Monthly Cleaning Monthly 1. Turn unit power On/Off switch to OFF position and unplug steamer from power source. “PROCEED WITH CAUTION” – CAUTION UNIT Tools IS STILL HOT. ® All Purpose Super 2. While wearing protective gloves, remove top cover, top cover plate Concentrate (APSC) ®...
