Installation Instructions- SLX Series L.E.D. Exit Signs
For AC and Self Powered, Wall, Ceiling an End Mount
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS
BE OBSERVED INCLUDING THE FOLLOWING:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
2. Do not use outdoors.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
5. The use of accessory equipment not recommended by Sure-Lites may cause an unsafe condition.
6. Do not use this equipment for other than its intended purpose.
7. Servicing of any parts should be performed by qualified personnel. Under normal conditions, the LED display is a lifetime unit and
does not require replacement. If necessary, LED displays are available from the factory.
SAVE THESE INSTRUCTIONS
8.

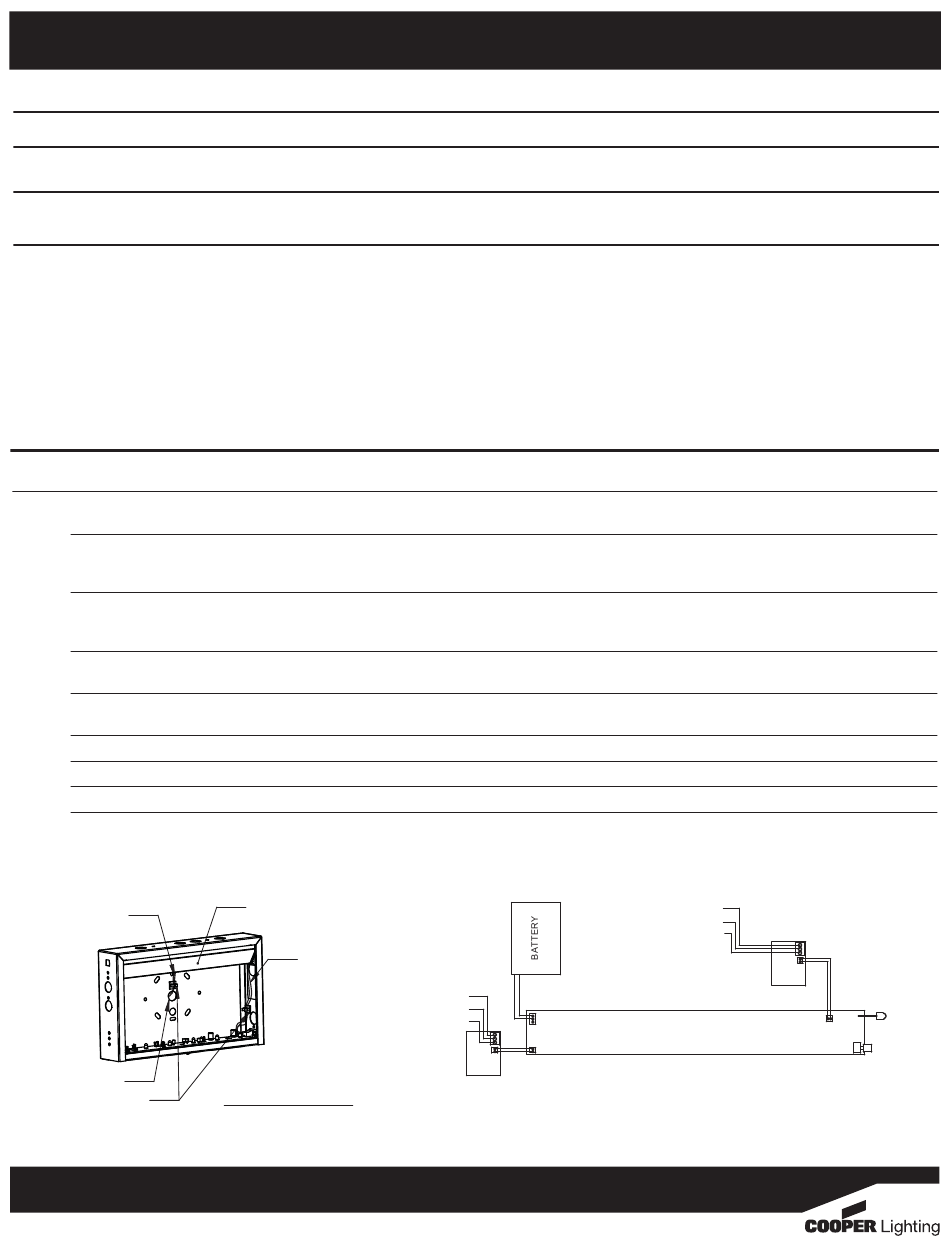

WALL MOUNT INSTALLATION
Step 1. Extend unswitched 24 hour AC supply of rated voltage to junction box (by others). Leave at least 18 inches of slack. Circuit should not be
energized at this time.
Step 2. Dissassemble sign by removing bottom screw and sliding the sign stencil and color sheet downward. Remove power tray by placing a
screwdriver in the rectangular slot in the upper left or right, and pulling down. Relocate supply wires through power tray to nearest knockout if
ceiling or end mounting.
Step 3. Knock out the appropriate mounting pattern and wire pass hole to match junction box.Insert bushing into wire access hole to prevent abrasion
on supply wires Mount wire saddle with peel off adhesive backing near access hole and route supply wires through wire saddle and accesss hole
bushing. Bring wires through back of fixture.
Step 4. Repalce power tray into top of sign frame. Check to make sure that power tray is held securely in place. Reconnect battery and power
supply leads to LED circuit board if necessary.
Step 5. Connect power supply and ground in accordance with local codes. Wire connections as follows: 277V line to Orange lead; 120V line to Black
lead; Neutral to white lead. Ground to Green lead; Cap unused line lead. Note: Connections must be in canopy or junction box.
Step 6. Mount to junction box.
Step 7. Energize AC supply, LED display will come on.
Step 8. Replace sign stencil and color sheet and secure in place with bottom screw.
Step 9. Remove protective film from color sheet ( if present ) and install sheet in exit stencil so the gloss side will face toward the LED's.
WIRES FROM
POWER SUPPLY
B USHING
WIRE SADDLE
