LX Navigation d.o.o.
Pipistrel ALPHA Trainer – Operators Manual for LX Instrument Suite.
April 2013
Pipistrel ALPHA Trainer
Operators Manual for the LX Instrument Suite
Fitted to the Pipistrel ALPHA Trainer with
Air Data, Engine Monitoring and AHRS
Revision 3
Page 1 of 5
Advertisement
Related Manuals for Pipistrel ALPHA Trainer
Summary of Contents for Pipistrel ALPHA Trainer
- Page 1 LX Navigation d.o.o. Pipistrel ALPHA Trainer – Operators Manual for LX Instrument Suite. April 2013 Pipistrel ALPHA Trainer Operators Manual for the LX Instrument Suite Fitted to the Pipistrel ALPHA Trainer with Air Data, Engine Monitoring and AHRS Revision 3...

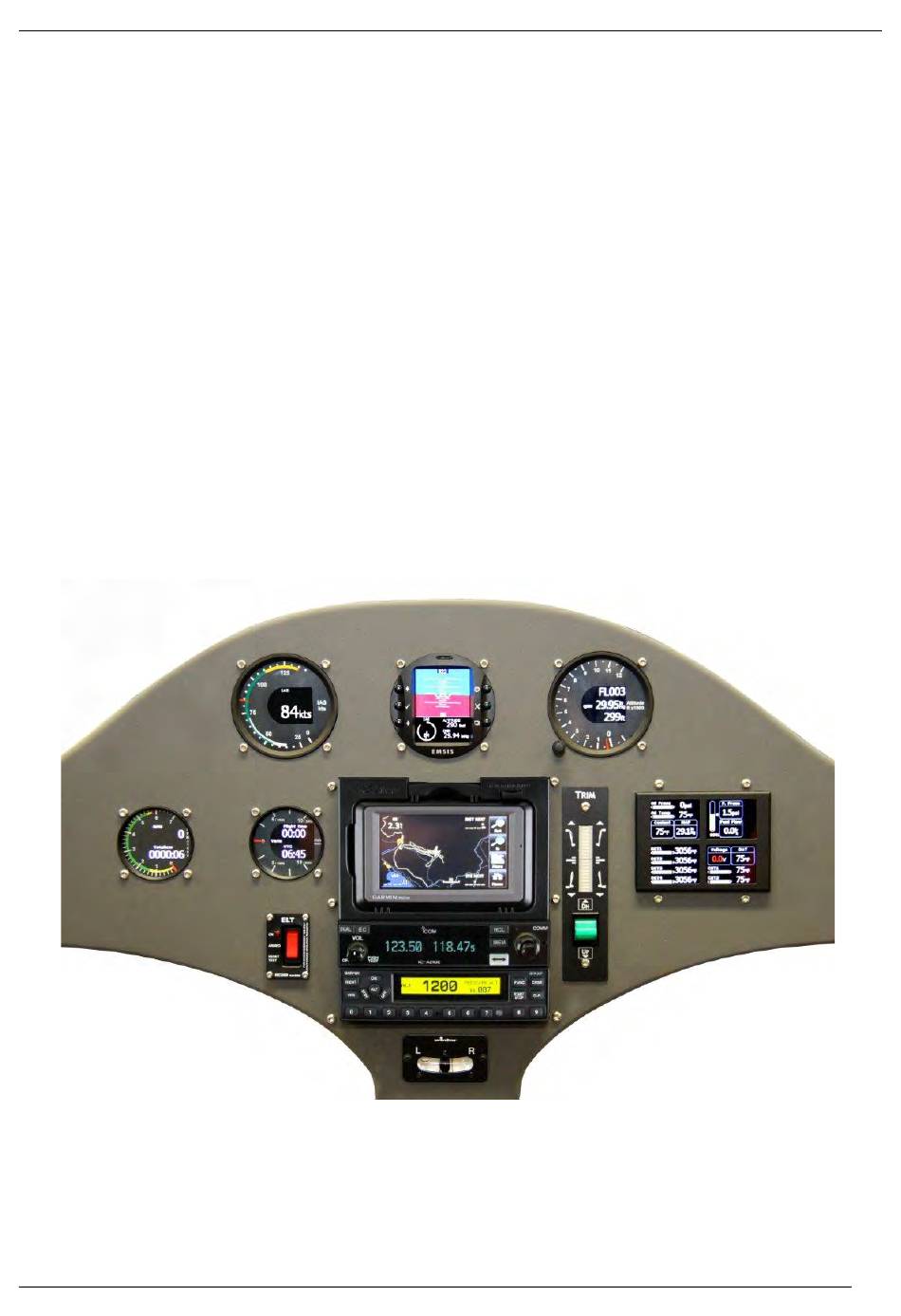

- Page 2 LX Navigation d.o.o. Pipistrel ALPHA Trainer – Operators Manual for LX Instrument Suite. April 2013 ALPHA Trainer Panel Layout EMSIS AHRS Altimeter IAS Indicator Variometer Engine Data Display Tachometer Revision 3 Page 2 of 5...
- Page 3 LX Navigation d.o.o. Pipistrel ALPHA Trainer – Operators Manual for LX Instrument Suite. April 2013 System description The LX Navigation Instrument system consists of following instruments: • EMSIS AHRS - 80 mm (3⅛”) unit with artificial horizon and air data source;...
- Page 4 LX Navigation d.o.o. Pipistrel ALPHA Trainer – Operators Manual for LX Instrument Suite. April 2013 2 IAS Indicator The IAS instrument is a 80 mm (3⅛”) unit which consists of a familiar mechanical needle and a large OLED digital display. Both the needle display and the digital indicator show the indicated airspeed in knots.
- Page 5 LX Navigation d.o.o. Pipistrel ALPHA Trainer – Operators Manual for LX Instrument Suite. April 2013 5 LX Cluster Engine Data Display The LX Cluster Engine Data Display is used for monitoring the engine operating parameters. The only exception is fuel tank indicator which indicates fuel tank status in percentage fuel remaining ranging from - 0% (empty) up to 100% (full).
