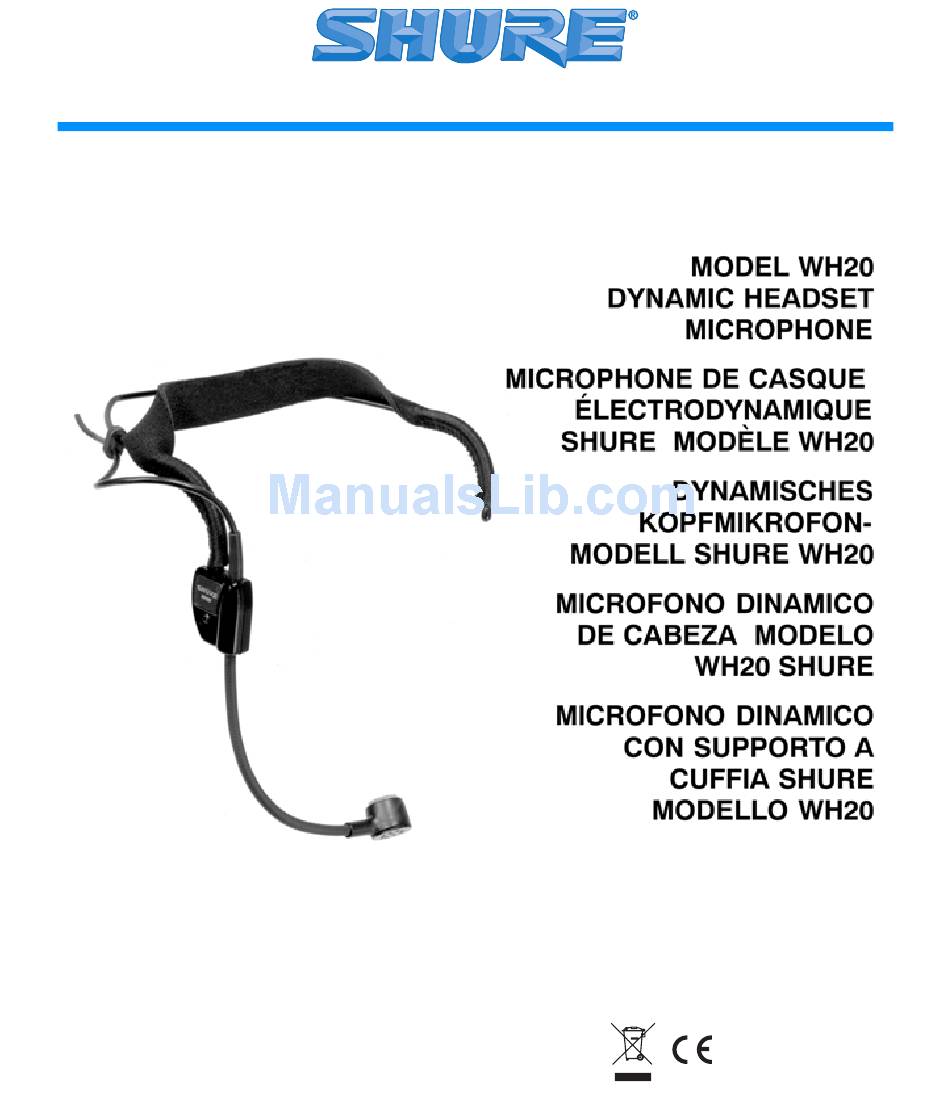

- Page 1 Model WH20 User Guide ©2005, Shure Incorporated Printed in U.S.A. 27G3078 (Rev. 7)
-
Page 2: Model Variations
The Shure Model WH20 is a rugged, light-weight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances. The WH20 is suitable for any voice com- munications application where comfort and reliability are required. -
Page 3: Wearing The Headset
The WH20 consists of the following parts: COLLAPSIBLE MICROPHONE BOOM The WH20 headset features a collapsible boom for shipment and storage. Before wear- ing the headset, unfold the boom until it snaps and locks into place. Refold for storage or transportation. - Page 4 WEARING THE HEADSET FIGURE 2 ADJUSTING THE HEADSET • If the headset feels loose or uncomfortable, carefully bend the sides of the wireframe to make it tighter or looser (Figure 4A). The angle of the wireframe earpieces may also need adjustment (Figure 4B).
-
Page 5: Using The Clothing Clip
OPERATION Connect the WH20 to the microphone input of a wireless microphone transmitter or a bal- anced wired microphone input. NOTE: The WH20 is a dynamic microphone and has inherently lower output than condenser microphones. -
Page 6: Specifications
Slide the headband around the wireframe to its original position. Reattach the cable with the plastic retainer. Note that the elastic headband supplied with the WH20 is not a standard size; head- bands purchased in stores are too long for this application. - Page 7 (ground) of microphone output phone plug connector. WH20QTR, WH20TQG used with Shure Wireless Systems: 1/4-inch Phone Jack Receiver Outputs: Positive sound pressure on diaphragm produc- es positive voltage on tip of receiver output connector.
-
Page 8: Replacement Parts
Construction Black thermoplastic housing; stainless steel grille; black TEFLON frame; flexible plastic-clad monel gooseneck; rubber/nylon elastic headband Net Weight (including connector) WH20: 63 g (2.2 oz) WH20TQG: 63 g (2.2 oz) WH20XLR: 98 g (3.5 oz) CERTIFICATION Eligible to bear CE Marking.Conforms to European EMC Directive 89/336/EEC. Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residen- tial (E1) and light industrial (E2) environments. -
Page 9: Wiring Diagrams
CARTRIDGE WH20QTR CARTRIDGE WH20XLR CARTRIDGE WH20TQG SHIELD BLACK MINI FOUR-PIN CONNECTOR BLACK SHIELD WIRING DIAGRAMS FIGURE 8 1/4” CONNECTOR BLACK SHIELD XLR CONNECTOR... - Page 10 United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Int’l Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055...
