� This guide shows you how to connect your speakers and DVD player and enjoy multi-channel surround sound.

� For full details on using this unit, refer to the main operating instructions.

� Please be certain that this unit is unplugged from the AC outlet before making any connections.

■If you have 5.1 ch speakers

• Be sure to connect speakers firmly and correctly

according to the channel (left and right) and the

polarity (+ and -). If the connections are faulty, no

sound will be heard from the speakers, and if the

polarity of the speaker connection is incorrect, the

sound will be unnatural and lack bass.

■Caution

• Be sure to use the speakers with the impedance of

6 ohms or above.

• Do not let the bare speaker wires touch each other

or any metal part of this unit. This could damage

this unit and/or the speakers.

• Never touch the speaker terminals while the AC

input cord is connected to the wall AC outlet.

Doing so could result in electric shocks.

Placing Speakers

■If you have 7.1 ch speakers

1. Front Left

2. Front Right

3. Center

4. Surround Left

5. Surround Right

6. Subwoofer

7. Surround Back Left

8. Surround Back Right

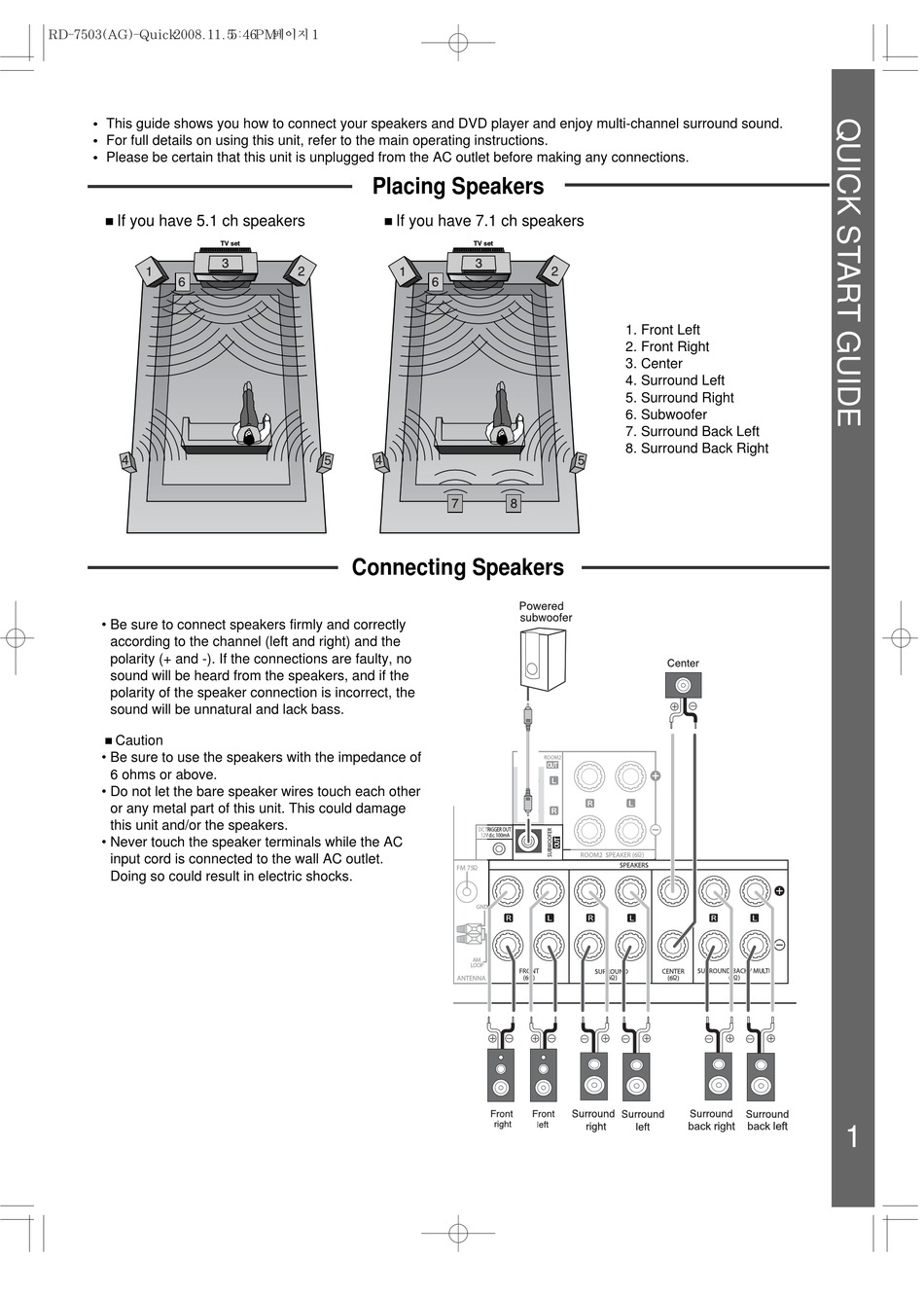

Page 1: Placing Speakers
RD-7503(AG)-Quick 2008.11.5 5:46 PM 페이지 1 � This guide shows you how to connect your speakers and DVD player and enjoy multi-channel surround sound. � For full details on using this unit, refer to the main operating instructions. � Please be certain that this unit is unplugged from the AC outlet before making any connections. ■If you have 5.1 ch speakers •...
Page 2 RD-7503(AG)-Quick 2008.11.5 5:46 PM 페이지 2 ■Connecting a TV • Connect the TV to the same type of Monitor video output that you did connect to the DVD player, as shown. ■Connecting a DVD Player • Use a Component, S-video or (composite) video cable to connect this unit's VIDEO 2 to the corresponding video output on your DVD player, as shown.
Page 3 RD-7503(AG)-Quick 2008.11.5 5:46 PM 페이지 3 1. Connect the AC input cord. 2. Press the [POWER] switch on the front panel to enter the standby mode. 3. In the standby mode, press the [ON/STANDBY] button on the front panel or [POWER ON] button on the remote control to enter the operating mode.
Page 4: Enjoying Surround Sound
[SURROUND </>] buttons to select the surround mode. ■Note : • You should adjust the speaker settings for the optimum sound acoustics according to your environment and speaker layout. (For details, refer to "SETTING THE SPEAKER/ROOM EQ SETUP" on the main operating instructions.) Enjoying Surround Sound 5227-00000-084-0S...
