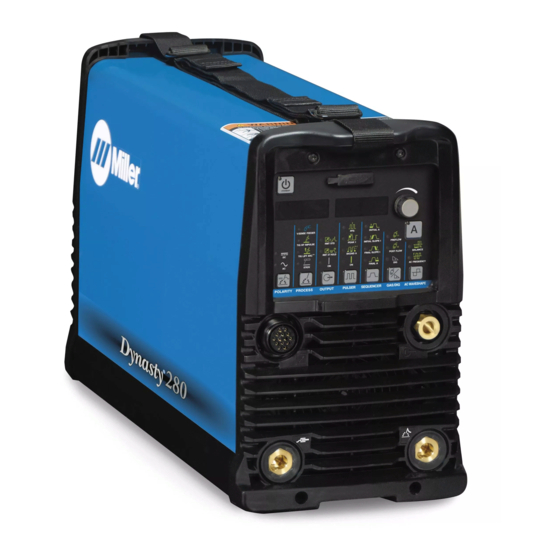

Miller Dynasty Series Quick Reference

Feature
Selection
POLARITY
PROCESS
OUTPUT

DC TIG Setup

PULSER*
Steel Alloys
Stainless Steels
SEQUENCER*
Nickel Alloys
Copper Alloys
Titanium
GAS/DIG
AC
WAVESHAPE
Tungsten Selection Cerium
Lanthanum
See Tungsten Selection
and Prep section.
Thorium
Feature
Selection
POLARITY
PROCESS
OUTPUT
PULSER*

AC TIG Setup

SEQUENCER*
Aluminum
Magnesium
GAS/DIG
AC
WAVESHAPE
Tungsten Selection
Cerium
See Tungsten Selection
Lanthanum
and Prep section.
* Feature only available on DX models.
** Feature only available on 350 and 700 models.
Dynasty
Recommended
Setting Notes
DC Automatically sets output to DCEN
TIG HF Impulse Standard setup for high-frequency (HF) starts
RMT STD Standard setting for remote foot control
OFF Advanced control — see Pulsed TIG section
Not used in RMT STD. Select RMT 2T Hold
N/A
output to enable internal weld sequence control.
PREFLOW ** : 0.2 sec
Provides gas shielding before the arc start
Automatically adjusts postflow time for
POSTFLOW: AUTO
maximum weld amps
DIG: N/A STICK welding function — NOT used for TIG
N/A AC TIG function — NOT used in DC
PURE TUNGSTEN (green) is NOT recommended!
For best results use a sharpened cerium or
lanthanum electrode when welding these alloys.
Recommended
Setting Notes
AC Automatically sets output to AC
TIG HF Impulse Standard setup for high-frequency (HF) starts
RMT STD Standard setting for remote foot control
OFF Advanced control — see Pulsed TIG section
Not used in RMT STD. Select RMT 2T Hold
N/A
output to enable internal weld sequence control.
PREFLOW ** : 0.2 sec
Provides gas shielding before the arc start
Automatically adjusts postflow time for
POSTFLOW: AUTO
maximum weld amps
DIG: N/A STICK welding function — NOT used for TIG
}
EN/EP Amps**
1:1 Ratio
See AC Waveshape section
AC Balance
70–75% EN
for complete descriptions.
AC Frequency
120 Hz
PURE TUNGSTEN (green) is NOT recommended!
For best results use a sharpened cerium or
lanthanum electrode when welding these alloys.
Read and follow all labels and the Owner's Manual carefully before installing, operating, or servicing unit.
Read the safety information at the beginning of the manual and in each section.
Note: These settings are intended to be a starting point for control panel setup — this is not a welding procedure specification nor a substitute for procedure qualification.
Quick Reference
®

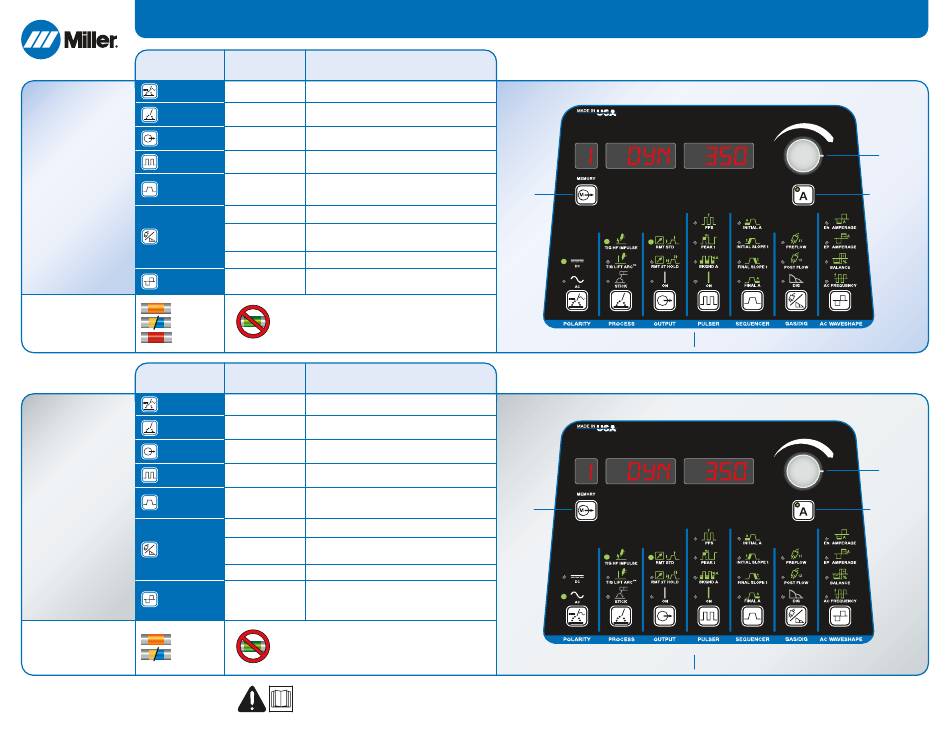

Tip: Select memory (if desired), then setup weld parameters from left to right.
Press to
Select
Memory**
LEDs indicate Polarity, Process and Output.
Note: Last procedure recall function stores settings for AC and DC welding in each memory level.
Press to
Select
Memory**
LEDs indicate Polarity, Process and Output.
Visit MillerWelds.com
Turn to Adjust
Parameter
Press to View
and Adjust
Main Amps
Select parameter above to view and adjust set value.
Turn to Adjust
Parameter
Press to View
and Adjust
Main Amps
Select parameter above to view and adjust set value.
Selected
Selected
