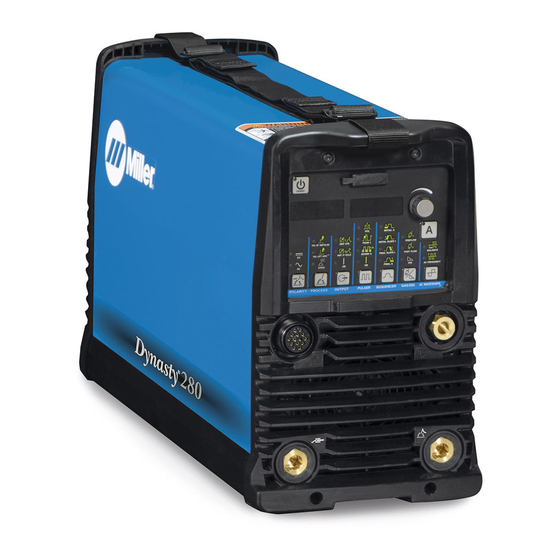

Miller Dynasty 280 Owner's Manual

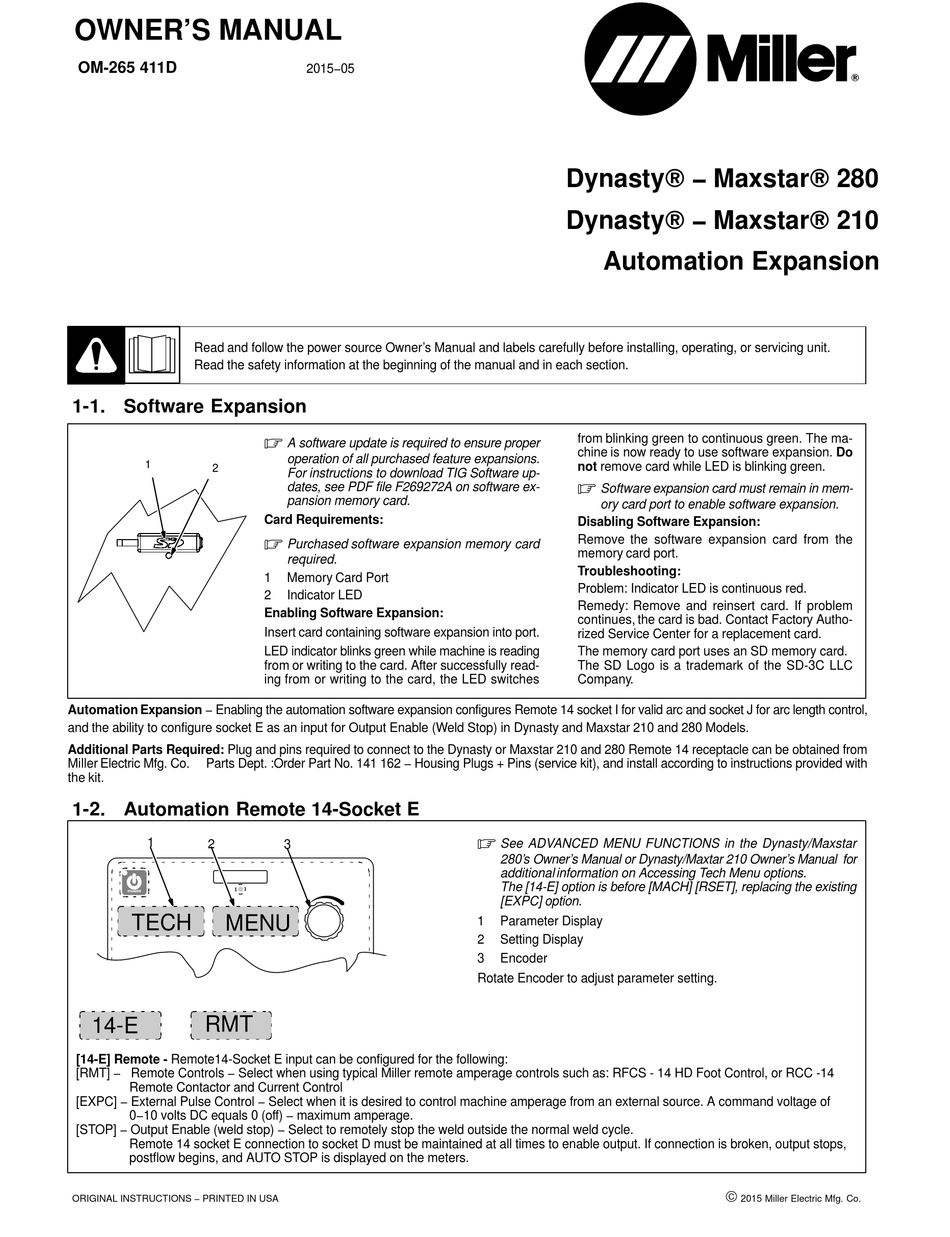

OWNER'S MANUAL
OM-265 411D
Read and follow the power source Owner's Manual and labels carefully before installing, operating, or servicing unit.
Read the safety information at the beginning of the manual and in each section.
1-1. Software Expansion
1
2
Automation Expansion − Enabling the automation software expansion configures Remote 14 socket I for valid arc and socket J for arc length control,
and the ability to configure socket E as an input for Output Enable (Weld Stop) in Dynasty and Maxstar 210 and 280 Models.
Additional Parts Required: Plug and pins required to connect to the Dynasty or Maxstar 210 and 280 Remote 14 receptacle can be obtained from
Miller Electric Mfg. Co. Parts Dept. :Order Part No. 141 162 − Housing Plugs + Pins (service kit), and install according to instructions provided with
the kit.
1-2. Automation Remote 14-Socket E
1
2
TECH
MENU
RMT
14-E
[14-E] Remote - Remote14-Socket E input can be configured for the following:
[RMT] − Remote Controls − Select when using typical Miller remote amperage controls such as: RFCS - 14 HD Foot Control, or RCC -14
Remote Contactor and Current Control
[EXPC] − External Pulse Control − Select when it is desired to control machine amperage from an external source. A command voltage of
0−10 volts DC equals 0 (off) − maximum amperage.
[STOP] − Output Enable (weld stop) − Select to remotely stop the weld outside the normal weld cycle.
Remote 14 socket E connection to socket D must be maintained at all times to enable output. If connection is broken, output stops,
postflow begins, and AUTO STOP is displayed on the meters.
ORIGINAL INSTRUCTIONS − PRINTED IN USA
2015−05
.
A software update is required to ensure proper
operation of all purchased feature expansions.
For instructions to download TIG Software up-
dates, see PDF file F269272A on software ex-
pansion memory card.
Card Requirements:
.
Purchased software expansion memory card
required.
1 Memory Card Port
2 Indicator LED
Enabling Software Expansion:
Insert card containing software expansion into port.
LED indicator blinks green while machine is reading
from or writing to the card. After successfully read-
ing from or writing to the card, the LED switches
3
Dynasty) − Maxstar) 280
Dynasty) − Maxstar) 210
Automation Expansion
from blinking green to continuous green. The ma-
chine is now ready to use software expansion. Do
not remove card while LED is blinking green.
.
Software expansion card must remain in mem-
ory card port to enable software expansion.
Disabling Software Expansion:
Remove the software expansion card from the
memory card port.
Troubleshooting:
Problem: Indicator LED is continuous red.
Remedy: Remove and reinsert card. If problem
continues, the card is bad. Contact Factory Autho-
rized Service Center for a replacement card.
The memory card port uses an SD memory card.
The SD Logo is a trademark of the SD-3C LLC
Company.
.
See ADVANCED MENU FUNCTIONS in the Dynasty/Maxstar
280's Owner's Manual or Dynasty/Maxtar 210 Owner's Manual for
additional information on Accessing Tech Menu options.
The [14-E] option is before [MACH] [RSET], replacing the existing
[EXPC] option.
1 Parameter Display
2 Setting Display
3 Encoder
Rotate Encoder to adjust parameter setting.
©
2015 Miller Electric Mfg. Co.
