Watching TV

Simple operations for watching a TV program

Antennas

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,
plug it into the antenna terminal at the rear of the AVC System.
NOTE
• The antenna and the cable converter cannot be connected at the same time.
1. A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal without
tools (not supplied).
2. A 300-ohm system is a flat "twin-lead" cable that can be
attached to a 75-ohm terminal through a 300/75-ohm
adapter (not supplied).

Cable converter/VCR connection

• Be sure to connect the antenna or the cable converter as follows. Signal reception may fail if improperly connected.
• Be sure to remember what kind of connection is made with your System.
• The connection type will determine whether to select "Air" or "Cable" for both ANT-A and B when configuring "Air/Cable"
settings.

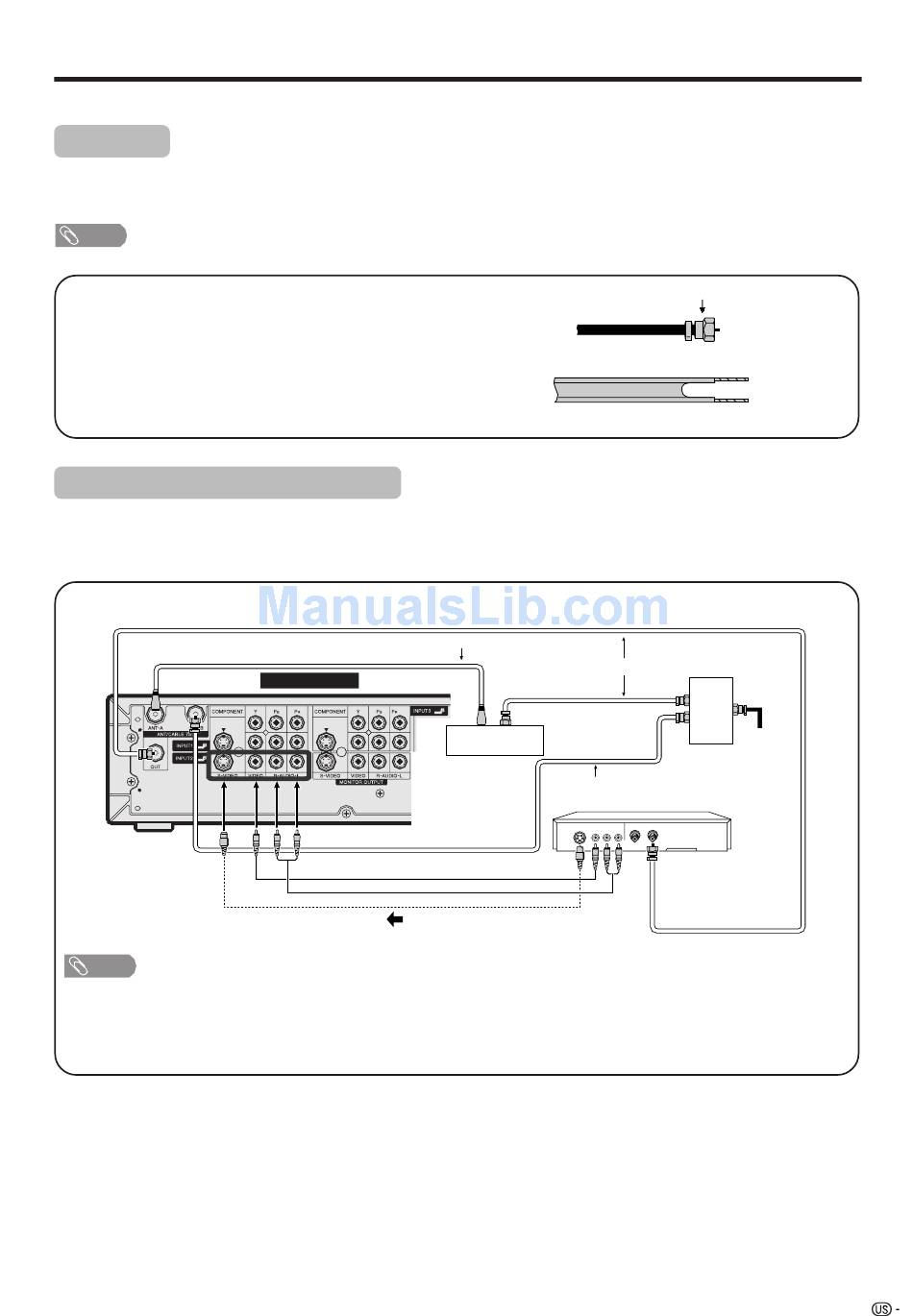

A-1. Connecting with Converter/Descrambler Box and VCR
NOTE
• Be sure to remember what kind of connection is made with your System.
• Shown here is the preferred method of connecting a VCR and CATV Converter to your TV if you are in an area with good
signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the
VCR's TV/VCR switch and you can enjoy stereo tape playback from a stereo VCR.
• If your VCR has an S-Video terminal, S-video connection is recommended.
Coaxial Antenna Cable (commercially available)
Rear Terminals
Video Cable (commercially available)
Audio Cable (commercially available)
S-video Cable (commercially available)
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
Coaxial Antenna Cable (commercially available)
OUT IN
Cable TV converter
(not supplied)
Coaxial Antenna Cable (commercially available)
VCR
S-VIDEO VIDEO AUDIO
F-type connector
2-way
signal
splitter
(not
supplied)
Cable lead-in
OUT IN
17
