MKH 416 P48 U3

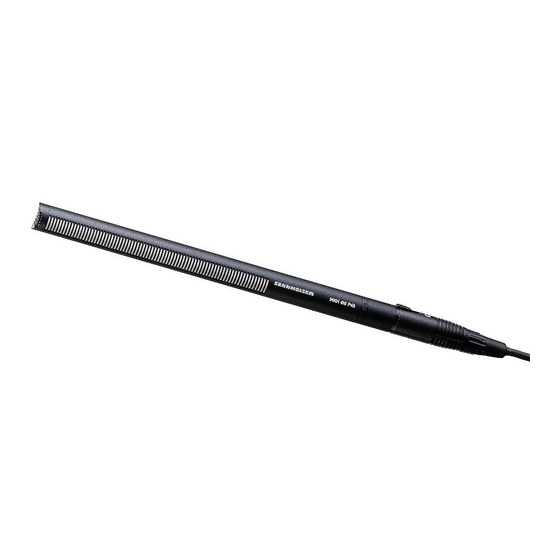

MKH 416 P48 U3 Short Shotgun Microphone
The MKH 416 is a short gun interference tube microphone. Its excellent directivity and compact
design, high consonant articulation and feedback rejection make the MKH 416 a superb all-round
microphone for film, radio and television, especially for outside broadcast applications.
Features—Benefits
• Interference tube principle
• Very low inherent self-noise
• High sensitivity
• Transformerless and fully floating balanced output
• Rugged, suitable for adverse climatic conditions
• Matt black all-metal body
• Increased directivity
• Optimum S/N ratio
• Lower gain on input channels required
• Lowest noise and greatest signal stability
• Highly immune to humidity in all conditions. Extremely stable.
• Visually "low key"
Technical Data
Pick-up pattern
super-cardioid/lobar
Frequency response
40–20,000 Hz
Sensitivity (free field, no load)
(1 kHz) 25 mV/Pa ± 1 dB
Nominal impedance
25
Min. terminating impedance
800
Equivalent noise level
A-weighted (DIN IEC 651)
approx. 13 dB
CCIR-weighted (CCIR 468-3)
approx. 24 dB
Max. sound pressure level
130 dB at 1 kHz
Power supply phantom
48 ± 12 V
Supply current
2 mA
Dimensions in inches
.74 x 9.84
Weight approx.
5.82 oz
