Keys
Card reader
•
To insert, carefully slide the card into the slot until it clicks into place
•
To remove, carefully push in the card until it clicks out of place
System controls dialog
Used for quick access to system settings.
To activate:
•
press the power key
¼ Note:
The content of the system controls dialog depends on connected equipment
and active panel.

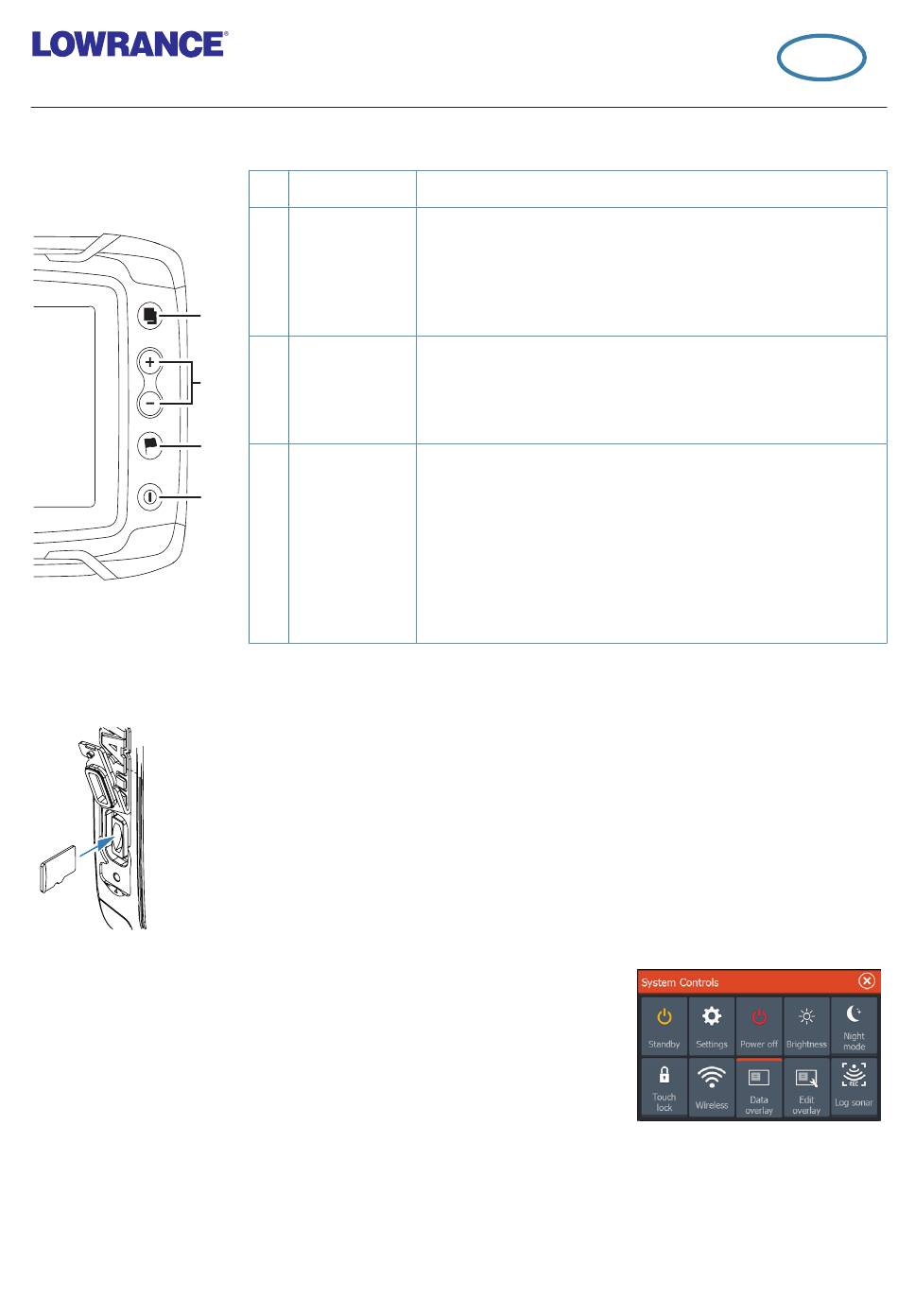

01-EN-988-12222-001
ELITE Ti
Quick Guide
A
Pages
Zoom in/
B
out
A
B
C
Waypoint
C
D
D
Power
2
•
Press to activate the home page
•
Press to zoom the image
•
Simultaneous press both keys to save a Man
Overboard (MOB) waypoint at the current
vessel position
•
Press to open the new waypoint dialog
•
Press twice to save a waypoint
•
Press and hold to access the find dialog
•
Press to turn the unit ON
•
Press and hold to turn the unit OFF
•
When ON press once to display the system
controls dialog
-
repeat short presses to cycle the
backlight brightness
ELITE Ti
|
Quick Guide - EN
2
EN
|
1
