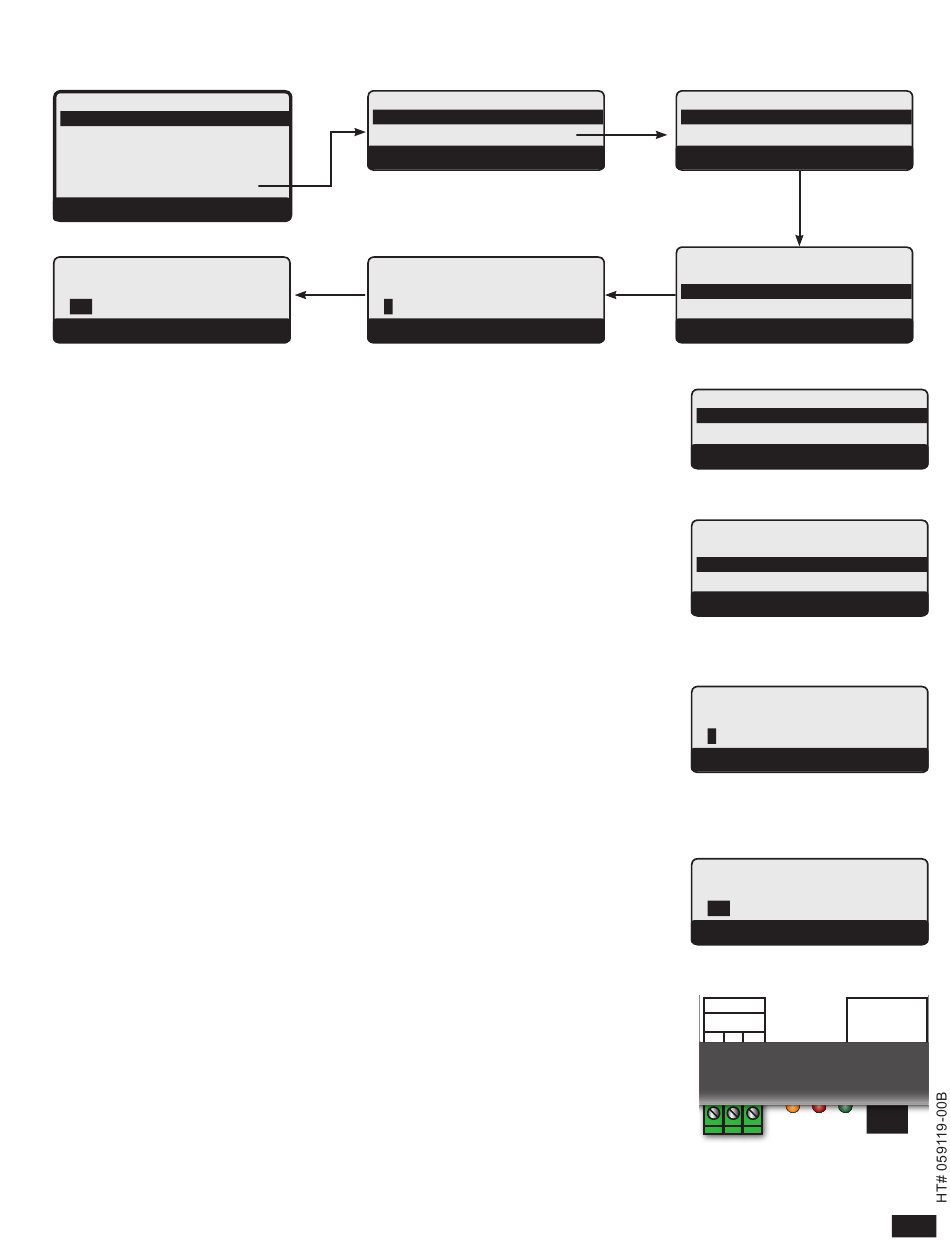

BaCneT STarTuP Menu SeTuP

-------- SETTINGS ----
Season Winter
System Target 140
<System Settings>
<Maintenance>
<System Startup>
▲ ▼ SELECT
BACK
---- BACNET ID ----
477000
[
▲ ▼
BACK
BaCnet Mode
Enable, Disable
Button: MENU/<System Startup>/.... Sensor Fault/BACnet Mode
• This menu option enables or disables the BACnet MSTP capability. When enabled,
additional BACnet settings shall be available for further customizing.
BaCnet Baud rate
9600, 19200, 38400
Button: MENU/<System Startup>/.... Sensor Fault/BACnet Mode/BACnet Baudrate
• For the control to communicate over a BAcnet MS/TP network, it must use the same Baud
rate as the rest of the network. The control offers three Baud Rates.
• If communication was not successful, the baud rate could be the cause. Check with the
network administrator for the network baud rate. Then match it on the control.
MS/TP address
1 to 127
Button: MENU/<System Startup>/.... /BACnet Mode/BACnet Baudrate/ MSTP
Address
• Each device on the MS/TP network must have a unique address.
• This is the MS/TP address on a RS485 network. Its MS/TP range is 1 though 127.
• The MS/TP address must be provided by the Network Administrator.
BaCnet ID
1 to 4,000,000
Button: MENU/<System Startup>/.... / MSTP Address / BACnet ID
• The BACnet ID is a unique 32 bit number that identifies the control within the BACnet
network. No two ID shall be the same even if dealing across networks.
• It must be provided by the BACnet Network Administrator.

LeD

Yellow LED Flashes on communication between the BACnet Interface Module
and the control.
Green LED Flashes on communication between the BACnet Interface Module
and the BACnet network.
Red LED Flashes steadily to indicate the BACnet Interface Module is
operational.
BaCnet Interface Module Installation and Configuration Manual
-- ARE YOU SURE? --
No
o
Yes
F
BACK
----MS/TP ADDRESS----
] [
SAVE BACK
▲ ▼
SAVE
1
]
▲ ▼
SAVE
Default: Disable
Default: 19200
Default: 64
Default: 477,000
--- BACNET MODE ---
Disable
Enable
▲ ▼
BACK SAVE
- BACNET BAUDRATE -
9600
19200
38400
▲ ▼
BACK SAVE
--- BACNET MODE ---
Disable
Enable
▲ ▼
BACK
- BACNET BAUDRATE -
9600
19200
38400
▲ ▼
BACK
----MS/TP ADDRESS----
1
[
▲ ▼
BACK
---- BACNET ID ----
477000
[
▲ ▼
BACK
BACnet Interface M
MSTP
PRODUCT
A GND B
1 2 3
SAVE
SAVE
]
SAVE
]
SAVE
COMM
5
