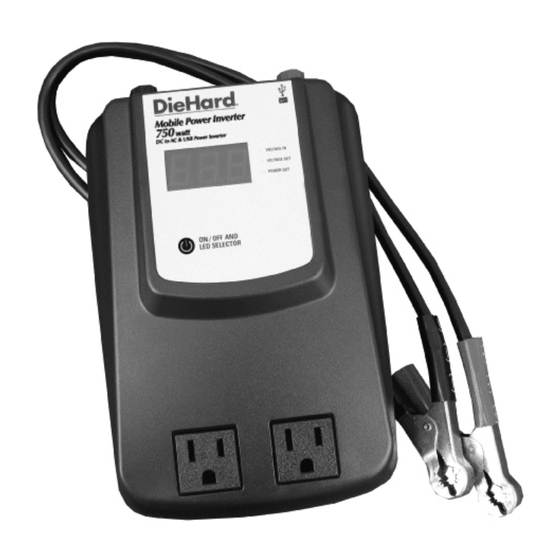

DieHard 200.71495 Owner's Manual

Converts 12v dc power to 110v ac household electrical power
Hide thumbs

Advertisement

Table of Contents

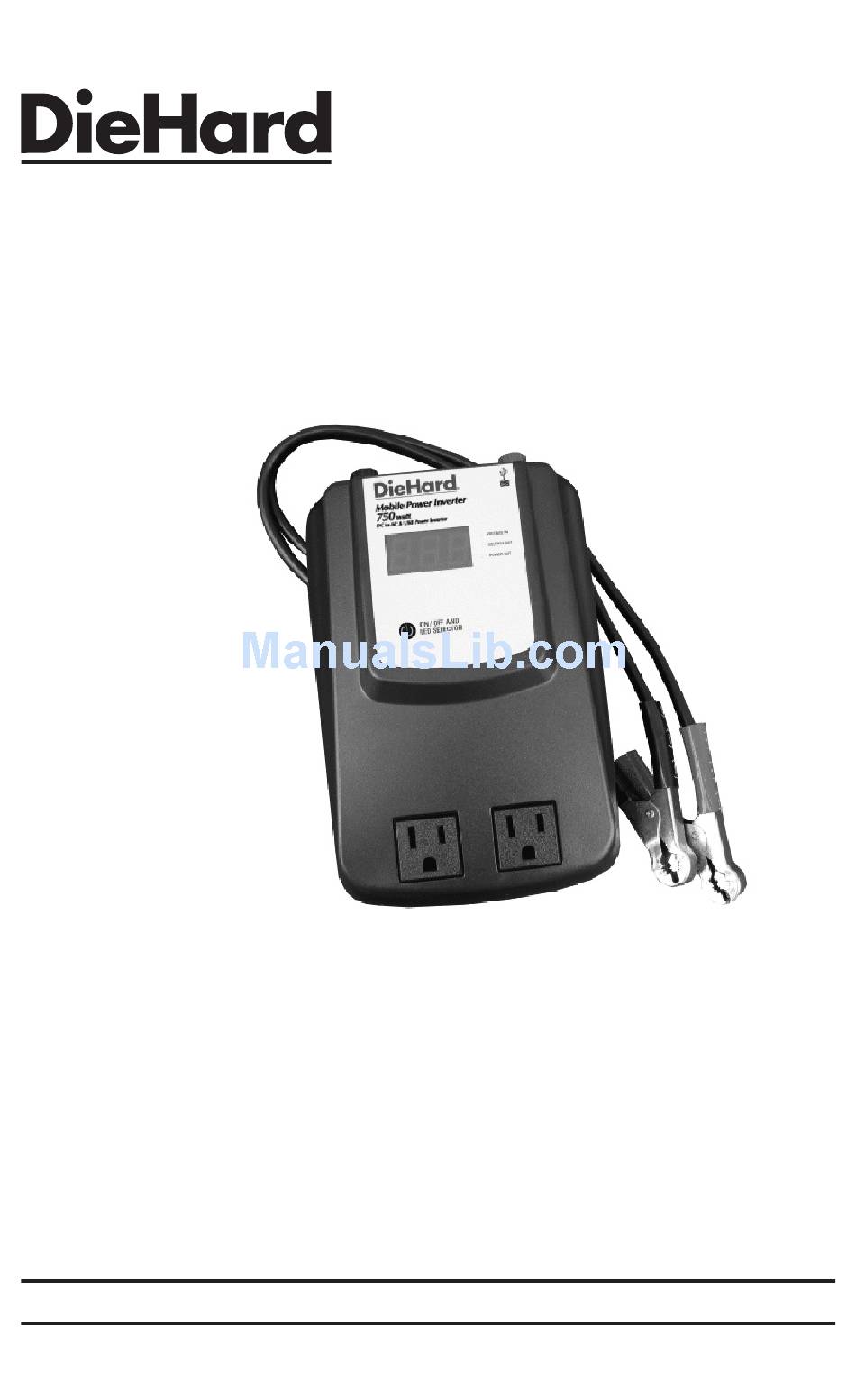

OWNER'S MANUAL
®
Power Inverter 750
Converts 12V DC Power to 110V AC
Household Electrical Power
Model No.
200.71495
CAUTION:
Read all Safety Rules and Operating Instructions,
and follow them with each use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
00-99-000862/0508

Advertisement

Table of Contents
loading

Related Manuals for DieHard 200.71495

Summary of Contents for DieHard 200.71495

  • Page 1 Converts 12V DC Power to 110V AC Household Electrical Power Model No. 200.71495 CAUTION: Read all Safety Rules and Operating Instructions, and follow them with each use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. 00-99-000862/0508...

  • Page 3: Important Safety Instructions

    Do not modify the AC or USB receptacle in any way. 1.11 Use only 40-amp or 50-amp fuses. (Replaced by certified technician only: 1-800-SEARS-64.) WARNING: Handling the cord on this product or cords associated with accessories sold with this product, may expose you to lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 4 POWER INVERTER 750 PRODUCT FEATURES Battery Clamps bEFORE USING POWER INVERTER 750 It is important to know the continuous wattage of the device you plan to use with the inverter. The Power Inverter 750 must be used with devices drawing 750 watts or less. If the wattage is not marked on the device, an estimate can be made by multiplying the AC input current (Amps) by the AC voltage (110V).
  • Page 5 CONNECTING CAbLE ASSEMbLY Determine whether you’ll be using the battery clamps (750 watt out- put maximum) or accessory plug (120 watt output maximum). Make sure that there is no device plugged into inverter before making con- nection. Unscrew the positive (red) and negative (black) plastic connector knobs from the studs on the back of the inverter.
  • Page 6 • – Inverter is not functional. Call Customer Service to trouble shoot problem, anywhere in the U.S.A. 7 am to 4:30 pm Central Time, Monday through Friday, 1-800-SEARS-64 (1-800-732-7764). • – Vehicle’s battery voltage is more than 15.5 volts. Inverter will auto- matically restart after the voltage drops below 15.0 volts.

  • Page 7: Operating Tips

    A typical automobile or marine battery at full charge will provide an ample power supply for the inverter. The actual length of time the inverter can be operated depends on the age and condition of the battery and the amount of power being drawn by the devices.

  • Page 8: Troubleshooting

    SOLUTION Cycle inverter power OFF and ON. If problem persists, use a larger inverter or a smaller device Remove defective device. Call 1-800-SEARS-64 (1-800-732-7764) for troubleshooting assistance. Recharge/replace low battery. 12 Volt battery is low. Recharge/replace low battery. Inverter will automatically shut off after battery voltage reaches 10.5 volts.

  • Page 9: Warranty

    One-Year Full Warranty on DieHard Power Inverter 750 If this Power Inverter 750 fails due to a defect in material or workmanship within one year from the date of purchase, RETURN IT TO ANY SEARS STORE or OTHER DIEHARD OUTLET IN THE UNITED STATES FOR FREE REPLACEMENT.
  • Page 10 • •...
