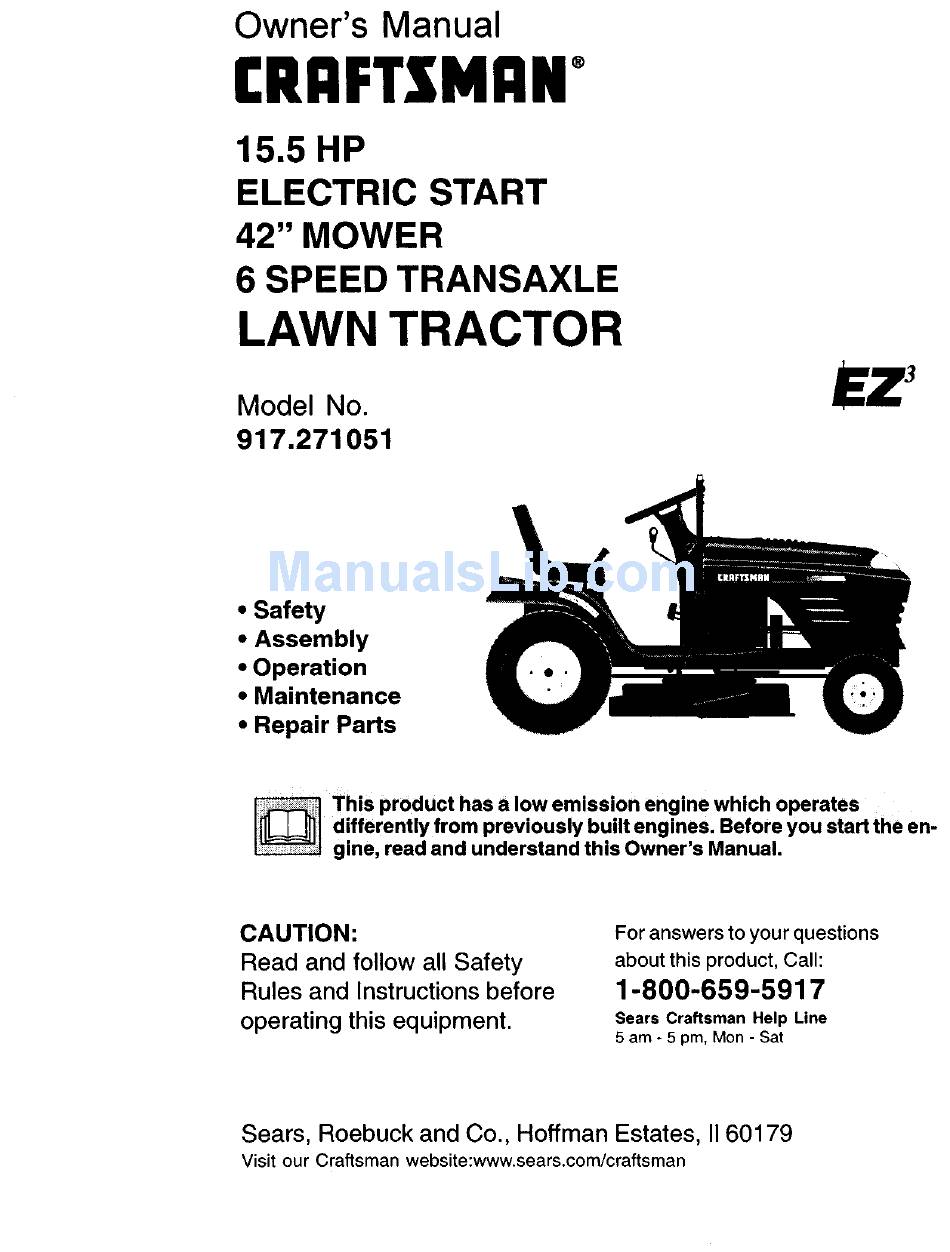

Owner's Manual
rRI:IFTSMAN °
15.5 HP
ELECTRIC
START
42" MOWER
6 SPEED TRANSAXLE
LAWN TRACTOR
Model No.
917.271051
• Safety
• Assembly
• Operation
• Maintenance
• Repair
Parts
This product
has a low emission
engine which operates
differently
from previously
built engines.
Before you start the en-
gine, read and understand
this Owner's
Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product,
Call:
1-800-659-5917
Sears Craftsman
Help Line
5 am * 5 pm, Mon- Sat
Sears, Roebuck and Co., Hoffman Estates, II 60179
Visit our Craftsman
website:www.sears.com/craftsman
