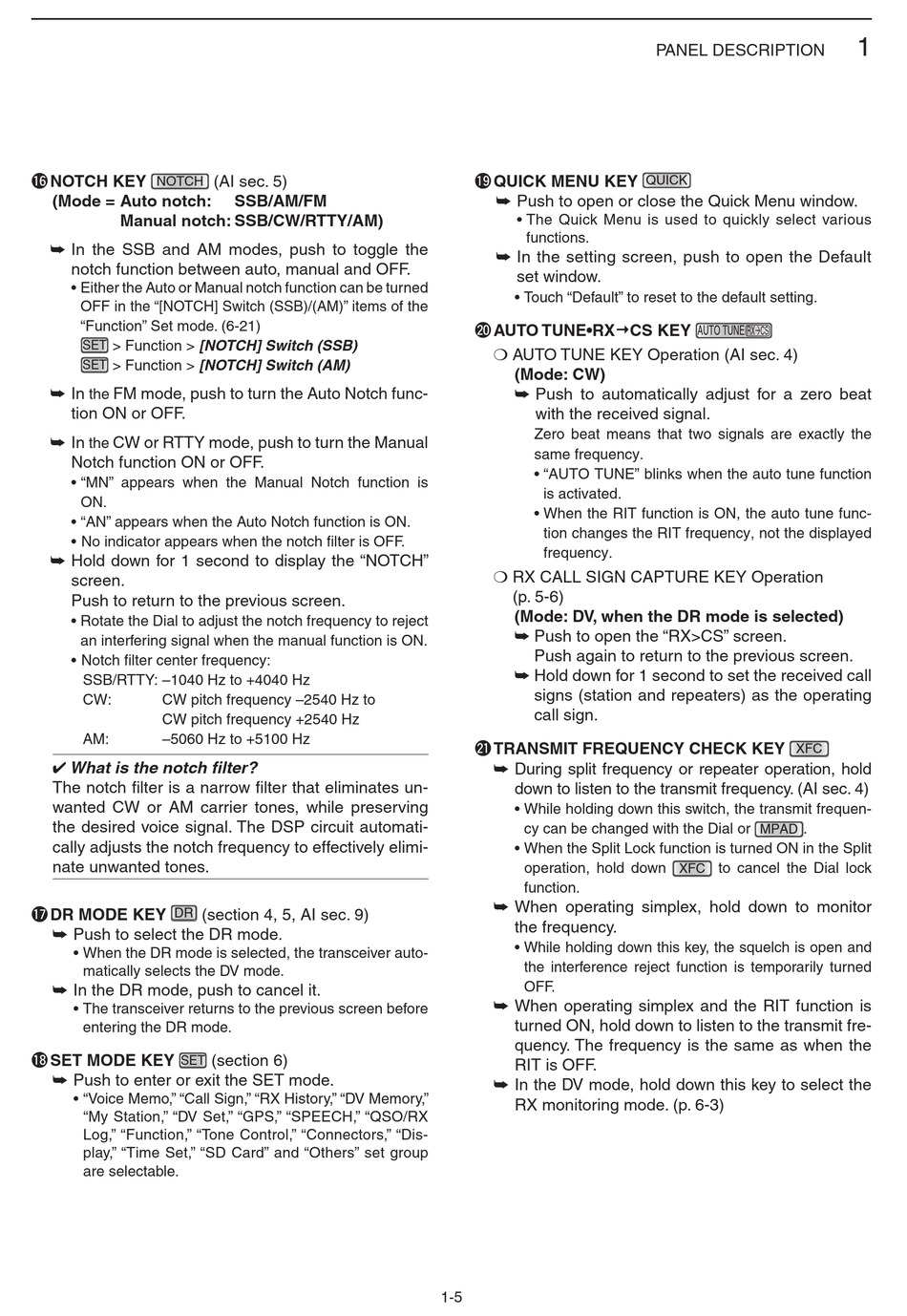

Icom IC-7100 Instruction Manual page 9

!6 NOTCH KEY
NOTCH
(Mode = Auto notch:
Manual notch: SSB/CW/RTTY/AM)
➥ In the SSB and AM modes, push to toggle the
notch function between auto, manual and OFF.
• Either the Auto or Manual notch function can be turned
OFF in the "[NOTCH] Switch (SSB)/(AM)" items of the
"Function" Set mode. (6-21)
> Function > [NOTCH] Switch (SSB)
SET
> Function > [NOTCH] Switch (AM)
SET
➥ In FM mode, push to turn the Auto Notch func-
the
tion ON or OFF.
➥ In CW or RTTY mode, push to turn the Manual
the
Notch function ON or OFF.
• "MN" appears when the Manual Notch function is
ON.
• "AN" appears when the Auto Notch function is ON.
• No indicator appears when the notch filter is OFF.
➥ Hold down for 1 second to display the "NOTCH"
screen.
Push to return to the previous screen.
• Rotate the Dial to adjust the notch frequency to reject
an interfering signal when the manual function is ON.
• Notch filter center frequency:
SSB/RTTY: –1040 Hz to +4040 Hz
CW: CW pitch frequency –2540 Hz to
CW pitch frequency +2540 Hz
AM: –5060 Hz to +5100 Hz
✔ What is the notch filter?
The notch filter is a narrow filter that eliminates un-
wanted CW or AM carrier tones, while preserving
the desired voice signal. The DSP circuit automati-
cally adjusts the notch frequency to effectively elimi-
nate unwanted tones.
!7 DR MODE KEY
DR
➥ Push to select the DR mode.
• When the DR mode is selected, the transceiver auto-
matically selects the DV mode.
➥ In the DR mode, push to cancel it.
• The transceiver returns to the previous screen before
entering the DR mode.
!8 SET MODE KEY
SET
➥ Push to enter or exit the SET mode.
• "Voice Memo," "Call Sign," "RX History," "DV Memory,"
"My Station," "DV Set," "GPS," "SPEECH," "QSO/RX
Log," "Function," "Tone Control," "Connectors," "Dis-
play," "Time Set," "SD Card" and "Others" set group
are selectable.
(AI sec. 5)
SSB/AM/FM
(section 4, 5, AI sec. 9)
(section 6)
!9 QUICK MENU KEY
➥ Push to open or close the Quick Menu window.
• The Quick Menu is used to quickly select various
functions.
➥ In the setting screen, push to open the Default
set window.
• Touch "Default" to reset to the default setting.
@0 AUTO TUNE•RXCS KEY
❍ AUTO TUNE KEY Operation (AI sec. 4)
(Mode: CW)
➥ Push to automatically adjust for a zero beat
with the received signal.
Zero beat means that two signals are exactly the
same frequency.
• "AUTO TUNE" blinks when the auto tune function
is activated.
• When the RIT function is ON, the auto tune func-
tion changes the RIT frequency, not the displayed
frequency.
❍ RX CALL SIGN CAPTURE KEY Operation
(p. 5-6)
(Mode: DV, when the DR mode is selected)
➥ Push to open the "RX>CS" screen.
Push again to return to the previous screen.
➥ Hold down for 1 second to set the received call
signs (station and repeaters) as the operating
call sign.
@1 TRANSMIT FREQUENCY CHECK KEY
➥ During split frequency or repeater operation, hold
down to listen to the transmit frequency. (AI sec. 4)
• While holding down this switch, the transmit frequen-
cy can be changed with the Dial or
• When the Split Lock function is turned ON in the Split
operation, hold down
function.
➥ When operating simplex, hold down to monitor
the frequency.
• While holding down this key, the squelch is open and
the interference reject function is temporarily turned
OFF.
➥ When operating simplex and the RIT function is
turned ON, hold down to listen to the transmit fre-
quency. The frequency is the same as when the
RIT is OFF.
➥ In the DV mode, hold down this key to select the
RX monitoring mode. (p. 6-3)
1-5
PANEL DESCRIPTION
QUICK
AUTO TUNE
RX�CS
XFC
.
MPAD
to cancel the Dial lock
XFC
1
