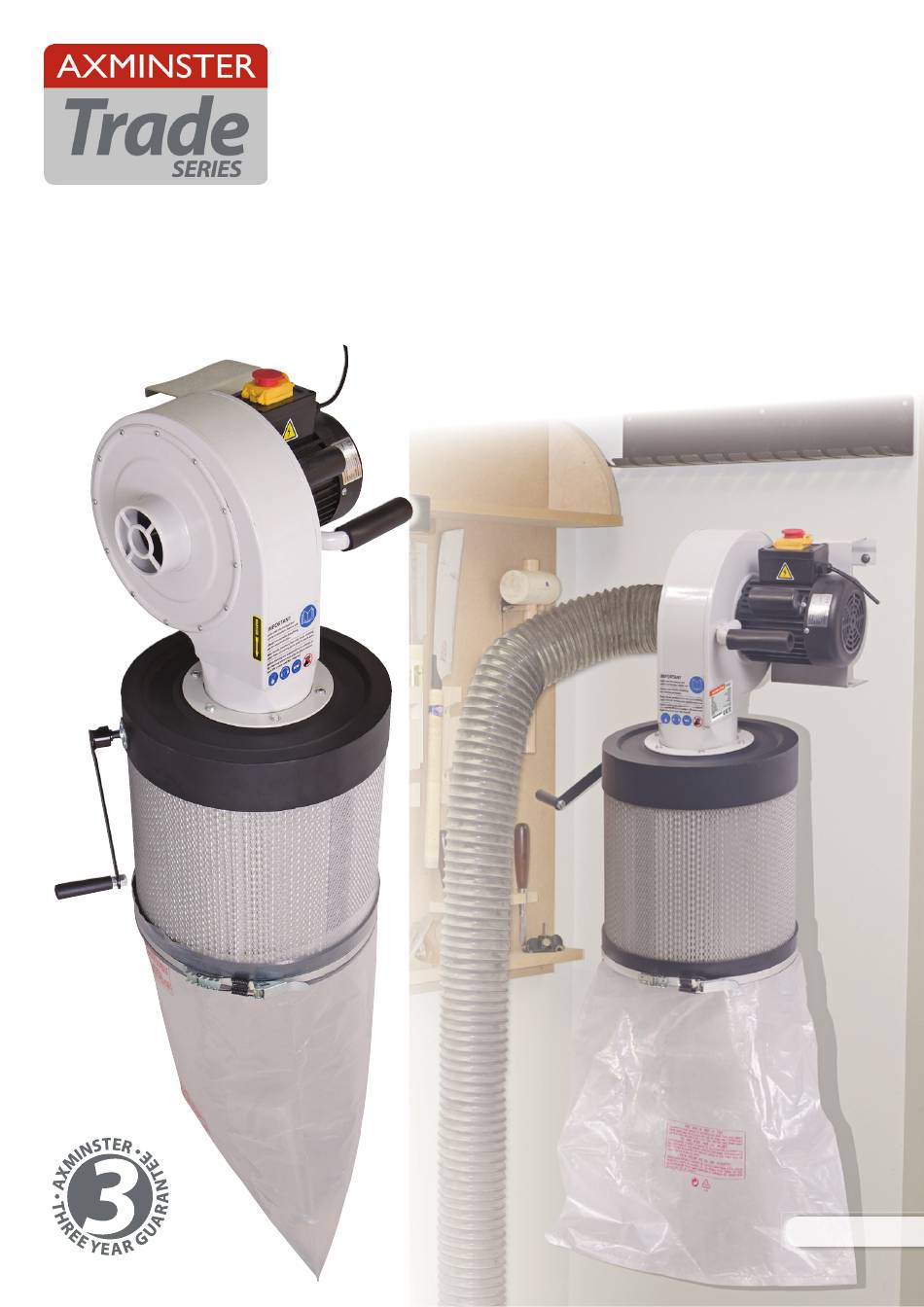

- Page 1 Code 508483 CT-50RCK Wall Mounted Extractor AT&M: 21/03/2016 BOOK REF: 101661...
-
Page 2: Declaration Of Conformity
Index of Contents Index of Contents Declaration of Conformity What’s Included General Instructions for 230V Machines Specifi c Safety for Dust Extractors 04-05 Specifi cation Assembly 05-06-07-08 Machine Footprint Illustration and Parts Description 10-11 Operating Instructions Ducting System Maintenance Weekly LEV System Maintenance Log 14-15 LEV Testing Extraction Accessories... - Page 3 What’s Included Quantity Item Part Model Number CT-50 CT-50RCK Wall Mounted Extractor 1 No Extractor Assembly 1 No Filter Assembly 1 No Wall Mounted Bracket 1 No Filter Shaker Paddle Operating Handle 1 No Filter Bag Retaining Belt 1 No Filter Dust Bag 6 No M6x19mm Hex Bolts...
- Page 4 General Instructions for 230V Machines If the work you are carrying out is liable to generate fl ying Good Working Practices/Safety grit, dust or chips wear the appropriate safety clothing, The following suggestions will enable you to observe good goggles, gloves, masks etc. If the work operation appears to working practices, keep yourself and fellow workers safe and be excessively noisy, wear ear-defenders.
- Page 5 Specifi c Safety for Dust Extractors Be aware that in dry air periods or areas, the movement of the Use the integral metal coil in fl exible plastic hosing to connect air through the machine can generate static electric fi elds. units together These are not normally a problem as the machine is bonded Try to route the power cable and the hosing away from busy...
- Page 6 Assembly Having unpacked the boxes, put all components where they are readily to hand. Extractor/Filter Assembly 1. Locate the extractor unit (1), Filter (2) and six M6x19mm Hex bolts (7), see fi g 01-02 . 2. Line up the six pre-drilled holes in the fi lter assembly (2) with the ones machined into the extractor outlet housing and secure both units together using the six M6 Hex bolts (7), see fi g 03-04-05.
- Page 7 Assembly Filter Dust Bag Mounting the Extractor to the Wall Before mounting the extractor assembly make sure you allow 1. Locate the fi lter retaining belt (5) and dust bag (6). suffi cient clearance and height to comfortably operate the NVR’s control switch and shaker paddle operating handle.
- Page 8 Assembly NOTE: YOU WILL REQUIRE ASSISTANCE FOR THE NEXT STEP! 4. With assistance lift the extractor assembly up and hook the angle bracket, mounted to the underside of the motor assembly down over the wall mounting bracket (3), see fi g 15. Fig 15 Angle bracket Extraction Hose (NOT Supplied)
- Page 9 Machine Footprint 495mm 1,470mm 1,470mm 1,650mm 180mm Workshop Floor...
- Page 10 Illustration and Parts Description Extractor assembly Motor assembly Tube handle Dust extraction Shaker paddle operating handle Filter Bag retaining belt Filter dust bag...
- Page 11 Illustration and Parts Description NVR switch assembly with emergency stop shroud Fan housing Angle bracket Power cable Motor vents Emergency stop “SLAP” the shroud down to “STOP” the machine Filter bag retaining belt Shaker paddle operating handle NVR control switch assembly with emergency stop shroud...
-
Page 12: Operating Instructions
IF THE EXTRACTOR FAILS TO START UP OR THERE ARE ANY STRANGE NOISES APART FROM VIBRATION SOUNDS, CONTACT “TECHNICAL AFTER SALES” FOR SUPPORT. Phone: 03332 406406 Email: technical@axminster.co.uk Reduced Suction Performance After a period of time dust, sawdust and shavings can build-up causing blockages and reduced suction performance. - Page 13 Ducting System General Infomation Many manufacturers will state the volume of air required for each machine in their manual. If not, note the size of the extraction port and use the chart below outlet size volume of air required 200 m³/hr 700 m³/hr 1100 m³/hr Basic design...
- Page 14 Weekly LEV System Maintenance Log REMOVE AND CLEAN FILTERS REMOVE AND CLEAN FILTERS...
- Page 15 Weekly LEV System Maintenance Log REMOVE AND CLEAN FILTERS REMOVE AND CLEAN FILTERS Nearly 14 months it is now a legal requirement to have your system tested and certifi ed...
- Page 16 Extraction Accessories Extraction Accessories For all of our accessories please see our catalogue or visit our website at axminster.co.uk. Contact us on: Call: 03332 406406 Web: axminster.co.uk...
- Page 17 Exploded Diagram/Parts List...
- Page 18 Exploded Diagram/Parts List Description Round HD Screws M5x15mm Canister Filter Flat Washers 1/4”x18 Main Spindle Round HD Screws M6x12mm Bearing Fixing Plate Flange Screw 1/4”x1/2” Connecting Spindle Hex Bolt 1/4”x1/2”mm Bevel Gear Flange Screw 1/4”x3/4” Self-lubricating Bearings Round HDScrews M5x8mm Main Housing PE bag 58x76cm Inlet Cover...
- Page 19 Wiring Diagram...
- Page 20 Normal wear and tear; misuse, abuse and neglect are excluded and the machine should not have been engineering machines, Axminster Air compressors and Air Tools, and bench top grinders - no modified in any way. Please do not attempt to service the product without first contacting us; we are registration necessary just proof of purchase.
