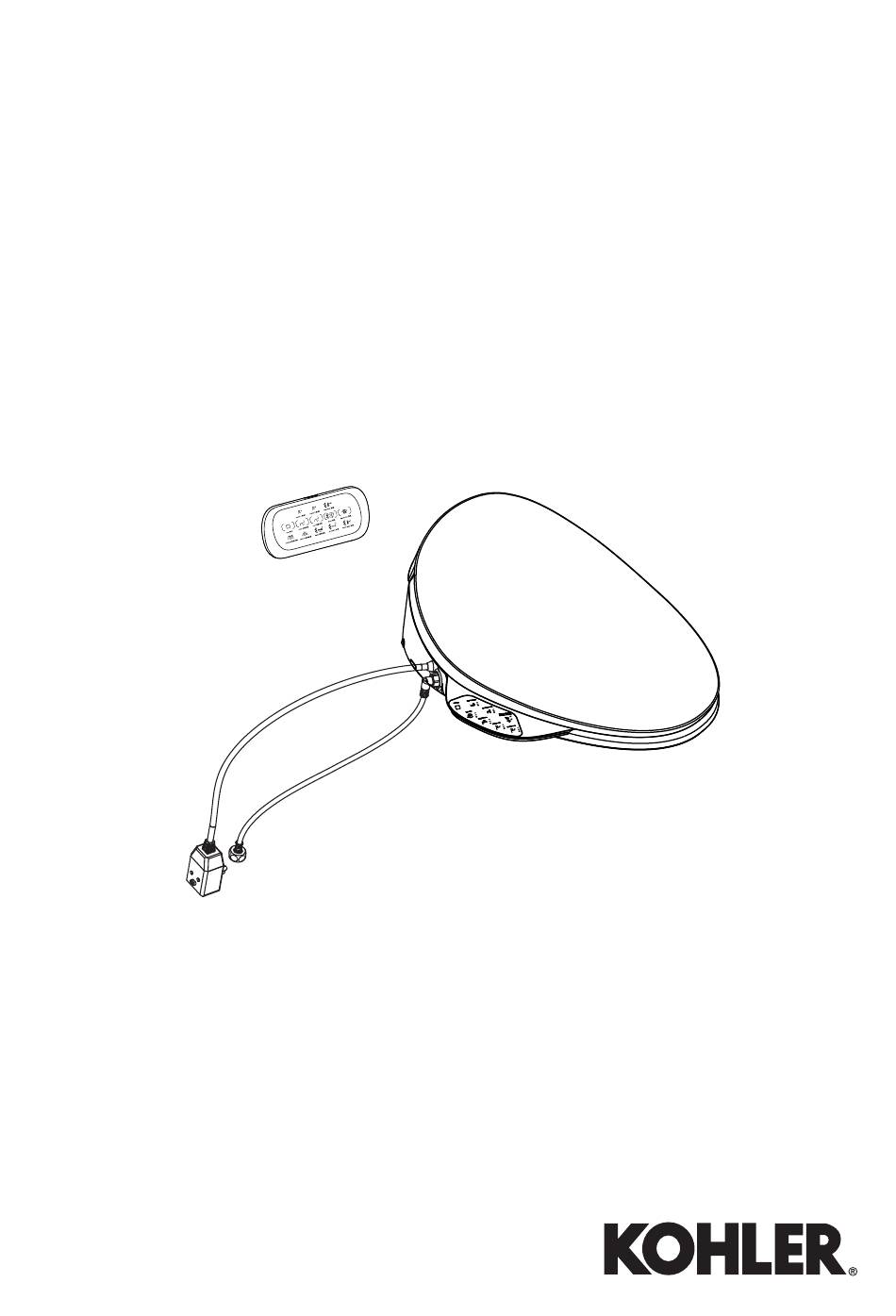

- Page 1 Installation Guide 安装说明 Toilet Seat with Bidet Functionality 清舒宝智能座便盖 K-4108T 上海科勒电子科技有限公司 上海市浦东新区金滇路18号E幢 邮编：201206 中文简体页码 2-10 中文繁體頁碼 11-19 English page 20-29 한글 페이지 30-39 1223526-T01-B...
- Page 2 220-240V AC 50/60Hz 10A 0.7kgf/cm ~7.5kgf/cm (0.07MPa~0.74MPa) 1223526-T01-B Kohler Co.
- Page 3 136-210mm ＞20mm 70mm 460-490mm 370-390mm 220-240V AC 220-240V AC 50/60Hz 10A 220-240V Kohler Co. 1223526-T01-B...
- Page 4 1223526-T01-B Kohler Co.
- Page 5 Kohler Co. 1223526-T01-B...
- Page 6 1223526-T01-B Kohler Co.
- Page 7 Kohler Co. 1223526-T01-B...
- Page 8 4 AA 1223526-T01-B Kohler Co.
- Page 9 Kohler Co. 1223526-T01-B...
- Page 10 “ ” 1223526-T01-B Kohler Co.
- Page 11 220-240V AC 50/60Hz 10A 0.7kgf/cm2~7.5kgf/cm2(0.07MPa~0.74MPa) Kohler Co. 1223526-T01-B...
- Page 12 136 - 210 mm 20mm 70mm 460 - 490mm 370 - 390mm 220~240V AC 220 - 240V AC 50/60Hz 10A 220 - 240V AC 1223526-T01-B Kohler Co.
- Page 13 Kohler Co. 1223526-T01-B...
- Page 14 1223526-T01-B Kohler Co.
- Page 15 Kohler Co. 1223526-T01-B...
- Page 16 1223526-T01-B Kohler Co.
- Page 17 4 AA Kohler Co. 1223526-T01-B...
- Page 18 1223526-T01-B Kohler Co.
- Page 19 “ ” Kohler Co. 1223526-T01-B...
- Page 20 Electric Drill and matched drill bit on the product surface. Please ensure sufficient ventilation in your surroundings to prevent possible damage to electronic components. 1223526-T01-B Kohler Co.
- Page 21 Otherwise, the inlet pipe thread may wear off and lead to water leakage. Unplug the seat and drain it, if the seat is not being used for an extended period of time. Kohler Co. 1223526-T01-B...
- Page 22 Flush the toilet to relieve any pressure from the water supply hoses. Position a container under the fill valve to catch any excess water. Disconnect the water supply hose from the toilet fill valve. Remove the existing toilet seat. 1223526-T01-B Kohler Co.
-
Page 23: Install The Mounting Plate
Insert a bolt through the mounting plate and the toilet mounting holes. Position the washers so they rest in the grooves of the mounting plate. Thread a nut onto each of the bolts. Handtighten the nut. Kohler Co. 1223526-T01-B... -
Page 24: Install The Seat
For All Other Installations: No need to remove the seat for seat position adjustment. Adjust the position seat and mounting plate only by loosening nuts and tighten nuts when they are adjusted to properly align with the seat. 1223526-T01-B Kohler Co. - Page 25 The motion curve is as shown by the arrows on the hook. When get off the substrate, it needs to slide upwards to the top and then towards left to the edge, then it can be easily removed. Kohler Co. 1223526-T01-B...
- Page 26 Fix the plastic base with screws. Direct the card slot in the base to the fixed base to get stuck, and slide the base down to the bottom, then the base can be fixed. 1223526-T01-B Kohler Co.
- Page 27 Open the installation back cover of the battery, and take out the battery. Fix the remote controller and the base together with sealing gasket and screws, and then put on the back cover of the battery, then anti-theft installation finished. sealing gasket Kohler Co. 1223526-T01-B...
-
Page 28: Connect The Water Supply
NOTE：Flush the water supply pipes thoroughly to remove debris. The product is designed for tap water. Make sure not to use industrial water/grey water/black water/sea water for the water supply. Check all connections for leaks and make any adjustments as needed. 1223526-T01-B Kohler Co. -
Page 29: Installation Checkout
1/3 from the front of the seat (sensor area). Proceed to the “Operation” section of the Homeowners Guide to test the various seat functions. Kohler Co. 1223526-T01-B... - Page 30 전기 드릴 및 세트드릴 비트 1223526-T01-B Kohler Co.
- Page 31 Kohler Co. 1223526-T01-B...
- Page 32 220-240V AC 1223526-T01-B Kohler Co.
- Page 33 고정 플레이트 고정 플레이트 너트 Kohler Co. 1223526-T01-B...
- Page 34 1223526-T01-B Kohler Co.
- Page 35 Screw hook board expansion Expansion screw pipe hook Kohler Co. 1223526-T01-B...
- Page 36 1223526-T01-B Kohler Co.
- Page 37 Silicone stopper Silicone stopper sealing gasket Kohler Co. 1223526-T01-B...
- Page 38 1223526-T01-B Kohler Co.
- Page 39 Kohler Co. 1223526-T01-B...
