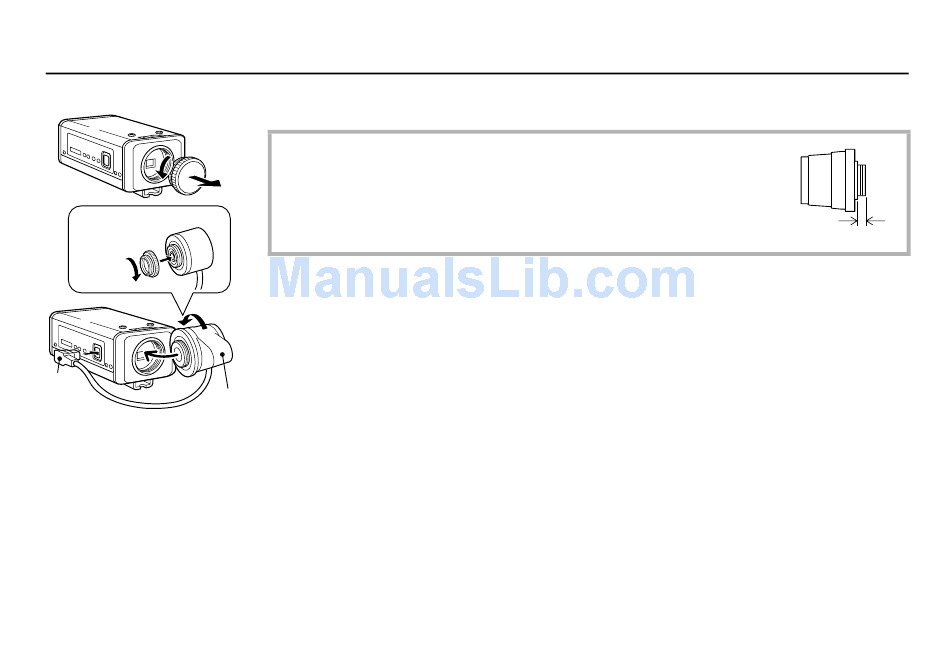

MOUNTING THE LENS
1
C mount type lens
2
3
2
CS mount
type lens
5
English
Please use a DC type auto-iris lens (sold separately).
Check the lens mount
Do not use a lens if the length "L" is more than 5 mm. That may damage
the camera and prevent proper installation.
1
Remove the lens mount cap from the camera.
2
Install the auto-iris lens.
CS mount type lens
Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.
C mount type lens
To allow for flange-back adjustment, install the C-mount adaptor (option) on the lens mount,
then carefully align the lens mount with the camera opening and turn the lens slowly to install
it.
3
Connect the lens plug to the lens iris output connector (LENS) on the side of the
camera.
When using lenses from other makers, the plug shape may not correspond to the terminal on
the camera. In such a case, remove the original plug and using a soldering iron, connect the
supplied lens iris plug according to the diagram. (Refer to page 6.)
L
