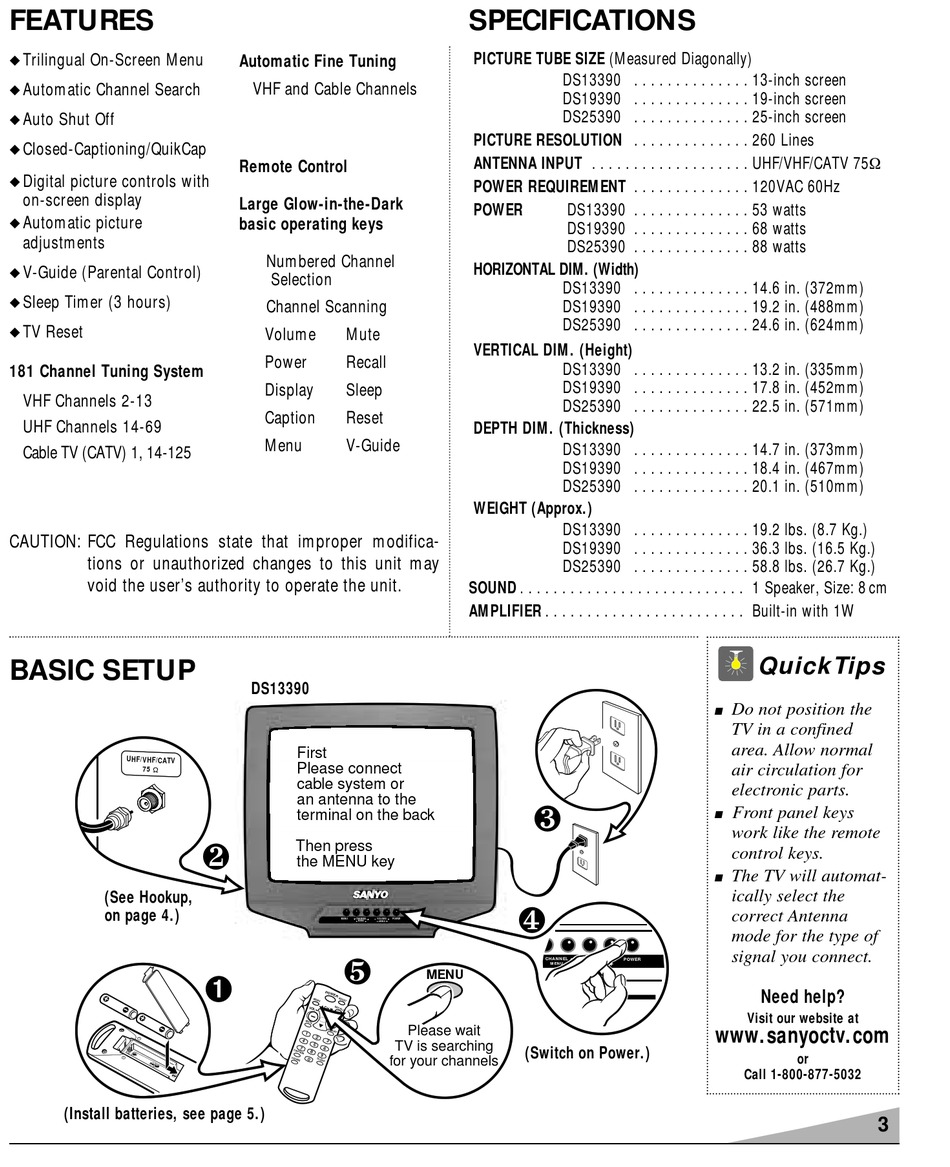

Features; Specifications; Basic Setup - Sanyo DS13390, DS19390, DS25390 Owner's Manual

FEATURES

Trilingual On-Screen Menu
Automatic Channel Search
Auto Shut Off
Closed-Captioning/QuikCap
Digital picture controls with
on-screen display
Automatic picture
adjustments
V-Guide (Parental Control)
Sleep Timer (3 hours)
TV Reset
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
CAUTION: FCC Regulations state that improper modifica-
tions or unauthorized changes to this unit may
void the user's authority to operate the unit.

BASIC SETUP

(See Hookup,
on page 4.)
(Install batteries, see page 5.)
Automatic Fine Tuning
VHF and Cable Channels
Remote Control
Large Glow-in-the-Dark
basic operating keys
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
DS13390
MENU
CHANNEL VOLUME POWER
MENU MENU
Please wait
TV is searching
for your channels

SPECIFICATIONS

PICTURE TUBE SIZE (Measured Diagonally)
DS13390 . . . . . . . . . . . . . . 13-inch screen
DS19390 . . . . . . . . . . . . . . 19-inch screen
DS25390 . . . . . . . . . . . . . . 25-inch screen
PICTURE RESOLUTION . . . . . . . . . . . . . . 260 Lines
ANTENNA INPUT . . . . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . . . . . . 120VAC 60Hz
POWER DS13390 . . . . . . . . . . . . . . 53 watts
DS19390 . . . . . . . . . . . . . . 68 watts
DS25390 . . . . . . . . . . . . . . 88 watts
HORIZONTAL DIM. (Width)
DS13390 . . . . . . . . . . . . . . 14.6 in. (372mm)
DS19390 . . . . . . . . . . . . . . 19.2 in. (488mm)
DS25390 . . . . . . . . . . . . . . 24.6 in. (624mm)
VERTICAL DIM. (Height)
DS13390 . . . . . . . . . . . . . . 13.2 in. (335mm)
DS19390 . . . . . . . . . . . . . . 17.8 in. (452mm)
DS25390 . . . . . . . . . . . . . . 22.5 in. (571mm)
DEPTH DIM. (Thickness)
DS13390 . . . . . . . . . . . . . . 14.7 in. (373mm)
DS19390 . . . . . . . . . . . . . . 18.4 in. (467mm)
DS25390 . . . . . . . . . . . . . . 20.1 in. (510mm)
WEIGHT (Approx.)
DS13390 . . . . . . . . . . . . . . 19.2 lbs. (8.7 Kg.)
DS19390 . . . . . . . . . . . . . . 36.3 lbs. (16.5 Kg.)
DS25390 . . . . . . . . . . . . . . 58.8 lbs. (26.7 Kg.)
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Speaker, Size: 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . Built-in with 1W
CHANNEL VOLUME POWER
MENU MENU
(Switch on Power.)
QuickTips
Do not position the
TV in a confined
area. Allow normal
air circulation for
electronic parts.
Front panel keys
work like the remote
control keys.
The TV will automat-
ically select the
correct Antenna
mode for the type of
signal you connect.
Need help?
Visit our website at
www.sanyoctv.com
or
Call 1-800-877-5032
