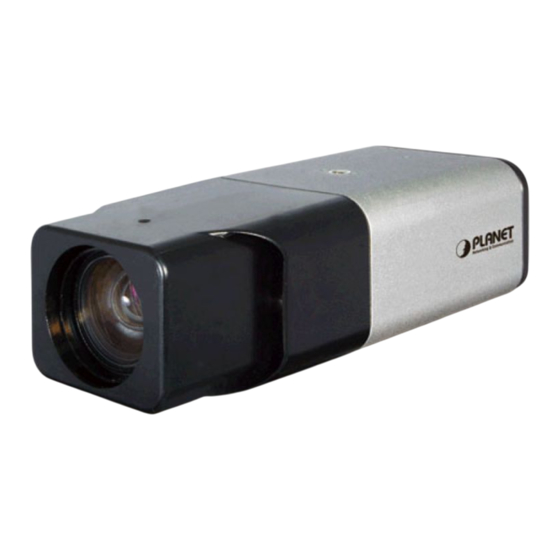

Planet ICA-HM710 Quick Installation Manual

VERIFY THE CONTENTS INSIDE PACKAGE BOX
The package should contain the items plus ICA-HM710 / ICA-HM718. If any item is missing or damaged, please contact the seller immediately.
Quick Installation Guide

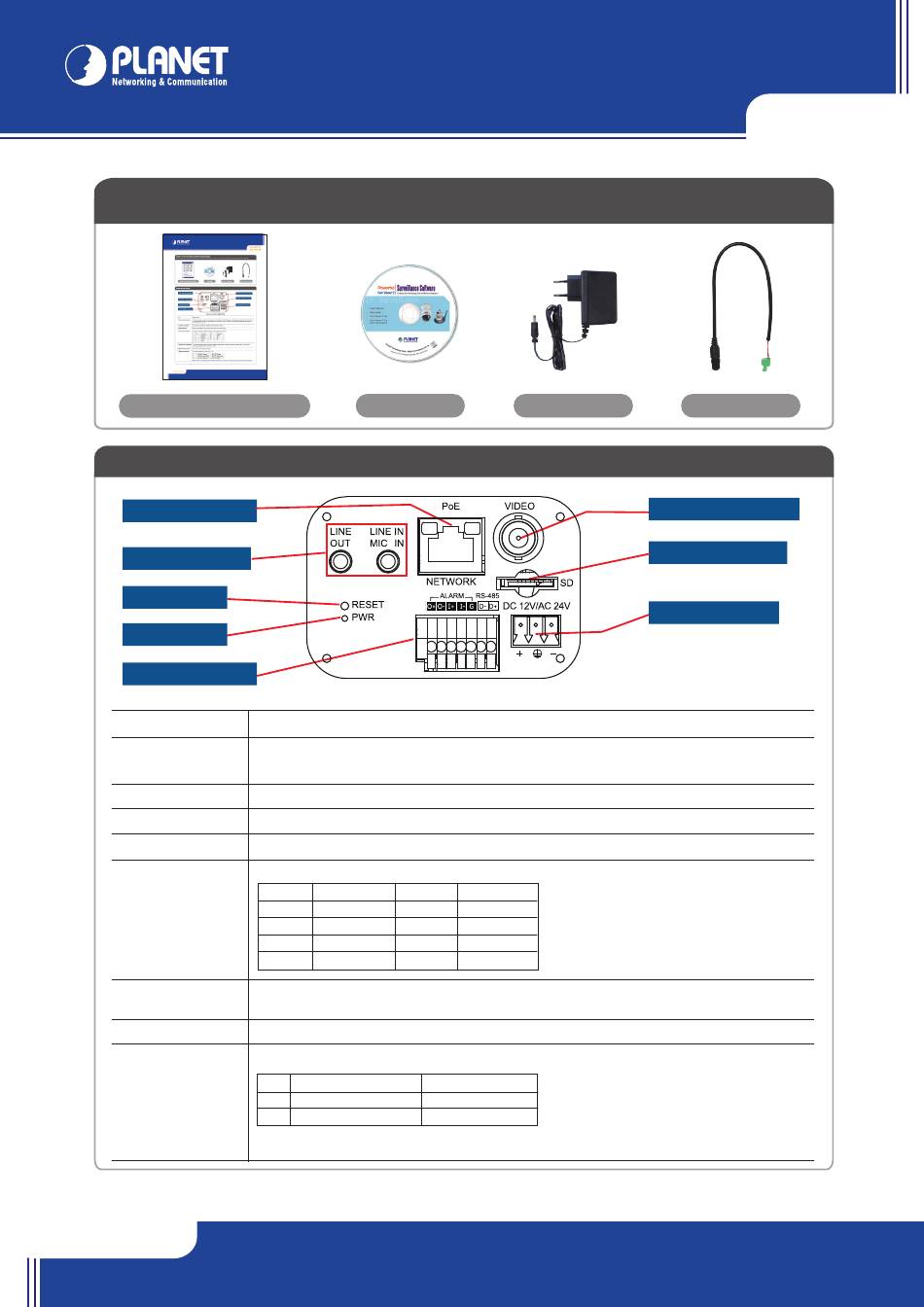

Camera Rear Panel
1. RJ-45 LAN Socket
2. Line In / Line Out
3. Reset Button
4. PWR
5. DI / DO Connector
Item
1. RJ-45 LAN Socket
2. Line In / Line Out
3. Reset Button
4. PWR
5. DI / DO Connector
6. Video Out Connector
7. Mirco SD Card slot
8. Power Connector
Quick Guide
CD-ROM
Rear View of ICA-HM710/718
Description
The LAN socket is a RJ-45 connector for connections to 10/100Base-TX Fast Ethernet cabling. The LAN socket
is compliant with IEEE802.3af standard PoE interface, and IP Camera is necessary supplied power through
PoE Switch/Hub device.
Connect a microphone / speaker to the network camera.
Restore to default setting, press the button with a proper tool.
The power indication, when the power is connected, it will light green.
Connect connects to external sensor in and alarm out devices.
Pin Function Pin
1 Output + 5
2 Output 6
3 Input + 7
4 Input -
The internet camera also provides composite video output. User can use BNC video cable to connect the
Internet camera with a TV monitor or VCR.
For video and snapshots storage.
The input power is AC 24V or DC 12V.
+ AC 24V: Power-1
+ AC 24V: Earth GND
- AC 24V: Power-2
Note：Only use package power adapter supplied with the product or follow the power specification.
Otherwise, the product may be damaged.
Power Adapter
Function
GND
D-
D+
DC 12V: Power
DC 12V: Reserved
DC 12V: GND
ICA-HM710
ICA-HM718
Power Connector
6. Video Out Connector
7. Mirco SD Card slot
8. Power Connector
