ENVIRONMENT

Leave some space
Maintain at least 10cm between the washer and the
wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration occurs. (Allowable slope
is 1 degree)
Never install the washer in a very steamy
environment or where it might be open to
the rain.
Excessive moisture may cause an electrical shock
hazard.
Avoid direct sunlight or heaters.
As plastic and electrical components are affected by
direct heat,never place the washer near furnaces,
boilers,etc. Do not place under direct sunlight.

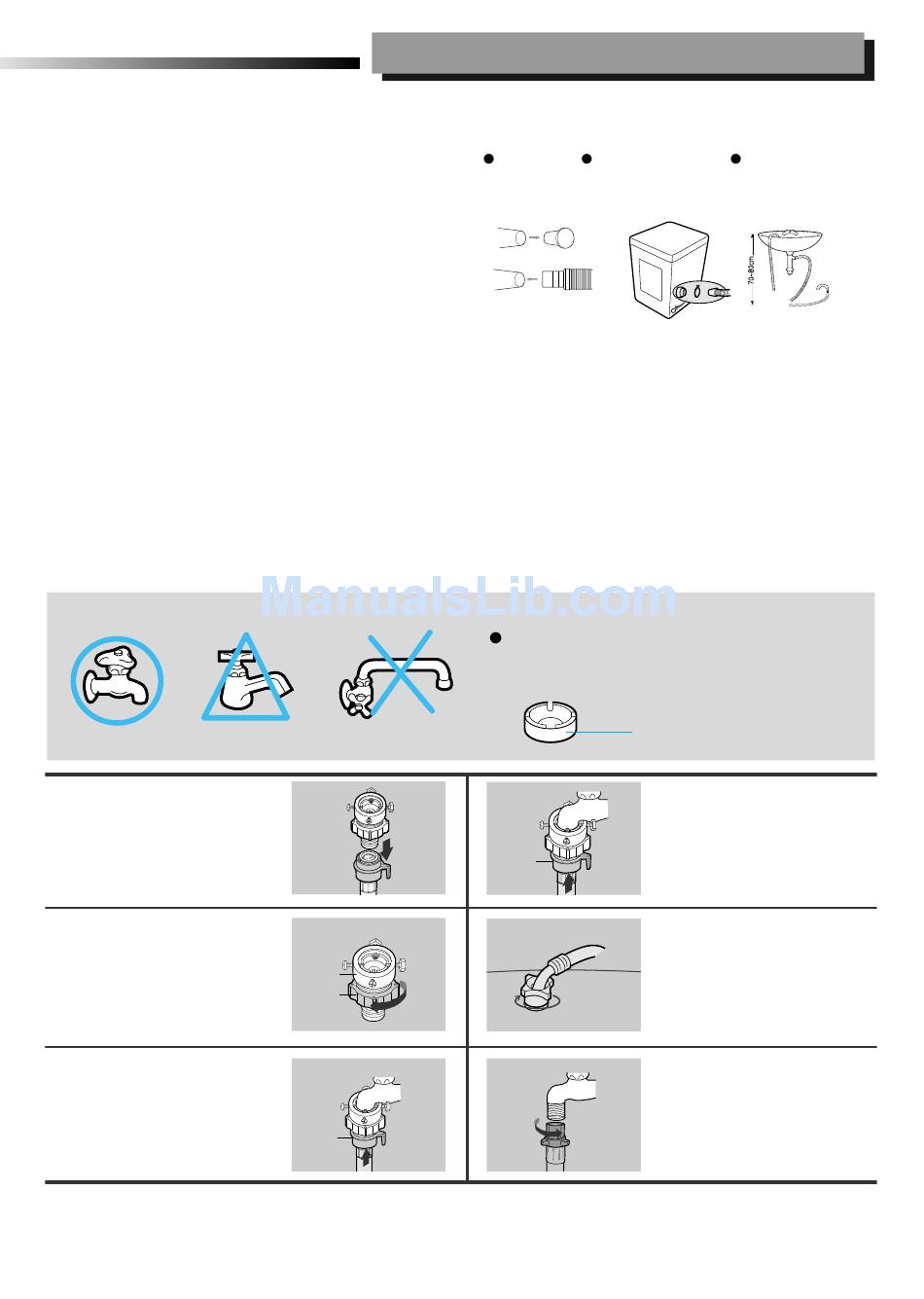

HOW TO CONNECT WATER SUPPLY HOSE

Check the type of tap fitting which is in your laundry and then see appropriate instruction below:
A tap of ordinary type is desirable
ORDINARY TAP SQUARE TAP
1. Remove the adaptor from the
water supply hose.
2. First,using a "+" type screw
driver, loosen the four screws
on the adaptor. Next,take the
adaptor and turn part(b)
following the arrow for gap
about 5mm between them.
3. Connect adaptor to the water
tap by tightening the screws
firmly.
Then,turn part (b) following the
arrow and put (a) and (b)
together.
Note : The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not
be used.
INSTALLATION & MAINTENANCE

IN CASE OF PUMP-DRAINED WASHER

Take out the
cap-hose and
connect the
outlet-hose.
In case of square tap
ROTATING TAP
a
b
c
4
Be sure to join tightly
the drain hose into the
drain-outlet on the left
side of the machine.
cap-hose
outlet-hose
Take out the internal part of the connector
and join it in the following way.
Internal part
4. Connect the water supply hose
to the adaptor. Pull down the
part (c) of the water supply
hose. When you release part (c)
the hose is automatically
c
connects to the adaptor making
a 'click' sound.
5. Connect the other end of the
water supply hose to the inlet
water valve at the top of the
washer.
Screw the hose clockwise all
the way in.
6. If the water tap is a screw
type,assemble a water supply
hose that fits to the tap as
shown.
Install the drain
hose in the position
of about 70~80cm
above the ground.
