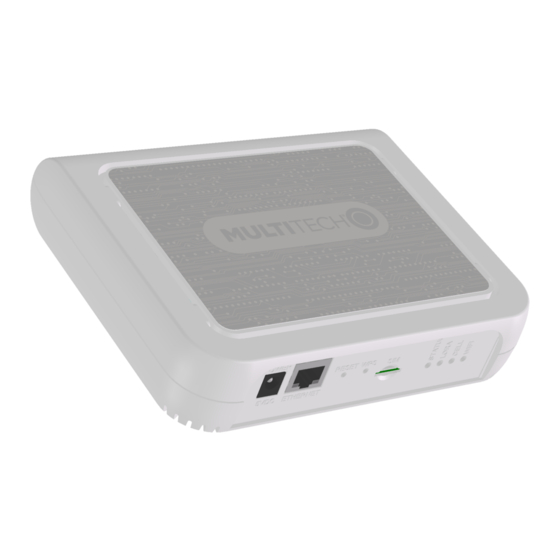

- Page 1 ® MultiConnect Conduit MTCAP User Guide for Europe...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
LoRa Transmission Output Power..........................10 868 Models ................................10 Connectors and LEDs ..............................11 Resetting the Device ..............................12 Power Measurements..............................12 MTCAP-LEU1-868-001L ............................. 12 MTCAP-868-001L ..............................13 Chapter 3 – Safety Information ..........................14 Power Supply Caution ..............................14 Ethernet Ports ................................14 Ports Ethernet ................................ - Page 4 CONTENTS Removing a SIM Card..............................19 Cabling the Device............................... 19 Chapter 6 – Getting Started with mLinux Models....................21 Accessing the Terminal Interface..........................21 Setting Time Zone, Time, and Date..........................21 Setting the Custom IP Address, Network Information, and Ethernet Internet Access ..........23 Configuring the Cellular Connection ...........................
-
Page 5: Chapter 1 - Product Overview
1 – RJ45 Ethernet cable 1 – Quick Start Important: Contact MultiTech Systems if a replacement power supply is needed. Using a different power supply may damage the device and voids the warranty. Documentation Overview The following documents are available at http://www.multitech.com/brands/multiconnect-conduit-ap. -
Page 6: Related Documentation
Related Documentation This manual provides the basics for getting started with mLinux or AEP. For addition information, visit our developer site at http://multitech.net and select Software > mLinux. ® MultiConnect Conduit AP MTCAP User Guide for Europe... -
Page 7: Chapter 2 - Specifications And Hardware Information
SPECIFICATIONS AND HARDWARE INFORMATION Chapter 2 – Specifications and Hardware Information Dimensions ® MultiConnect Conduit AP MTCAP User Guide for Europe... -
Page 8: Mtcap Specifications
SPECIFICATIONS AND HARDWARE INFORMATION MTCAP Specifications Category Description General Standards LoRaWAN 1.0.2 specifications LTE 3GPP Release 9 (-LEU1 models only) HSPA+ with GPRS fallback (-LEU1 models only) 256MB Flash 256MB Radio Frequency ISM Band 868 MHz ISM band for Europe 4G/LTE 800 (B20) / 1800(B3) /2600 (B7) (-LEU1 models only) 850 (B5)/ 900 (B8) / 2100 (B1) (-LEU1 models only) -
Page 9: Le910 Telit Transmission Output Power
SPECIFICATIONS AND HARDWARE INFORMATION LE910 Telit Transmission Output Power Band Power Class GSM 850/900 MHz 4 (2W) DCS 1800, PCS 1900 MHz 1 (1W) EDGE, 850/900 MHz E2 (0.5W) EDGE, 1800/1900 MHz Class E2 (0.4W) WCDMA/FDD 800/850/900, 1900/2100 MHz Class 3 (0.25W) LTE FDD 700/800/850/900, 1800/1900/2100/2600 Class 3 (0.2W) ®... -
Page 10: Lora Transmission Output Power
SPECIFICATIONS AND HARDWARE INFORMATION LoRa Transmission Output Power 868 Models Max output 25 dBm Power Frequency On Power-up (dBm) 18 Hours After Bandwidth Power-up (dBm) 869.525 MHz 24.18 125 kHz 869.525 MHz 24.18 24.83 250 kHz ® MultiConnect Conduit AP MTCAP User Guide for Europe... -
Page 11: Connectors And Leds
SPECIFICATIONS AND HARDWARE INFORMATION Connectors and LEDs Note: Some features are available only on select models. The above image shows the model with all features. For models that don't have a cellular radio, the chassis will not have a SIM slot. Item Description Connectors... -
Page 12: Resetting The Device
User Accounts for more details on username and password requirements.) Note: The device reboots when restoring settings. Power Measurements MTCAP-LEU1-868-001L Note: Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load. Maximum Power: The continuous current during maximum data rate with the radio transmitter at maximum power. -
Page 13: Mtcap-868-001L
SPECIFICATIONS AND HARDWARE INFORMATION MTCAP-868-001L Note: Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load. Maximum Power: MTCAP LoRa connection to MTXDOT running TXP =20 and at+txdr=2. The MTXDOT was initialized to send packets by joining MTCAP and rapidly sending packet to the MTCAP. Tx Pulse: The average peak current. -
Page 14: Chapter 3 - Safety Information
This battery has an estimated life expectancy of ten years. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 15: Handling Precautions
SAFETY INFORMATION Attention: Maintenir une distance d'au moins 20 cm (8 po) entre l'antenne du récepteur et le corps de l'utilisateur ou à proximité de personnes. Le modem n'est pas conçu pour, ou destinés à être utilisés dans les applications portables, moins de 20 cm du corps de l'utilisateur. Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. -
Page 16: Interference With Pacemakers And Other Medical Devices
SAFETY INFORMATION Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). -
Page 17: Ul Notice
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 18: Chapter 4 - Labels
(2) this device must accept any interference received, including interference that may cause undesired operation. The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - IMEI Number 4 - Device Node Number 5 - UUID Example 868 Models Package Label ®... -
Page 19: Chapter 5 - Setting Up Hardware
SETTING UP HARDWARE Chapter 5 – Setting Up Hardware Installing a SIM Card If you have a cellular device with a SIM slot, you'll need a micro SIM card from your network provider. To install the SIM card: With the contact side facing down, align the notched edge as shown on the following image and slide the SIM card completely into the SIM holder. - Page 20 SETTING UP HARDWARE For models ending with -001A, go to Getting Started with AEP ® MultiConnect Conduit AP MTCAP User Guide for Europe...
-
Page 21: Chapter 6 - Getting Started With Mlinux Models
GETTING STARTED WITH MLINUX MODELS Chapter 6 – Getting Started with mLinux Models Accessing the Terminal Interface After connecting Ethernet and power, access the terminal interface: On your PC, configure a static IP address for the network interface that is connected to the device within the following range: 192.168.2.2 - 192.168.2.254 Open an SSH connection. - Page 22 GETTING STARTED WITH MLINUX MODELS date "2016-12-11 14:58:01" Update the hardware clock: hwclock -u -w ® MultiConnect Conduit AP MTCAP User Guide for Europe...
-
Page 23: Setting The Custom Ip Address, Network Information, And Ethernet Internet Access
GETTING STARTED WITH MLINUX MODELS Setting the Custom IP Address, Network Information, and Ethernet Internet Access Network configuration is defined in /etc/network/interfaces. To change the static IP, change the address and netmask fields in /etc/network/interfaces, (use vi or nano). To apply changes, either reboot the device or issue: ifdown eth0 &&... -
Page 24: Starting Cellular Connection On Boot
GETTING STARTED WITH MLINUX MODELS $ route Kernel IP routing table Destination Gateway Genmask Flags Metri Iface default 33.140.12.1 0.0.0.0 ppp0 33.140.12.1 255.255.255.25 ppp0 192.168.2.0 * 255.255.255.0 ethp0 The Linux ifconfig utility can be used to inspect the ppp0 interface details. $ ifconfig ppp0 ppp0 Link encap:Point-to-Point Protocol... -
Page 25: Configuring The Lora Network Server
Additional LoRa and mLinux Information For additional information, including how to configure LoRa devices to communicate with the MTCAP, visit http://www.multitech.net. For help using LoRa, go to: http://www.multitech.net/developer/software/lora/ For help using mLinux, go to: http://www.multitech.net/developer/software/mlinux/. ® MultiConnect Conduit AP MTCAP User Guide for Europe... - Page 26 GETTING STARTED WITH MLINUX MODELS For additional information regarding configuration, go to:http://www.multitech.net/developer/software/lora/getting-started-with-lora-conduit-mlinux/ For additional packet forwarder information, go to: http://www.multitech.net/developer/software/lora/conduit-mlinux-convert-to-basic-packet-forwarder/ ® MultiConnect Conduit AP MTCAP User Guide for Europe...
-
Page 27: Chapter 7 - Getting Started With Aep Models
GETTING STARTED WITH AEP MODELS Chapter 7 – Getting Started with AEP Models Logging in to AEP After connecting and powering up your device, log in to AEP: Open an Internet browser. In the browser’s address field, enter the device's default address for the device: http://192.168.2.1 The login page appears. -
Page 28: Setting Up Ppp Authentication
GETTING STARTED WITH AEP MODELS To enable dial-on-demand, check Dial-on-Demand. This tells the device to only make a PPP connection when there is outgoing IP traffic, and it brings the PPP connection down after a given idle timeout. The default Idle timeout is 180 seconds. If desired, you can enter a different value. Type the APN (Access Point Name). -
Page 29: Finishing Configuration
Getting Started with LoRa Using DeviceHQ for Device Management DeviceHQ is a cloud-based device management tool for remote monitoring, upgrades, and configuration AEP devices. For information on creating and using a DeviceHQ account, go to the http://www.multitech.net/developer/software/devicehq/. ® MultiConnect Conduit... -
Page 30: Chapter 8 - Mounting The Device
MOUNTING THE DEVICE Chapter 8 – Mounting the Device Mounting the Device The device ships with a mounting bracket. You will need Mounting bracket MTCAP Four #6 screws, with anchors (not provided) Screwdriver Drill Mounting Bracket Determining Location for the MTCAP Select a location that is central to all the devices you want to connect to this MTCAP. -
Page 31: Mounting The Mtcap
MOUNTING THE DEVICE Mounting the MTCAP Determine where you want to mount the device. Mark where you want the screws to go. Drill holes for the screws and insert anchors. ® MultiConnect Conduit AP MTCAP User Guide for Europe... - Page 32 MOUNTING THE DEVICE Place the mounting bracket and secure it with screws. Attach the device to the bracket and rotate to lock into place. ® MultiConnect Conduit AP MTCAP User Guide for Europe...
-
Page 33: Chapter 9 - Regulatory And Environmental
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 34: Reach Statement
2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... - Page 35 REGULATORY AND ENVIRONMENTAL Lead usage in some components is exempted by the following RoHS annex, therefore higher lead concentration would be found in some modules (>1000 PPM); - Resistors containing lead in a glass or ceramic matrix compound. ® MultiConnect Conduit AP MTCAP User Guide for Europe...
-
Page 36: Index
INDEX Index default..............27 LoRa build options ..............5 setup ................25 LORA LED...............11 CELL LED ................11 cellular configuration ............23 maintenance ..............16 cellular connection on startup ........24 mLinux................21 certifications..............8 modem configuration............28 29 safety ...............14 connectors ..............11 mounting device ............30 date ................21 27 network information.............28 device network settings ............23 maintenance ............16... - Page 37 INDEX SIM installation .............19 transmission ..............8 specifications..............8 static................15 STATUS LED ..............11 sécurité................14 user responsibility............17 interférences RF............15 WIFI LED ................11 terminal interface ............21 time ................21 27 ® MultiConnect Conduit AP MTCAP User Guide for Europe...
