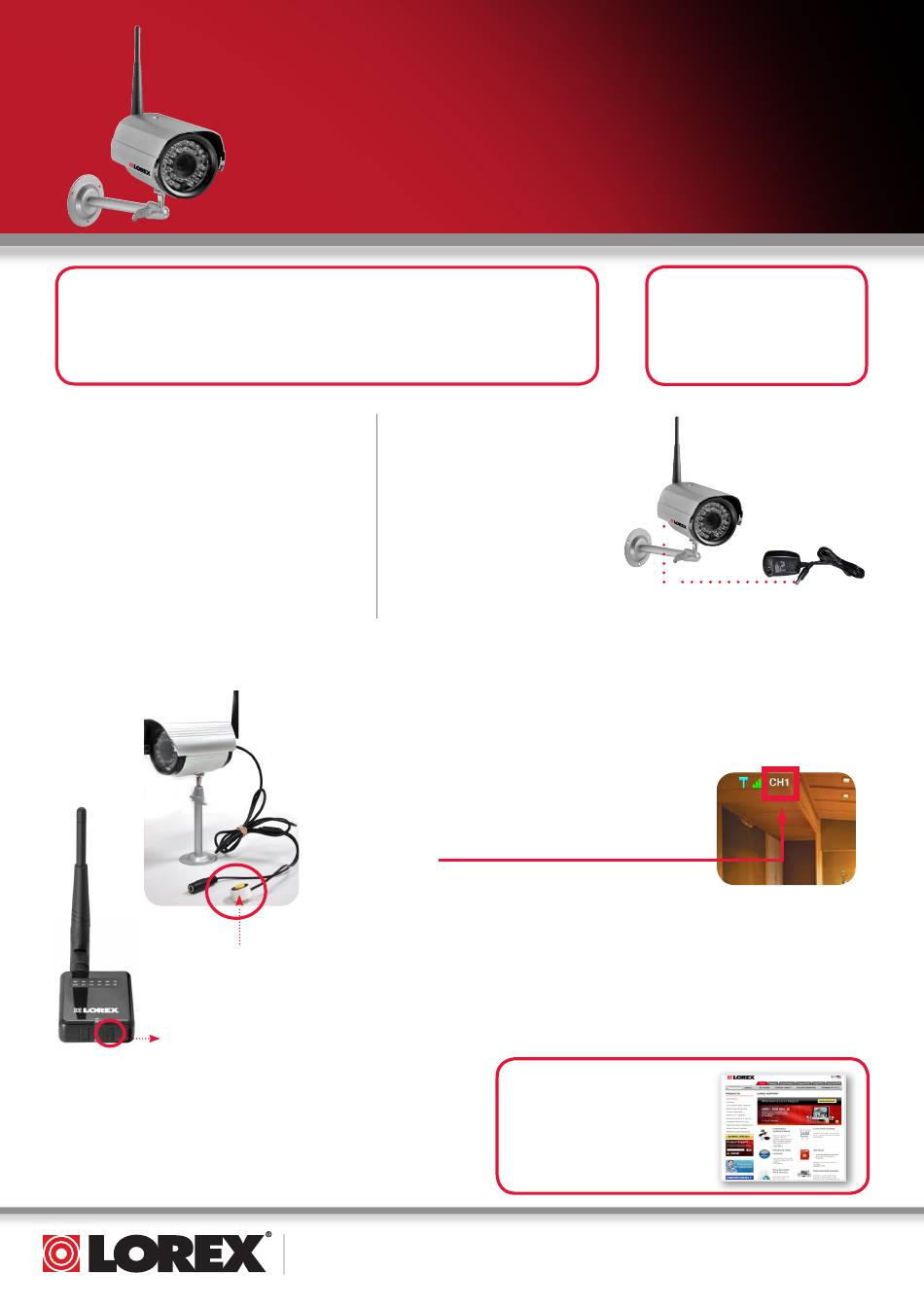

Lorex LW2202C Quick Setup Manual

ATTENTION!
To activate the 2nd wireless camera with this system,
please follow these steps.
STEP 1
Setup the receiver and 1st camera included
in the LW2201 product box (2nd camera is
included in separate white box) as per the
instructions in the Quick Start Guide included
in the LW2201 product box. A successful
setup means that you can now view the 1st
camera on your TV or monitor.
Once completed, proceed to Step 2.
STEP 3
Pair Button
Pair Button
NOTE: Pair the 2nd camera to the Receiver before
permanently mounting the camera. For detailed
information, please check the owners manual for the
LW2201 system available at www.lorexcctv.com
To order additional cameras,
please visit www.lorexcctv.com
COLOR DIGITAL WIRELESS 2 CAMERA SYSTEM
LW2202C - quICk SETuP GuIDE
STEP 2
CONNECTING CAMERA
POWER ADAPTOR
Connect one end of the
camera Power Adaptor to the
camera and the other end to
an electrical outlet.
The Pairing Function assigns each camera to a different channel on the wire-
less receiver (connect up to 4 Cameras), and is necessary for configuring
additional cameras. By default the camera included in the same box as the
receiver is assigned to channel 1 which leaves channels 2,3 or 4 for the 2nd
camera.
1. Press the Pair button repeatedly on the Wireless
Receiver to select an empty channel (channel 2,3 or 4).
The channel number is indicated in the top left corner
of the screen.
2. Press and hold the Pair button for 5 seconds to
activate pairing function. A message appears on screen which
informs you that you have 30 seconds to press the pair button on the camera.
3. Press and hold the Yellow Pair button extending from the 2nd camera. You
must press the Yellow Pair button from the camera within 30 seconds of
pressing the Pair button on the Wireless Receiver. If pairing is successful,
live video from the camera will immediately appear on your TV/monitor.
NOTE: If you have not managed to press the pair button within 30 seconds,
please repeat Step 3.
www.lorexcctv.com
NOTE: AVOID INSTALLING IN A
LOCATION WHICH REQUIRES
THE WIRELESS SIGNAL TO PASS
THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS
Connect power adaptor to local
120V AC power outlet
It's all on the Web
For detailed setup information,
please refer to your User's Manual.
For additional information, please
visit our website
www.lorexcctv.com/support
LW2202C QSG_EN_SP_R1 Page 1
WILL REDUCE THE
TRANSMISSION RANGE.
