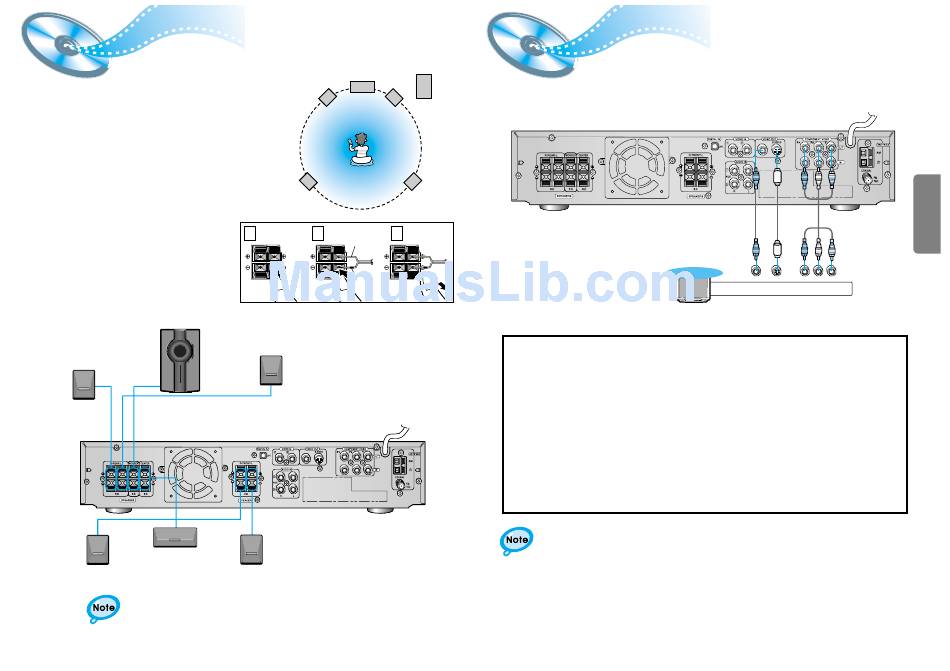

Connecting the Speakers

• Connect the satellite speakers, center speaker, and
subwoofer to the terminals on the rear panel using speaker
cords supplied.
• Connect the red cord to the red (+) terminal and the black
cord to the black (-) terminal.
1
Press and hold the terminal tab.
2
Insert the speaker cord.
3
Release your finger.
Subwoofer
Right rear speaker
Center speaker
Right front speaker
•
For details on the "Ideal Speaker Placement" see page 34.
9
Center
Left front Right front
Left rear Right rear
1 2 3
Red
Black
Left rear speaker
Left front speaker

Connect Video to TV

Subwoofer
*
Depending on your TV, Component Video input connectors may be marked as DVD Video input connectors.
Composite Video (Good Quality)
Connect the supplied video cable from the VIDEO OUT jack on the back panel of the
system to the VIDEO IN jack on your television.
S-Video (Better Quality)
If you television is equipped with an S-Video input, connect an S-Video cable (not supplied)
from the S-VIDEO OUT jack on the back panel of the system to the S-VIDEO IN jack on
your television.
Component Video (Best Quality)
If your television is equipped with Component Video inputs, connect a component video
cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the
corresponding jacks on your television.
•
When the Progressive scan mode is selected, the VIDEO and S-VIDEO outputs do not feed
any signals. See page 16 to select Progressive Scan.
TV
Component
Composite S-Video
Video Video
