2.4.17

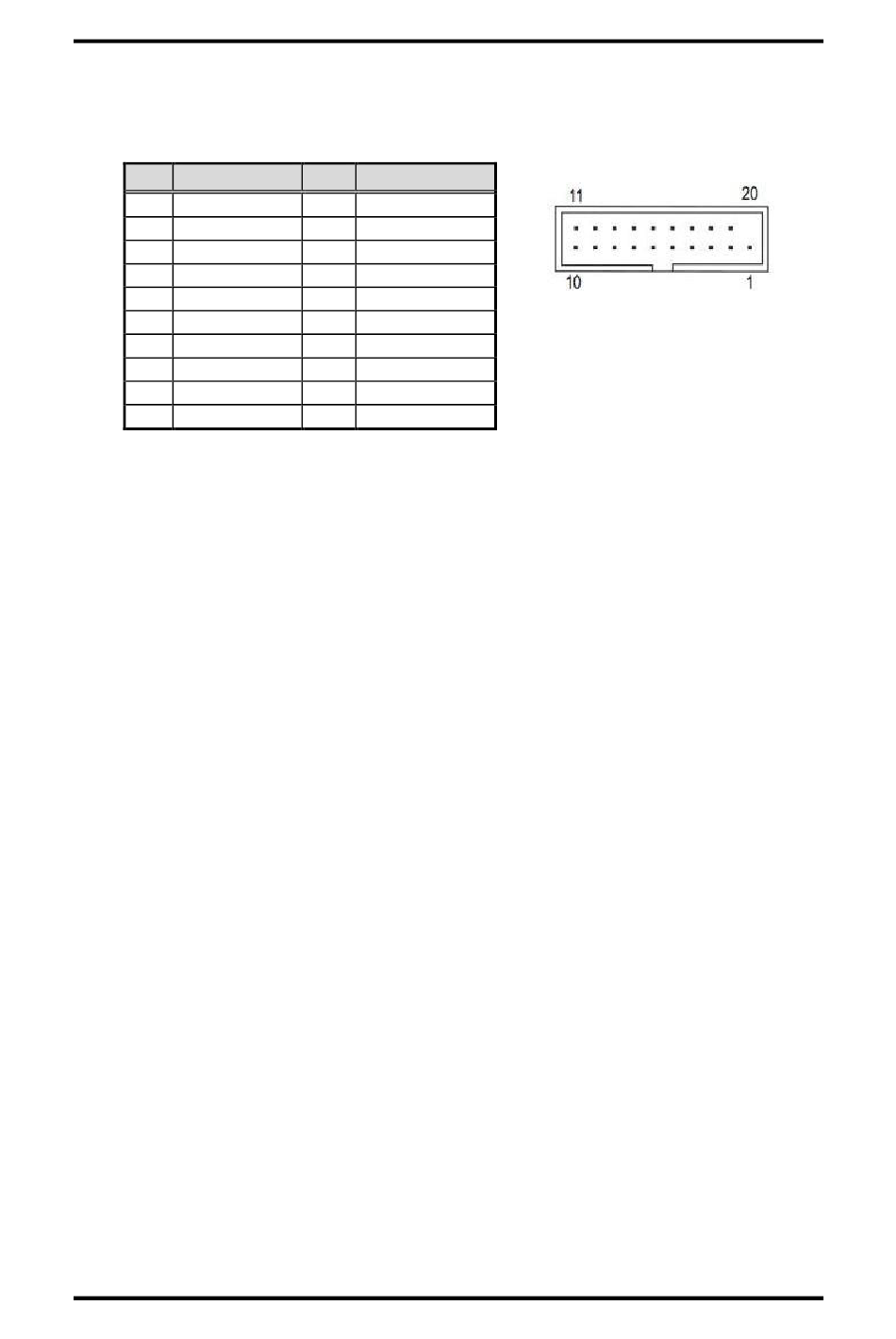

Internal USB 3.0 Connector (CN47)

The CN47 is a 19-pin internal connector for installing versatile USB 3.0 compliant
peripherals.
Pin Signal
1 VBUS0
2 SSRX3-
3 SSRX3+
4 GND
5 SSTX3-
6 SSTX3+
7 GND
8 USB6-
9 USB6+
10 ID
Board and Pin Assignments
Pin Signal
19 VBUS1
18 SSRX4-
17 SSRX4+
16 GND
15 SSTX4-
14 SSTX4+
13 GND
12 USB7-
11 USB7+
IMB502 LGA1151 ATX Motherboard
21
