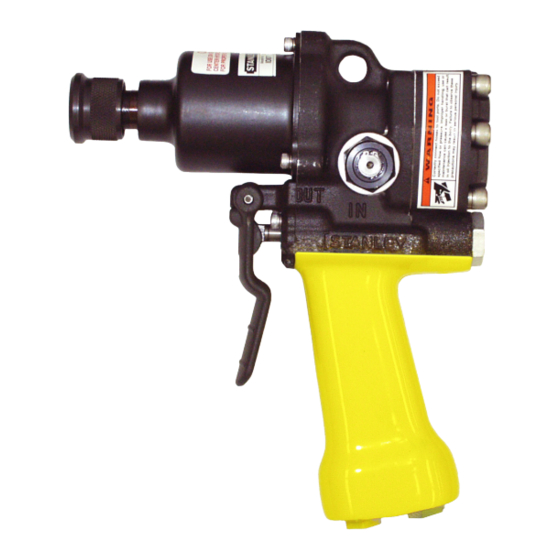

Stanley ID07 User Manual
Hydraulic impact drill
Hide thumbs
Also See for ID07:
- Service manual (24 pages) ,
- User manual (20 pages) ,
- Safety, operation & maintenance (16 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Service Manual
Advertisement
Table of Contents
Related Manuals for Stanley ID07
Summary of Contents for Stanley ID07
- Page 1 ID07 HYDRAULIC IMPACT DRILL USER MANUAL Safety, Operation and Maintenance © 2012 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 49228 9/2018 Ver. 23...
- Page 2 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. ID07 User Manual ◄ 3... -
Page 4: Safety Symbols
Place the added precautions in the space provided in this manual. The model ID07 Hydraulic Impact Drill will provide safe and dependable service if operated in accordance with the instructions given in this manual. Read and understand this manual and any stickers and tags attached to the tool and hose before operation. -
Page 5: Safety Precautions
Do not use in confined spaces and beware of • Inspect the tool before each use and ensure all de- crushing hands between the tool and the workpiece, cals are legible. Contact STANLEY if replacements especially when unscrewing. are needed. •... - Page 6 Follow correct safety procedures and comply with all applicable national, state or provisional health and safety regulations relating to them, including, if appropriate arranging for the safe disposal of the materials by a qualified person. 6 ► ID07 User Manual...
-
Page 7: Tool Stickers & Tags
SEE OTHER SIDE SEE OTHER SIDE tag before removal. We suggest you retain this tag and attach it to the tool when not in use. SAFETY TAG P/N 15875 (Shown smaller then actual size) ID07 User Manual ◄ 7... -
Page 8: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 9: Hose Recommendations
HOSE RECOMMENDATIONS ID07 User Manual ◄ 9... -
Page 10: Htma / Ehtma Requirements
2000 psi 2000 psi (At the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) Note: These are general hydraulic system requirements. See tool specifi cation page for tool specifi c requirements. 10 ► ID07 User Manual... -
Page 11: Operation
BOLT GRADE AND THREAD RECOMMENDATIONS Allowable bolt torque is limited by both bolt thread diameter and grade of steel in the bolt. The ID07 Impact Wrench is recommended for use on the following bolt grade and thread sizes:... - Page 12 Whenever possible, connect the free ends of hoses together. WRENCH OPERATION The ID07 is designed for 1/2-inch square or 7/16-inch hex drive. During normal operation it is common to see some grease leakage from around the anvil during hard use. Refer to the Service Manual for the correct lubrication procedures.
- Page 13 OPERATION or right. See item 75 in the “ID07 Parts Illustration” on page 19. Note: To more accurately tighten bolts, lubricate threads, check with a torque wrench and duplicate time of impacting for other bolts of the same length and thread size.
- Page 14 3. Dip or spray the entire tool. 4. Cycle the tool hydraulically several times before storing away. 5. Clean the impact mechanism and grease with waterproof grease. See “Impact Mechanism Maintenance” on page 15 Figure 5 - Underwater Maintenance 14 ► ID07 User Manual...
-
Page 15: Tool Protection & Care
Always replace hoses, couplings and other parts IMPACT MECHANISM MAINTENANCE If your ID07 shows or starts to show signs of reduced or low pow- er, it could be a result of lack of grease in the impact mechanism. To correct this do the following:... - Page 16 Too much fluid going through tool. Adjust flow for 4–12 GPM/15–45 LPM maximum. Circuit has contaminants that Replace worn pump and valves. have caused wear and high heat Install a large clean filter and keep generation. circuit fluid clean. 16 ► ID07 User Manual...
-
Page 17: Specifications
Note: The sum of a measured noise emission value and its associated uncertainty represents an upper boundary of the range of values which is likely to occur in measurements. Declared vibration emission value: A 8.5 m/sec Uncertainty: K 1.74 m/sec Values determined according to EN ISO 28927-2 ID07 User Manual ◄ 17... -
Page 18: Accessories
15/16 inch Double Square 8 Point Deep Length ....................05115 1 inch Double Square 8 Point Deep Length ...................... 05116 Lineman’s Socket, 13/16 inch and 15/16 inch ....................33155 Lineman’s Socket, 1 inch and 1-1/8 inch ......................33156 18 ► ID07 User Manual... -
Page 19: Id07 Parts Illustration
ID07 PARTS ILLUSTRATION ASSIST HANDLE P/N-73636 (pictured on page 15) is available as an accessory (Clamps onto the impact mechanism for increased stability) ITEM # 87 ITEM # 88 ITEM # 89 ITEM # 90 ID07 User Manual ◄ 19... -
Page 20: Id07 Parts List
NO ITEM 03972 FEMALE COUPLER (PARKER) 49139 SEAL WIPER 81158 FEMALE COUPLER (STUCCHI) RELIEF CARTRIDGE ASSY 03973 MALE COUPLER (PARKER) 56721 (INCL ITEMS 7, 13) 81159 MALE COUPLER (STUCCHI) RAILROAD HELP DESK STICKER 73680 (ID07810S ONLY) 20 ► ID07 User Manual... - Page 21 32149 (ID07820, ID0782001) IMPACT MECHANISM ASSY U/W (1/2 32284 SQUARE) (ID07920, ID0792001 ONLY) IMPACT MECHANISM ASSY (1/2 SQUARE 67637 FRICTION RING) (ID07830, ID07830K) STICKER, CLOSED-CENTER (SHIPPED 03693 LOOSE WITH ID07810, ID07820 ONLY) 60791 SEAL KIT ID07 User Manual ◄ 21...
-
Page 22: Underwater Tools Depth Guideline
ROV operation 3/4” 1” is still limited to the tool, for example a 1” 1” percussive tool has the same depth limitation 1000 1” 1-1/4” whether ROV or diver operated. 22 ► ID07 User Manual... - Page 24 STANLEY Infrastructure 6430 SE Lake Road Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
