Interlogix TVP-CWM Installation Instructions

TVP-CWM Compact PTZ Indoor Wall Mount

Installation Instructions

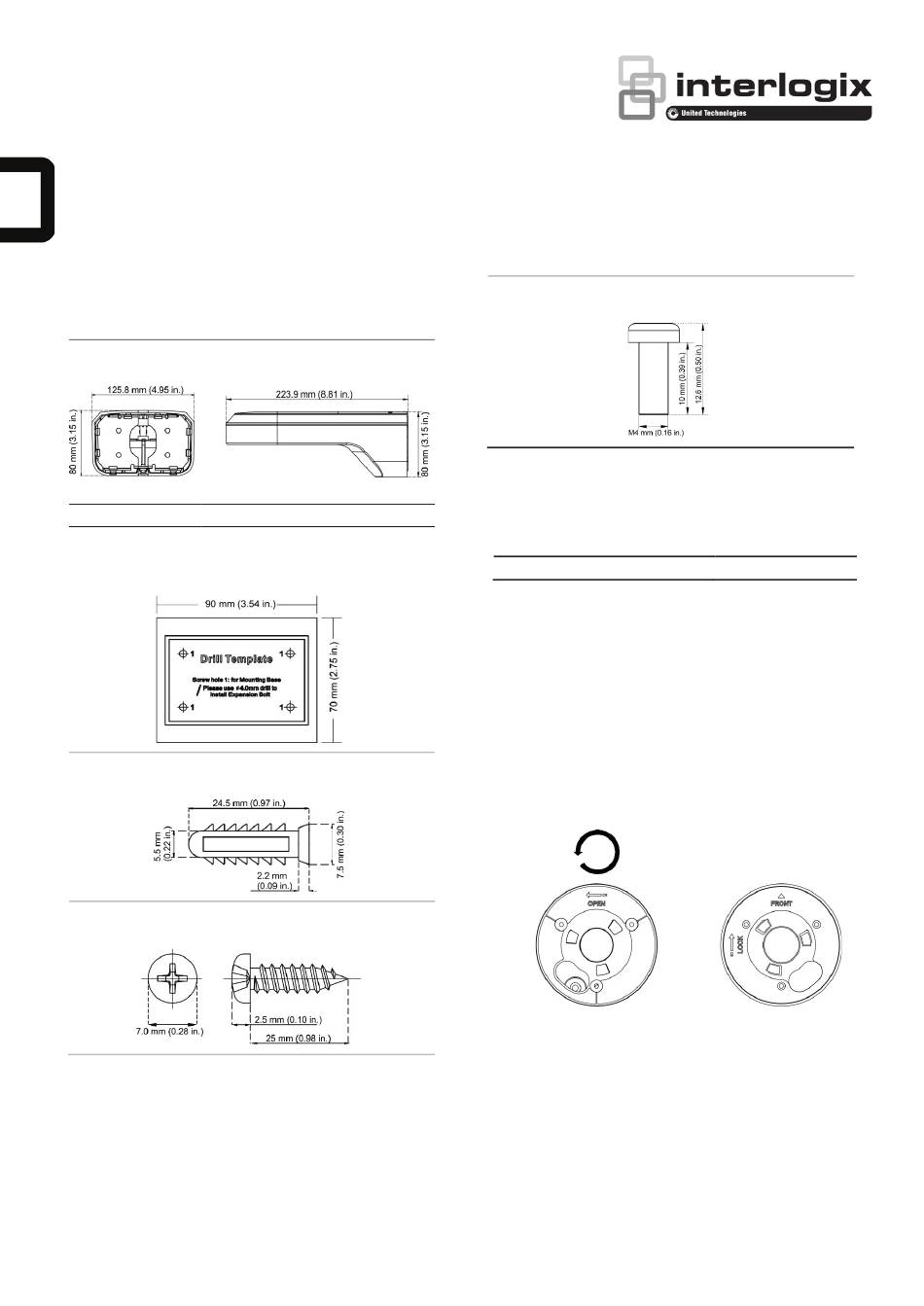

Dimensions
Dimensions: 125.8 × 80 × 223.9 mm (4.95 × 3.15 ×
8.81 in.)
Weight: 450 g (0.99 lbs.)
Accessories:
Drill template: 1 pcs
Used to drill mounting holes.
Drywall anchors: 4 pcs
Used to install the indoor wall mount to the mounting surface.
Screw A: 4 pcs
Used to install the indoor wall mount to the mounting surface.
© 2018 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation.
Screw B: 3 pcs
Used to install the mounting plate to the indoor wall mount.
Supported cameras
The compact PTZ indoor plastic wall mount can be used with
following cameras:
IP Compact PTZ Camera:
Installation
To install the TVP-5101 PTZ camera on a mounting surface
using the TVP-CWM:
1. Remove the wall mount mounting plate from the mount by
loosening the screw that locks the mount in place, located
towards the back of the wall mount. Pull the mounting
plate away from the mount. It is held in place by two metal
clips and dimples.
2. Rotate the adapter plate counterclockwise to separate it
from the PTZ camera.
Open
View of adapter plate when
mounted to the PTZ
3. Keep in mind that the PTZ pan range is 350 degrees.
Align the cable access hole in the adapter plate with the
access hole in the wall mount. Install the adapter plate to
the wall mount using screw B.
P/N 1073438-EN • REV B • ISS 15MAY18
TVP-5101
View of the adapter plate that
goes towards the PTZ
