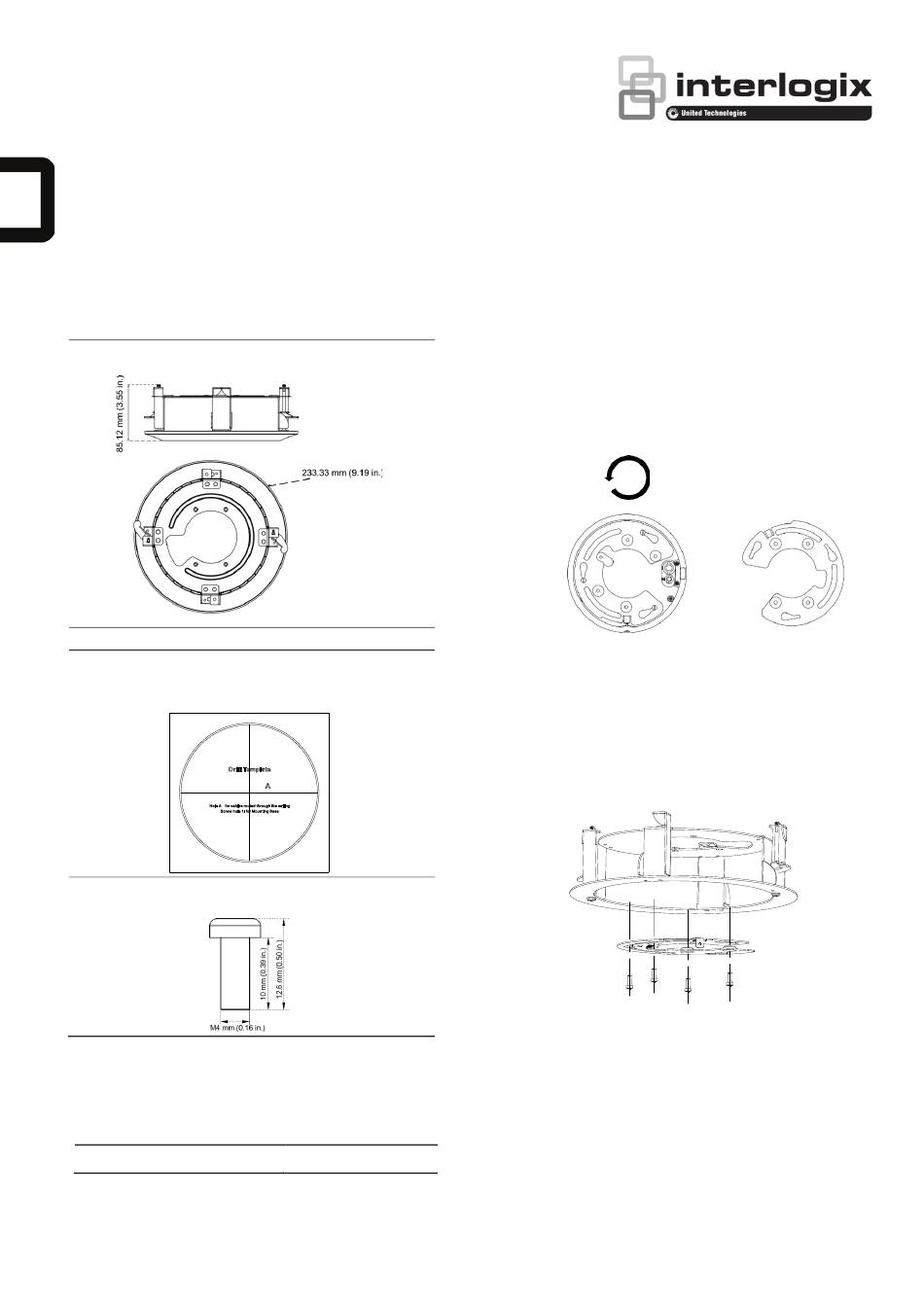

Interlogix TVP-CFM Installation Instructions

TVP-CFM Compact PTZ Flush Mount Installation
Instructions

Specifications

Dimensions: 233.33 × 85.12 mm (9.19 × 3.35 in.)
Weight:
Accessories:
Drill template: 1 pcs
Used to cut the hole for the flush mount.
Screw A: 4 pcs
Used to install the mounting plate to the flush mount.
Supported cameras
The compact PTZ flush mount can be used with following
cameras:
IP Compact PTZ Camera:
© 2018 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation.
640 g (1.4 lbs.)
TVP-5103
Installation
To install the TVP-5103 PTZ camera recessed in a ceiling
using the TVP-CFM:
1. Using the supplied Torx wrench, loosen the Torx screw at
the base of the PTZ. Loosen slightly the three screws on
the base of the PTZ and rotate the metal adapter plate
counterclockwise to separate it from the PTZ camera.
Open
2. Cut a hole in the mounting surface using the supplied
template.
3. Align the cable access hole in the mounting plate with the
cable access in the flush mount. Install the mounting plate
to the flush mount with the A screw. Tighten screw A fully.
Otherwise, the dome will not slide properly into place over
the three standoffs, and the screw head will block the
rotation
4. Route the cables through the flush mount.
5. Align the PTZ camera with the mounting plate. Rotate the
PTZ camera clockwise into the mounting plate to lock the
assembly in place. Making sure that the locking Torx
screw is lined up with the metal tab on the metal adapter
plate.
6. Tighten the Torx screw with the Torx wrench that is
provided with the PTZ.
P/N 1073437-EN • REV B • ISS 15MAY18
