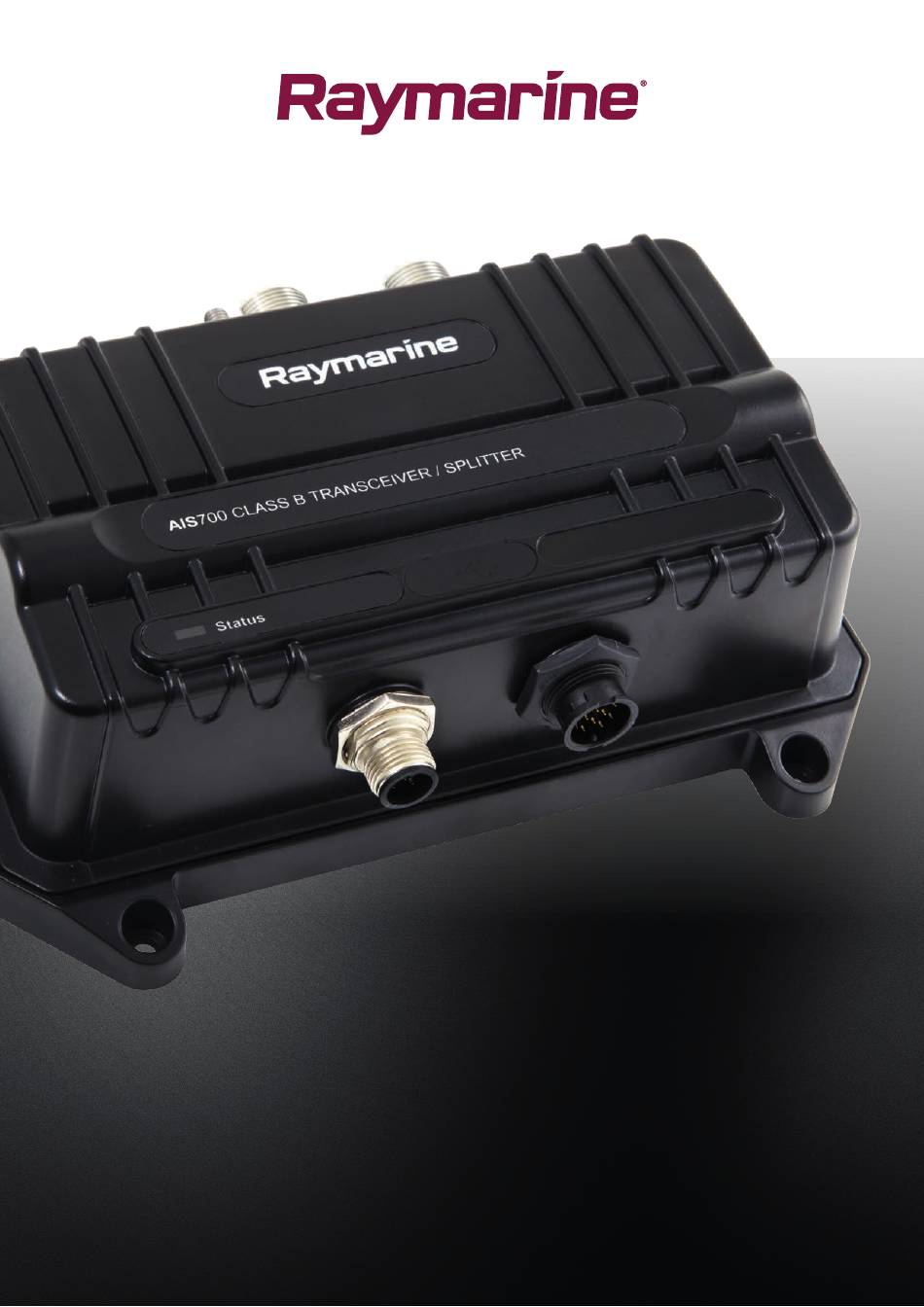

Raymarine AIS700 Installation Instructions Manual
Class b transceivers and splitter
Hide thumbs
Also See for AIS700:
- Installation instructions manual (52 pages) ,
- Installation instructions manual (70 pages) ,
- Quick start manual (2 pages)
Related Manuals for Raymarine AIS700
Summary of Contents for Raymarine AIS700
- Page 1 AIS700 Installation instructions English (en-US) Date: 10-2017 Document number: 87326-1 © 2017 Raymarine UK Limited...
- Page 3 Software updates Check the Raymarine® website for the latest software releases for your product. www.raymarine.com/software Product documentation The latest versions of all English and translated documents are available to download in PDF format from the website: www.raymarine.com/manuals.
-
Page 5: Table Of Contents
GNSS antenna location requirements .................. 18 EMC installation guidelines....................19 RF interference ........................19 Compass safe distance......................20 AIS700 dimensions......................20 3.2 Mounting the AIS700......................21 3.3 Mounting the antenna....................... 22 Pole mounting........................22 Surface mounting........................23 Chapter 4 Connections....................25 4.1 Connections overview ....................... - Page 6 Chapter 7 Technical specification................. 49 7.1 AIS700 technical specification ..................50 Chapter 8 Technical support ..................51 8.1 Raymarine product support and servicing ..............52 8.2 Learning resources ......................54 Chapter 9 Spares and accessories ................55 9.1 Spares and accessories ....................56 9.2 SeaTalk...
-
Page 7: Chapter 1 Important Information
• Raymarine® recommends certified installation by a Raymarine® approved installer. A certified installation qualifies for enhanced product warranty benefits. Contact your Raymarine® dealer for further details, and refer to the separate warranty document packed with your product. -
Page 8: Industry Canada
AIS disclaimer All information presented by the AIS700 is advisory only, as there is a risk of incomplete and erroneous information. By placing this product into service you acknowledge this and assume complete responsibility for any associated risks, and accordingly release Raymarine® and SRT Marine Systems plc from any and all claims arising from the use of the AIS service. -
Page 9: Product Disposal
However, Raymarine® cannot accept liability for any inaccuracies or omissions it may contain. In addition, our policy of continuous product improvement may change specifications without notice. As a result, Raymarine® cannot accept liability for any differences between the product and this document. Please check the Raymarine® website (www.raymarine.com/manuals) to ensure you have the most up-to-date version(s) of the documentation for your product. -
Page 11: Chapter 2 Document And Product Information
Chapter 2: Document and product information Chapter contents • 2.1 Product documentation on page 12 • 2.2 Applicable products on page 13 • 2.3 Compatible displays on page 14 • 2.4 Parts supplied on page 15 Document and product information... -
Page 12: Product Documentation
Documentation Description Part number 87326 AIS700 Installation instructions (This document) Installation of a AIS700 and connection to a wider system of marine electronics. GNSS antenna Mounting template 87225 Mounting diagram for the AIS700’s GNSS receiver. LightHouse™ 3 Operation instructions 81370 Operation instructions for compatible LightHouse™... -
Page 13: Applicable Products
MMSI number must be used to program your AIS700. Note: If a MMSI number is not entered, the AIS700 can only be used in Silent Mode and will operate as a receiver only. In the United States of America, the MMSI and Static Data must be entered only by a Raymarine®... -
Page 14: Compatible Displays
2.3 Compatible displays You can view AIS information received by your AIS700 on a compatible display. Your AIS700 is compatible with MFDs powered by the LightHouse™ 2 or LightHouse™ 3 operating system or multifunction instrument displays powered by the LightHouse™ operating system. -
Page 15: Parts Supplied
2.4 Parts supplied AIS700 2. GNSS antenna 3. Power/data cable 2m (6.56 ft) 4. VHF Radio cable 1m (3.28 ft) 5. DeviceNet to SeaTalkng ® adaptor cable 1m (3.28 ft) 6. GNSS antenna gasket GNSS antenna pole mount 8. Unit fixings (4 x No.8x19 self tapping screws) 9. -
Page 17: Chapter 3 Installation
Chapter 3: Installation Chapter contents • 3.1 Selecting a location on page 18 • 3.2 Mounting the AIS700 on page 21 • 3.3 Mounting the antenna on page 22 Installation... -
Page 18: Selecting A Location
• Power supply — Select a location that is as close as possible to the vessel’s DC power source. This will help to keep cable runs to a minimum. • Diagnostics — The AIS700 must be mounted in a location where any diagnostics LEDs are easily visible. -
Page 19: Emc Installation Guidelines
20 degrees above and below the radiating element. • The AIS700 is supplied from a separate battery from that used for engine start. This is important to prevent erratic behavior and data loss which can occur if the engine start does not have a separate battery. -
Page 20: Compass Safe Distance
Typically this distance should be at least 1 m (3 ft) in all directions. However for some smaller vessels it may not be possible to locate the AIS700 this far away from a compass. In this situation, when choosing the installation location, ensure that the compass is not affected by the AIS700 when it is in a powered state. -
Page 21: Mounting The Ais700
• Identified the relevant cable connections and the route that the cable will take. 1. Using the AIS700 as a guide, mark the location of the mounting holes on the mounting surface. 2. Drill holes for the mounting fixings using a drill with a suitable sized drill bit. -
Page 22: Mounting The Antenna
3.3 Mounting the antenna To mount the antenna: 1. Select a suitable location for the antenna, as described in the GNSS antenna location requirements section. Surface mounting Pole mounting 2. Mount your antenna using either the procedure, as appropriate. Pole mounting If you want to pole-mount the antenna, obtain a pole of suitable length with a 1 inch 14 TPI thread. -
Page 23: Surface Mounting
3. Screw the pole mount adaptor fully onto the pole and ensure it is secure. 4. Feed the antenna cable through the center of the pole mount adaptor and then down through the center of the mounting pole. 5. Ensuring you do not trap the cable, place the antenna on the pole mount adaptor so the screw holes are aligned, then secure the antenna with the 3 screws removed during step 2. - Page 24 Note: • The thumb nuts supplied with your product may differ slightly from those shown in the illustration. • Only use the studs and thumb nuts supplied with the antenna.
-
Page 25: Chapter 4 Connections
Chapter 4: Connections Chapter contents • 4.1 Connections overview on page 26 • 4.2 USB connection on page 27 • 4.3 Power connection on page 29 • 4.4 NMEA 2000 / SeaTalkng ® connection on page 33 • 4.5 NMEA 0183 connection on page 34 •... -
Page 26: Connections Overview
4.1 Connections overview Connection Connects to: Suitable cables: GNSS connection GNSS antenna GNSS antenna’s fitted cable Vessel RF ground only Grounding earth stud Refer to the Grounding connection section. To Antenna connection VHF antenna VHF antenna cable To VHF connection VHF Radio The supplied VHF radio cable... -
Page 27: Data Connections Matrix
As an example of how to use the table below, you can see that you can feed GNSS data into the AIS700 via a NMEA 0183 port configured for low baud rate (4,800), and then output it along with AIS data to the other NMEA 0183 port configured for high baud rate (38,400). - Page 28 Note: • The PC USB connection will provide power to the unit to enable configuration prior to installation. • Refer to for details on configuring your AIS700. Warning: USB device power Do NOT connect any device to the product’s USB connection that requires an...
-
Page 29: Power Connection
The information provided below is for guidance only, to help protect your product. It covers common vessel power arrangements, but does NOT cover every scenario. If you are unsure how to provide the correct level of protection, please consult an authorized Raymarine dealer or a suitably qualified professional marine electrician. - Page 30 Battery connection scenario A: suitable for a vessel with a common RF ground point. In this scenario, if your product’s power cable is supplied with a separate drain wire then it should be connected to the vessel’s common ground point. Battery connection scenario B: suitable for a vessel without a common grounding point.
- Page 31 Positive (+) bar Negative (-) bar Circuit breaker Fuse • In all cases, observe the recommended breaker / fuse ratings provided in the product’s documentation. Important: Be aware that the suitable fuse rating for the thermal breaker or fuse is dependent on the number of devices you are connecting.
-
Page 32: Grounding
• ABYC A-31 Battery chargers and Inverters • ABYC TE-4 Lightning Protection Grounding The AIS700 includes a dedicated grounding point to reduce potential damage caused by near lightning strikes. The Grounding point should be connected to your vessel’s RF ground. Do NOT connect to any point that is connected to your vessel’s 0V Negative battery terminal. -
Page 33: Nmea 2000 / Seatalkng ® Connection
4.4 NMEA 2000 / SeaTalkng ® connection The AIS700 can transmit data to devices connected on SeaTalkng ® or NMEA 2000 CAN bus networks. The AIS700 is connected using the DeviceNet connector located on the bottom of the unit. Use the supplied DeviceNet to SeaTalkng ® adaptor cable to connect your AIS700 to an available spur connection on a SeaTalkng ®... -
Page 34: Nmea 0183 Connection
• Do NOT connect the AIS700 to a PC using NMEA 0183 and USB connections at the same time. • If you are connecting to an AIS capable VHF Radio, you must disable the VHF Radio’s AIS function first. -
Page 35: Gps (Gnss) Antenna Connection
Note: Do NOT connect any other antenna than the one supplied with your AIS700. If the antenna is not connected or connected incorrectly then your AIS700 will operate in Silent mode, the AIS700 will not transmit but will still receive. -
Page 36: Vhf Antenna Connection
4.7 VHF antenna connection Connect a VHF antenna (not supplied) to your AIS700 using the VHF antenna connection. VHF antenna requirements The VHF antenna should meet the following requirements: Frequency band 156.025 MHz to 162.025 MHz should not exceed 2:1... -
Page 37: Vhf Radio Connection
For systems that include a VHF DSC radio you can share the VHF antenna by connecting your Radio’s VHF antenna connection to the VHF Radio connection on your AIS700 and then connecting your VHF antenna to the AIS700,s VHF antenna connection. -
Page 38: Silent Mode Switch Connection
4.9 Silent mode switch connection In Silent mode your AIS700 will stop transmitting position data and operate as a receiver only. Silent mode can be enabled using a connected MFD and by connecting a switch to the relevant wires on the Power/data cable. Please refer to your MFD’s operation instructions for details on enabling silent mode. -
Page 39: Chapter 5 Set Up
Chapter 5: Set up Chapter contents • 5.1 Configure before use on page 40 • 5.2 Obtain MMSI (Maritime Mobile Service Identity) number on page 41 • 5.3 Configuration on page 42 • 5.4 Software updates on page 44 Set up... -
Page 40: Configure Before Use
5.1 Configure before use Before use this product must be correctly configured using a personal computer and the supplied proAIS2 software. Incorrect configuration can cause erroneous data and prevent your product from transmitting. -
Page 41: Obtain Mmsi (Maritime Mobile Service Identity) Number
MMSI number must be used to program your AIS700. Note: If a MMSI number is not entered, the AIS700 can only be used in Silent Mode and will operate as a receiver only. In the United States of America, the MMSI and Static Data must be entered only by a Raymarine®... -
Page 42: Configuration
AIS700. If this information is incorrect please contact your Raymarine dealer. Areas outside of USA In areas outside of the USA, use the supplied proAIS2 PC software to configure your AIS700. Note: If configuring after installation ensure any MFDs on the same network are switched off first, otherwise you will not be able to correctly configure your AIS700. - Page 43 5. Ensure that the built-in GNSS receiver is not outputting sentences (i.e. ensure GGA, GLL and RMC boxes are not ticked). The GNSS receiver built-in to the AIS700 is intended to provide GNSS data to the AIS unit only, outputting this data can cause data conflicts. The ability to output these sentences is intended for diagnostics purposes only.
-
Page 44: Software Updates
5.4 Software updates You can update the software on the AIS700 using a Raymarine MFD running LightHouse™ 2 or LightHouse™ 3 operating system connected using SeaTalkng ® or NMEA 2000. Please refer to the operation instructions for your MFD / operating system for details on how to perform a software update. -
Page 45: Chapter 6 Troubleshooting
Chapter 6: Troubleshooting Chapter contents • 6.1 LED Status indicator on page 46 • 6.2 Troubleshooting on page 47 Troubleshooting... -
Page 46: Led Status Indicator
6.1 LED Status indicator The LED status indicator on the transceiver provides an indication of product status. Color Status Green Transceiver is operating normally and has transmitted at least 1 position report. Amber Transceiver is not transmitting. • Wait at least 30 minutes to check that a ‘Quiet time’ has not been requested by the local authority. -
Page 47: Troubleshooting
6.2 Troubleshooting Problem Action required No power • Check the power supply is properly connected. • Check the power supply voltage is correct (12 V dc or 24 V dc) • Check relevant fuses have not blown or circuit breaker has not tripped. AIS configuration, static •... -
Page 49: Chapter 7 Technical Specification
Chapter 7: Technical specification Chapter contents • 7.1 AIS700 technical specification on page 50 Technical specification... -
Page 50: Ais700 Technical Specification
7.1 AIS700 technical specification Power specification Supply voltage 12 V dc / 24 V dc Operating voltage range 9.6 V dc to 31.2 V dc Power consumption <3 W Fuse rating LEN (Load Equivalency Number) Environmental specification Operating temperature range -15°C to +55°C (+5°F to +131°F) -
Page 51: Chapter 8 Technical Support
Chapter 8: Technical support Chapter contents • 8.1 Raymarine product support and servicing on page 52 • 8.2 Learning resources on page 54 Technical support... -
Page 52: Raymarine Product Support And Servicing
You can obtain this product information using the menus within your product. Servicing and warranty Raymarine offers dedicated service departments for warranty, service, and repairs. Don’t forget to visit the Raymarine website to register your product for extended warranty benefits: http://www.raymarine.co.uk/display/?id=788. Telephone... - Page 53 Telephone Region E-mail Norway +47 692 64 600 support.no@raymarine.com (Raymarine subsidiary) Denmark +45 437 164 64 support.dk@raymarine.com (Raymarine subsidiary) Russia +7 495 788 info@mikstmarine.ru 0508 (Authorized Raymarine distributor) Technical support...
-
Page 54: Learning Resources
8.2 Learning resources Raymarine has produced a range of learning resources to help you get the most out of your products. Video tutorials Raymarine official channel on YouTube: • http://www.youtube.com/user/RaymarineInc Video Gallery: • http://www.raymarine.co.uk/view/?id=2679 Product Support videos: • http://www.raymarine.co.uk/view/?id=4952 Note: •... -
Page 55: Chapter 9 Spares And Accessories
Chapter 9: Spares and accessories Chapter contents • 9.1 Spares and accessories on page 56 • 9.2 SeaTalk ng® cables and accessories on page 57 Spares and accessories... -
Page 56: Spares And Accessories
9.1 Spares and accessories The following spares are available: Part number Description R62241 GNSS passive antenna with 10 m (32.8 ft) coaxial cable (for AIS transceivers only) R32162 2 m (6.56 ft) Power/data cable... -
Page 57: Seatalk Ng® Cables And Accessories
9.2 SeaTalk cables and accessories ng® SeaTalk cables and accessories for use with compatible products. Part No Description Notes Includes: T70134 SeaTalk starter kit • 1 x 5 Way connector (A06064) • 2 x Backbone terminator (A06031) • 1 x 3 m (9.8 ft) spur cable (A06040) •... - Page 58 Part No Description Notes A06032 SeaTalk Blanking plug R12112 ACU / SPX SeaTalk spur Connects an SPX course computer or an cable 0.3 m (1.0 ft) ACU to a SeaTalk backbone. A06047 SeaTalk (3 pin) to SeaTalk adaptor cable 0.4 m (1.3 ft) A22164 SeaTalk to SeaTalk spur 1 m...
-
Page 59: Appendix A Mmsi Regulatory Bodies And Application Submissions
Appendix A MMSI Regulatory bodies and application submissions Country Regulatory Body Weblinks Ofcom http://www.ofcom.org.uk FCC (www.fcc.gov) • www.boatus.com • www.seatow.com • www.usps4mmsi.com www.ic.gc.ca Canada Industry Canada Australia Australian Maritime Safety http://www.amsa.gov.au/mmsi/ Authority (AMSA) Holland Agentschap Telecom www.agentschaptelecom.nl Belgium Belgisch Instituut www.bipt.be voor Postdiensten en Telecommunicatie... -
Page 60: Appendix B Nmea 0183 Supported Sentences
Appendix B NMEA 0183 supported sentences The AIS700 supports the following NMEA 0183 sentences Sentence Description Transmit Receive • ABM/BBM acknowledgement • Addressed binary message AIS channel management assignment • AIS channel management information source • • AIS query Acknowledge alarm •... -
Page 61: Appendix C Nmea 2000 Supported Pgns
Appendix C NMEA 2000 supported PGNs The AIS700 supports the following PGNs. Description Transmit Receive • • 59392 ISO Acknowledgement • • 59904 ISO Request 60928 ISO Address Claim • • • • 65240 ISO Commanded Address • • 126208 Request group function •... -
Page 62: Appendix D Ais Overview
Appendix D AIS overview Your AIS700 uses digital radio signals to exchange 'real-time' information between vessels, shore based stations, or aids to navigation (AToNs) on dedicated VHF frequencies. This information is used to identify and track vessels in the surrounding area and to provide fast, automatic and accurate collision avoidance data. - Page 63 Data Receiver (receive) Transceiver (transmit) Transceiver (receive) Gyro heading Yes* Rate of turn Navigational status Safety message *Class B transceivers do not transmit a Gyro heading unless the transceiver is receiving an NMEA HDT sentence from an external source. Data reporting intervals AIS information is classed as either static or dynamic.
- Page 65 Index Baud rate ............. 34 Multiplexed ............34 Ports..............34 wire colors ............34 Applicable products ..........13 Power cable extension ..........31 Compass safe distance .......... 20 Power supply............29 Compatible displays ..........14 proAIS2 ..............43 Configuration............43 Product support............52 Connection Battery ..............29 DeviceNet ............
- Page 68 Raymarine Marine House, Cartwright Drive, Fareham, Hampshire. PO15 5RJ. United Kingdom. Tel: +44 (0)1329 246 700 www.raymarine.com a brand by...
